OFNA Racing Nexx8 User Manual
Page 30
73
WASH THE INSIDE OF THE BODY
72
MAKING HOLES AND TRIMMING THE BODY
71
ASSEMBLY OF THE WING
94041
3mm Nylon Nut
.....x2
94004
3x12mm
Hex Screw
.....x2
Step 1
Step 2
3x12mm
40542
3mm
24mm
24mm
16015 WHITE (STOCK)
16016 YELLOW
16017 RED
16018 BLACK
16019 ORANGE

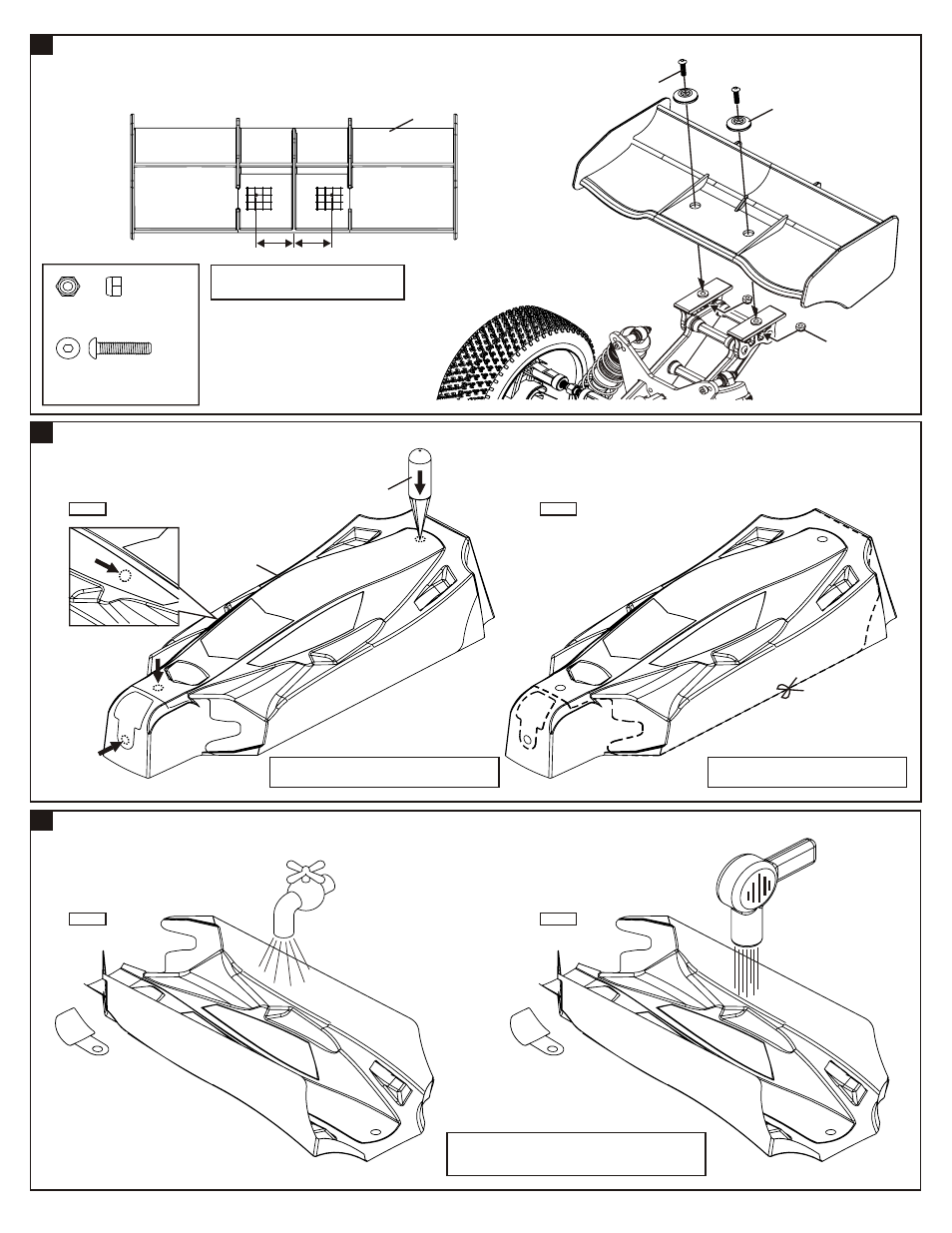

Drill two 7mm holes for mounting.
41208
10806 Black
10807 Blue
Body Reamer
(not included)
Make 8mm holes on the body shell as shown.
Cut the body shelll as shown.
Wash the inside of the body shell with mild detergent,
and then rinse and dry thoroughly.
Step 1
Step 2
DRY WITH A CLEAN TOWEL OR HAIR DRYER
