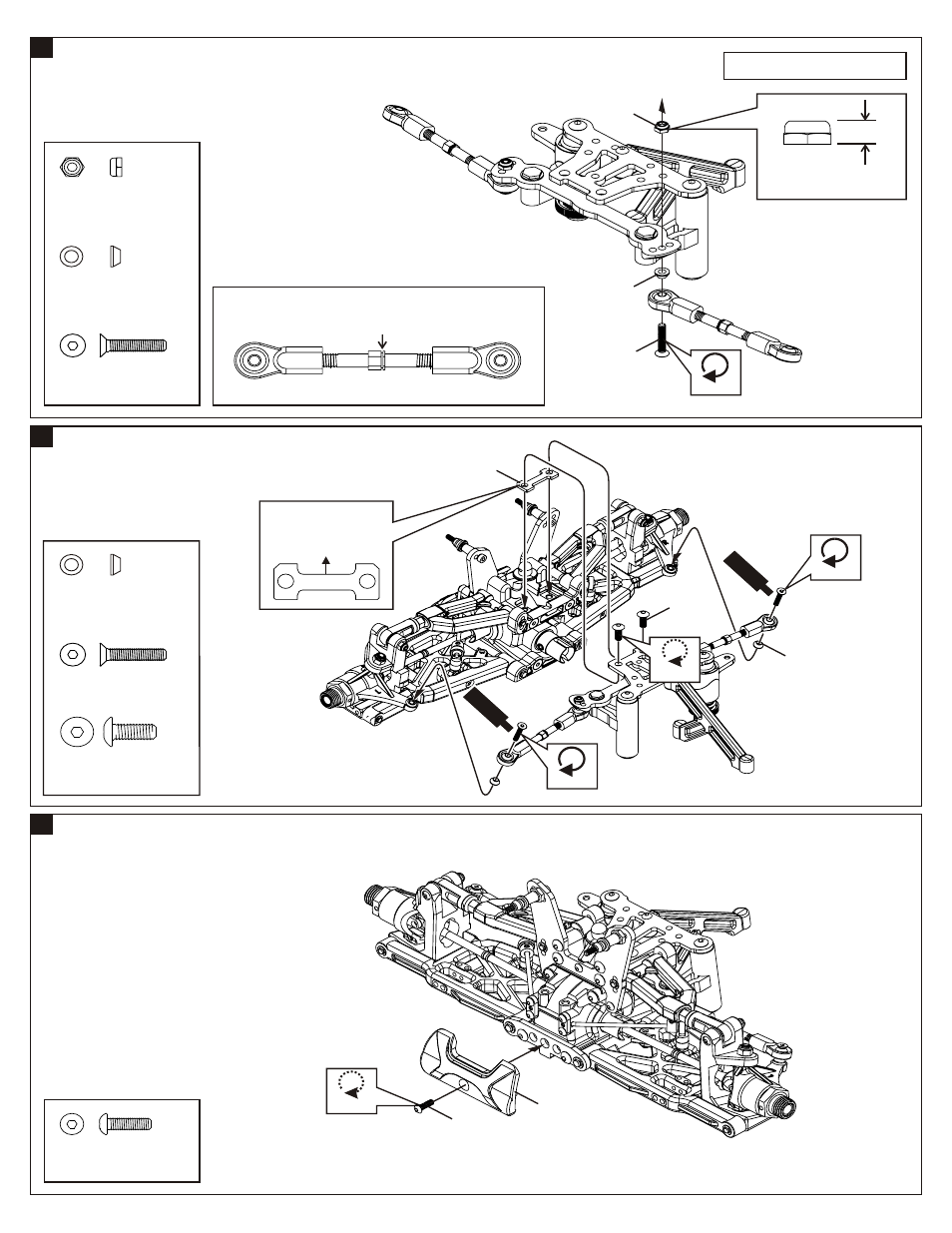

19

20

ASSEMBLY OF THE SERVO SAVER ONTO
THE FRONT GEAR BOX

ASSEMBLY OF THE FRONT BUMPER ONTO
THE FRONT GEAR CASE

18

ASSEMBLY OF THE STEERING TIE-ROD

94021
3x15mm
Flat Head Hex Screw

.....x2

40039
3mm
Tapered Washer
(Alum.)

.....x2

.....x2

40548
3mm
Nylon Nut
(Thin Type)

Assemble both left and right sides.

40548

40039

3x15mm

Tighten

94005
3x15mm
Flat Head Hex Screw

.....x2

40039
3mm
Tapered Washer
(Alum.)

.....x2

94009
4x10mm
Hex Screw

.....x4

40548
3mm Nylon Nut
(Thin Type)

Tighten

40533

4x10mm

3x15mm

40039

Screw

Cement

Screw

Cement

Tighten

.....x1

94003
3x10mm
Hex Screw

Do Not

Over Tighten

3x10mm

40540

Front

Put the front plate spacer
in the right direction.

Do Not

Over Tighten

Face the anti-clockwise mark to the gear case and
make oposite direction for easy adjustment.

LEFT SIDE

Step detail

3.25mm
