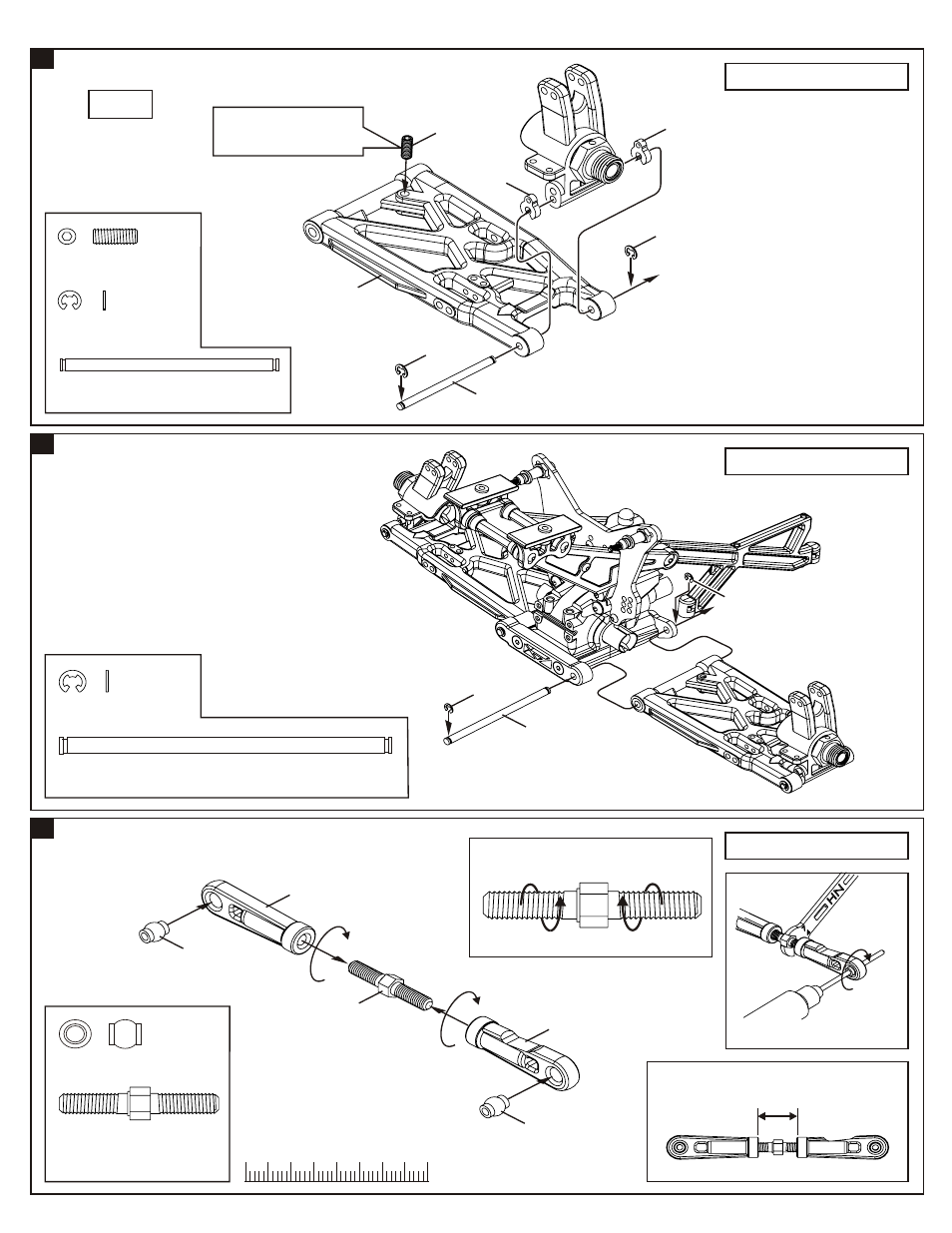

ASSEMBLY OF THE REAR WHEEL HUBS

90020
2.5mm E-Ring

.....x4

36870
4x10mm
Set Screw

.....x2

40525
3x48.1mm Arm Shaft

.....x2

4x10mm

40540

2.5mm

40525 (3x48.1mm)

A 4x10mm set screw is used
to adjust the droop.

RIGHT SIDE

Assemble both left and right sides.

40540

40535

ASSEMBLY OF THE REAR SUSPENSION ARMS

Assemble both left and right sides.

40524
4x73mm Arm Shaft

.....x2

90021
3mm E-Ring

.....x4

40524 (3x73mm)

3mm

ASSEMBLY OF THE REAR SUSPENSION UPPER ARMS

Assemble both left and right sides.

40540

36860
5x35mm
Turnbuckle

.....x2

36850
7mm Ball

.....x4

Step detail

Use tools to tighten as shown.

Approx. 30mm

36860

36850

Step detail

Tighten

Note the locking direction!
