OFNA Racing Nexx8 User Manual
Page 24
53
54

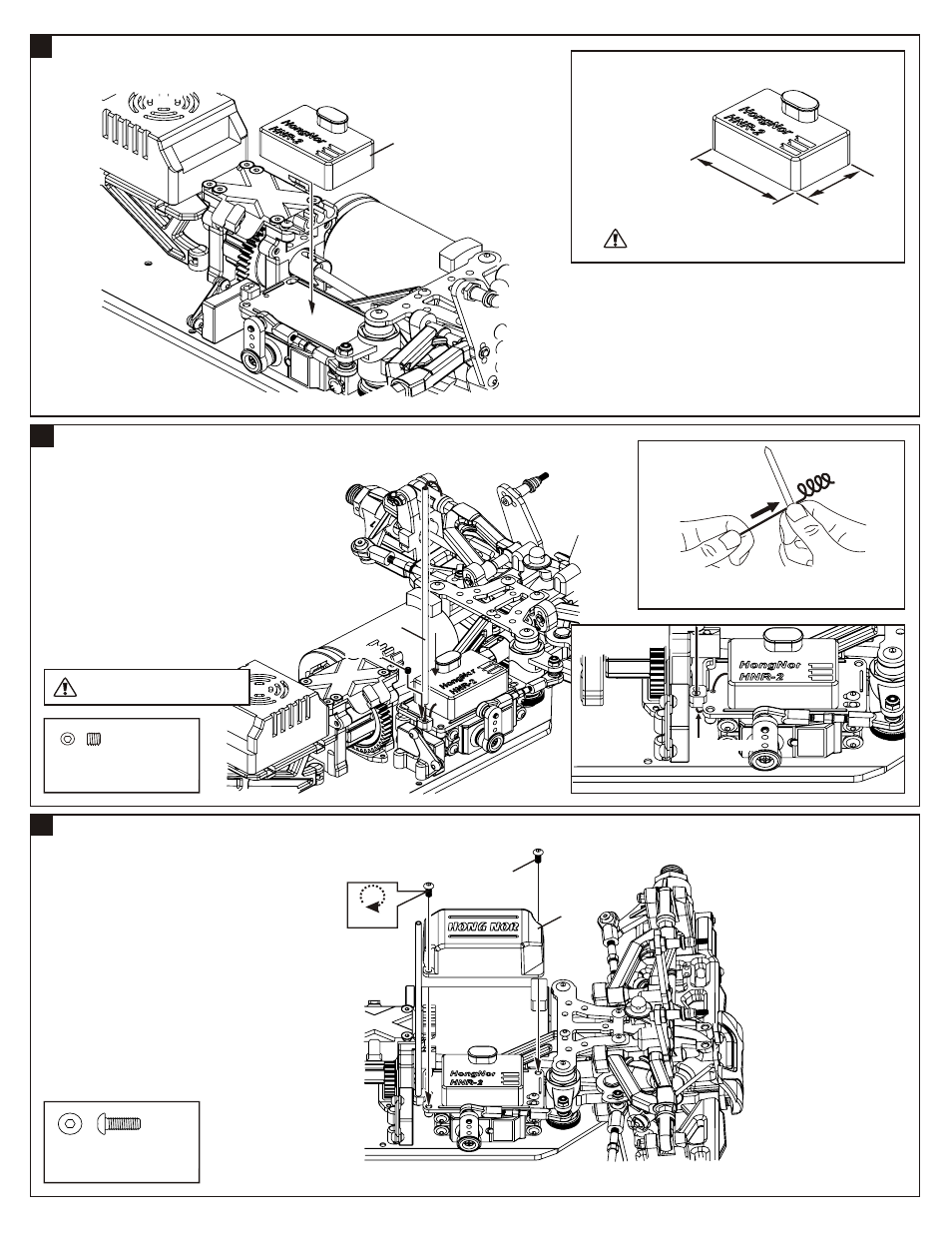

THE RECEIVER ANTENNA INSTALLATION
ASSEMBLY OF THE RECEIVER INTO RADIO CASE
RECEIVER
(not included)
.....x1
94033
3x3mm
Set Screw
3x3mm
30560
Step detail
Antenna Wire
94002
3x8mm
Hex Screw
.....x2
3x8mm
41206
Do Not
Over Tighten
55
ASSEMBLY OF THE RADIO CASE COVER
ONTO THE RECEIVER MOUNT
Step detail
Use a screwdriver to straighten the antenna wire so
it is easier to insert into antenna tube.
Do not cut or shorten antenna wire.
Note the size of receiver during purchase.
X
3m
m
MA
. 4
MA
. 2
8.
mm
X
8
Please carefully read the Receiver Instruction Manuals
before installation.
