Page 8

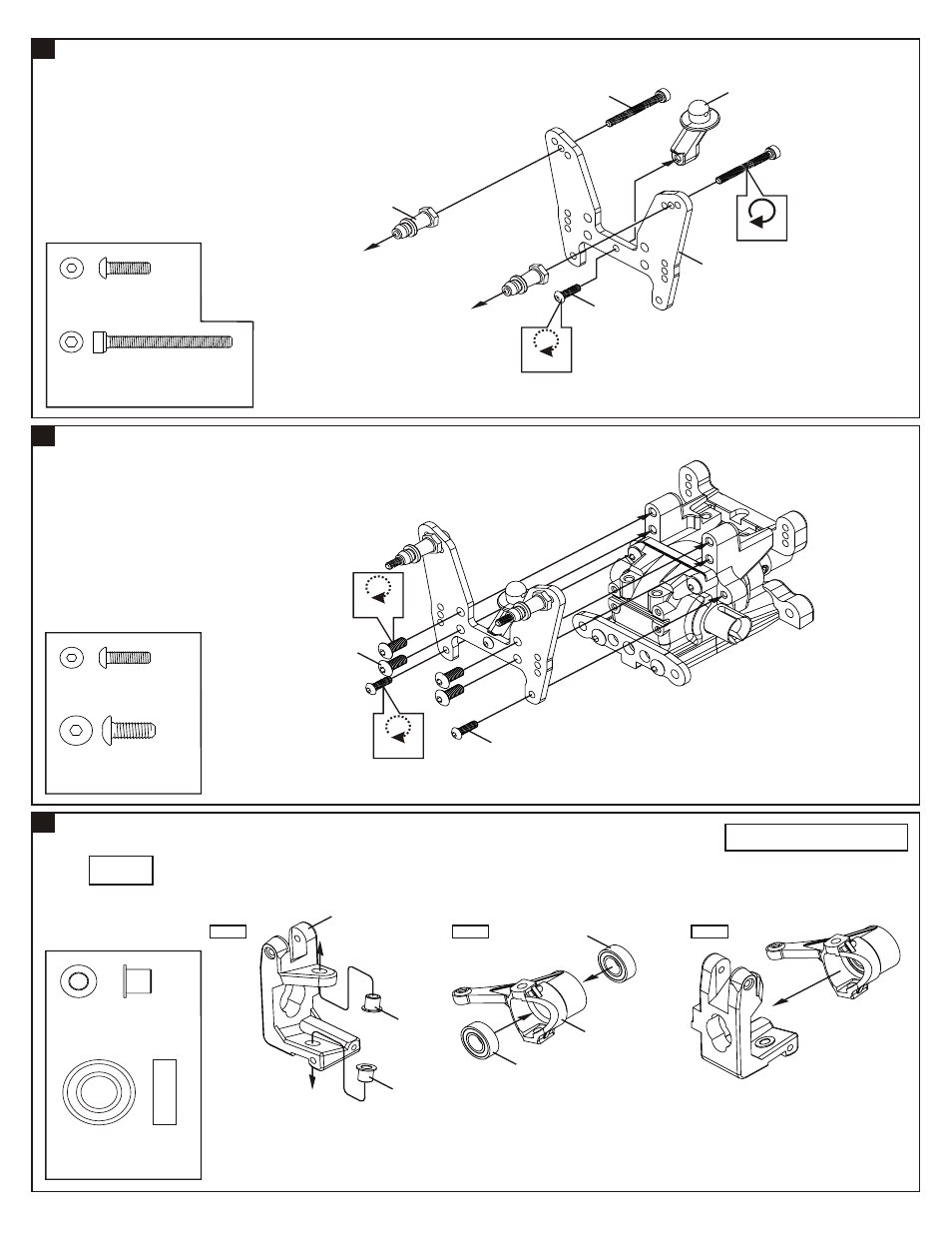

ASSEMBLY OF THE FRONT SHOCK TOWER

94003
3x10mm
Hex Screw

.....x1

41009
3x28mm
Cap Screw

.....x2

94009
4x10mm
Hex Screw

.....x4

94003
3x10mm
Hex Screw

.....x2

41010

41009

40502

41205

3x10mm

4x10mm

Do Not
Over Tighten

Tighten

40527
Knuckle Arm
Bushing

.....x4

36053
8x16x5mm
Ball Bearing

.....x4

ASSEMBLY OF THE STEERING KNUCKLE

Step 3

Step 2

Step 1

Assemble both left and right sides.

40527

40536

36053

40520

40527

LEFT SIDE
