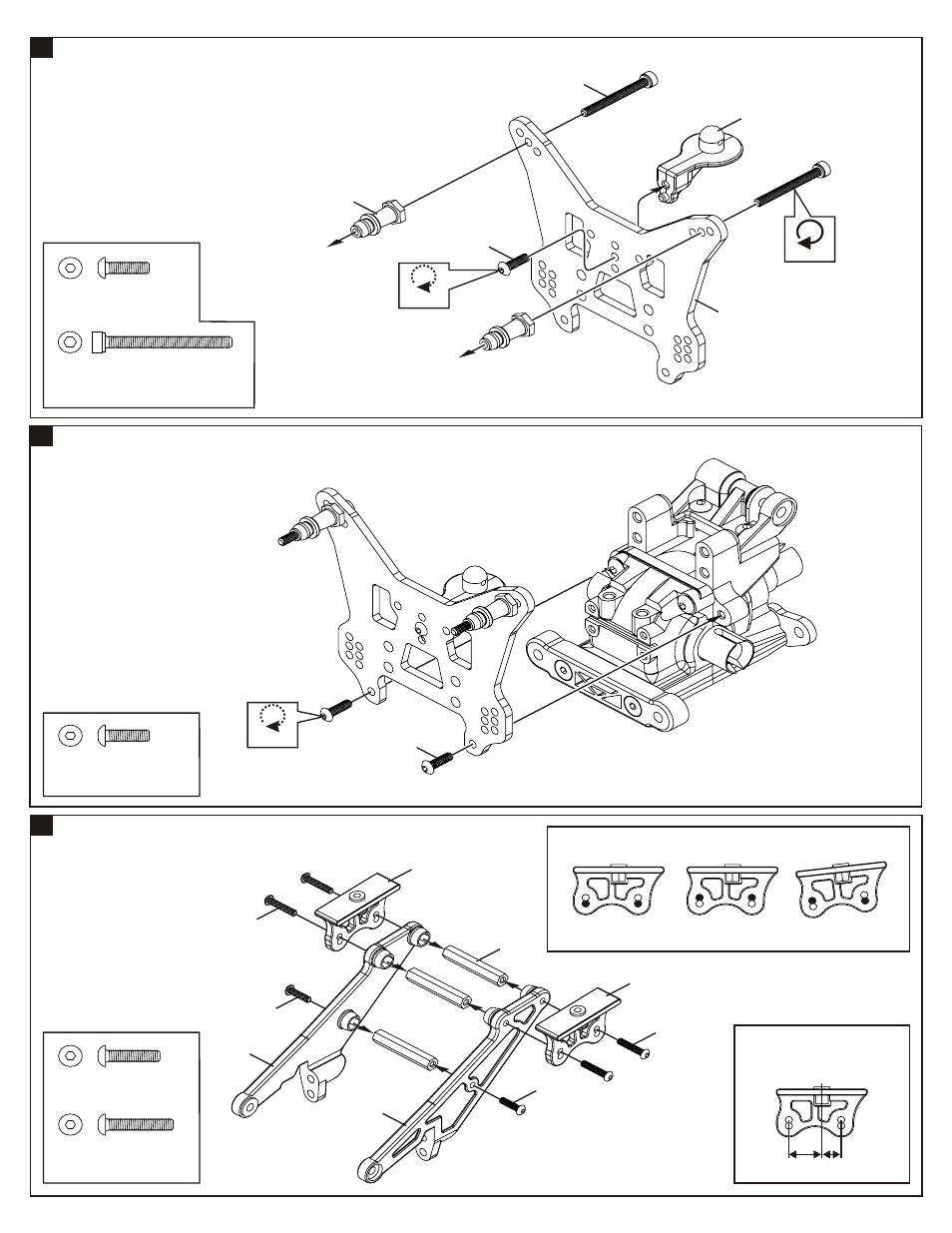

25

ASSEMBLY OF THE REAR SHOCK TOWER

24

ASSEMBLY OF THE REAR SHOCK TOWER

26

ASSEMBLY OF THE WING MOUNT

94003
3x10mm
Hex Screw

.....x1

41009
3x28mm
Cap Screw

.....x2

41010

41009

40503

41205

3x10mm

Do Not
Over Tighten

Tighten

94003
3x10mm
Hex Screw

.....x2

3x10mm

Do Not

Over Tighten

94005
3x15mm
Hex Screw

.....x4

94004
3x12mm
Hex Screw

.....x2

40542

40542

40542

40542

40542

3x15mm

3x12mm

3x15mm

3x12mm

The angle of the wing mount can become more aggressive or higher for more
traction.

High Position

Low Position

Big Angle

Long

Short

Make both side wing mounts
in the same position.
