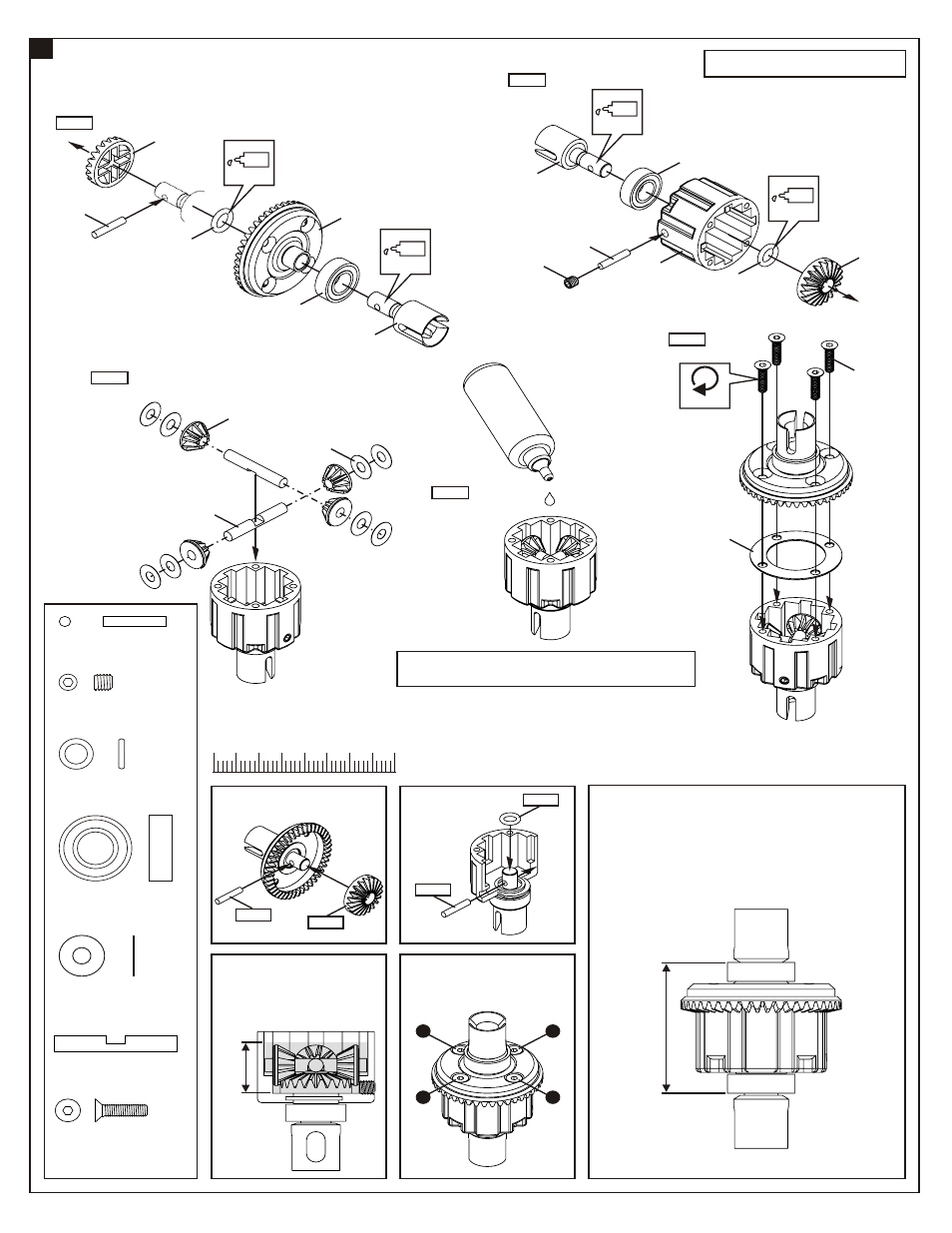

ASSEMBLY OF THE FRONT AND REAR DIFF.

Build two differentials for front and rear.

Oil

40513

40010

40009

40517(43T)

Oil

36053

40514

Oil

40514

36053

40010

40513

40009

40538

Step 2

Step 1

30776
4x10x0.15mm
Washer

.....x16

30773
4mm Cross Pin

.....x4

36053
8x16x5mm
Ball Bearing

94034
4x4mm
Set Screw

40010
2.5x13.8mm Pin

.....x4

.....x2

40009
P6 O-Ring

94020
3x12mm
Flat Head
Hex Screw

.....x8

30773

40513

30776

Step 3

Step 5

40011

3x12mm

Step 1

Step 2

Step detail

Step 1

Step 2

Step detail

Repeat tightening in this order

After assembly the differential should be 34.5~34.6mm
measured from the ends of the installed ball-bearings.
If differential is longer, hold the bevel gear and
retighten the 4 screws.

Step 4

4x4mm

Tighten

•Use the Diff. Oil #5000 for front and #1000 for rear.

80%

Fill the diff oil just level with the
top of the satellite gears.

•Use A silver Sharpie to mark diff. Case front and rear.

Step detail
