60 assembly of the shocks – OFNA Racing Nexx8 User Manual

Page 26

Assemble both left and right sides.

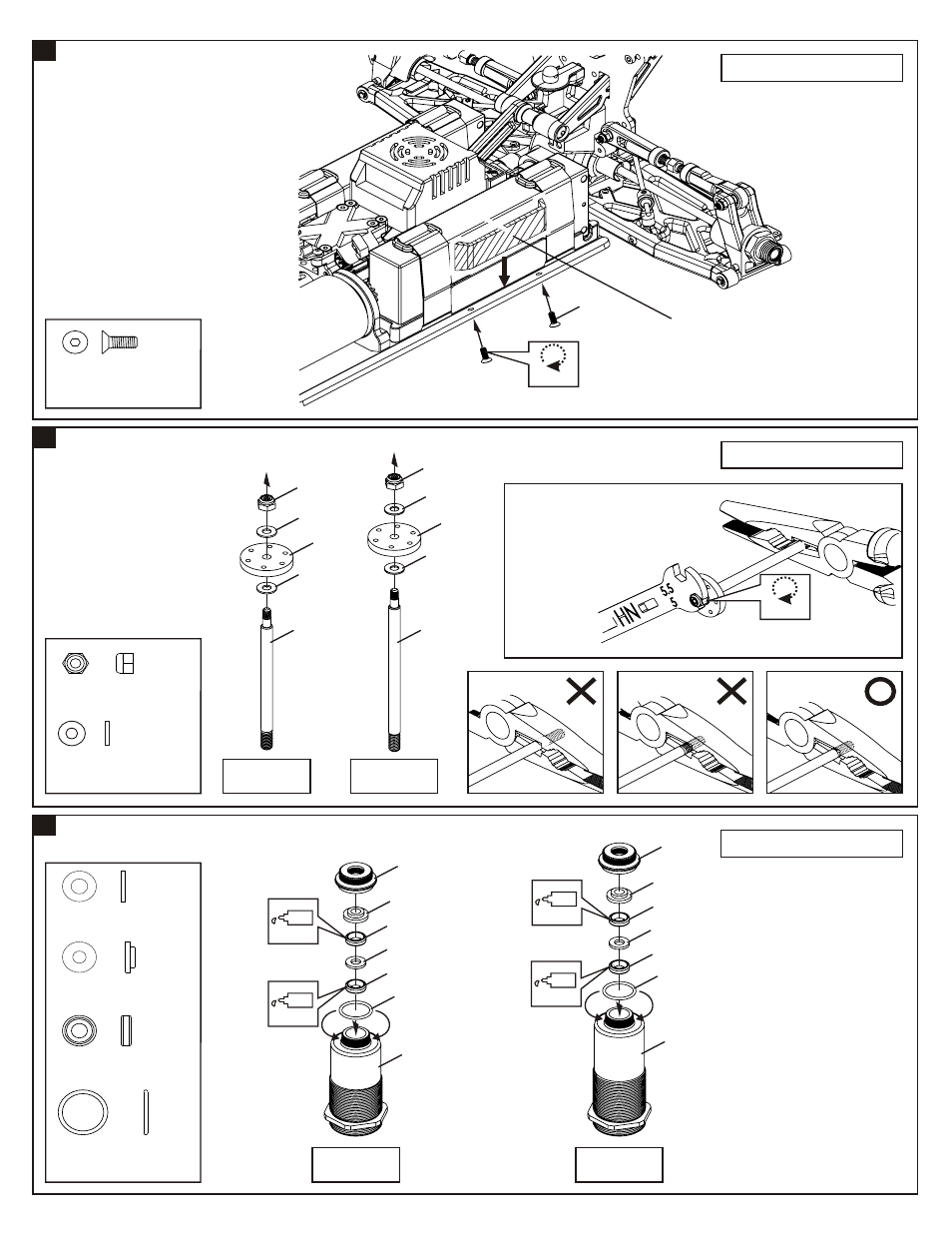

ASSEMBLY OF THE SIDE BODY MOUNT
ONTO CHASSIS

ASSEMBLY OF THE SHOCKS

Assemble both left and right sides.

41019
P10 O-RING

.....x4

41012
3.5mm O-Ring

.....x8

REAR SHOCK

FRONT SHOCK

41012
2mm Washer

.....x4

41012
1mm Washer

.....x4

41003 (SHORT)

41004 (LONG)

41019

41012

41012(1mm)

41012

41012(2mm)

41008

41012(2mm)

41012

41012(1mm)

41012

41019

Oil

Assemble both left and right sides.

ASSEMBLY OF THE SHOCKS

REAR SHOCK

FRONT SHOCK

Step detail

Use tools to tighten as shown.

94059
2.6x6x0.5mm
Washer

.....x4

40060

2.6x6x0.5mm

41011

40054 (SHORT)

40055 (LONG)

2.6x6x0.5mm

41011

.....x2

40060
2.6mm
Nylon Nut

Do Not

Over Tighten

•Hold the shock rod at its thread
with side needle nosed pliers.

•Be careful not to damage or scar
the shock shaft.

94017
3x8mm
Flat Head
Hex Screw

.....x4

3x8mm

41207 SIDE BODY MOUNT TO BE
USE WITH VELCRO. SEE
STEP 75 FOR REFERENCE.

Do Not

Over Tighten
