Chapter 6: Packet-over-SONET Configuration Guide
Example Configurations
This section shows example configurations for PoS links.
APS PoS Links Between SSRs

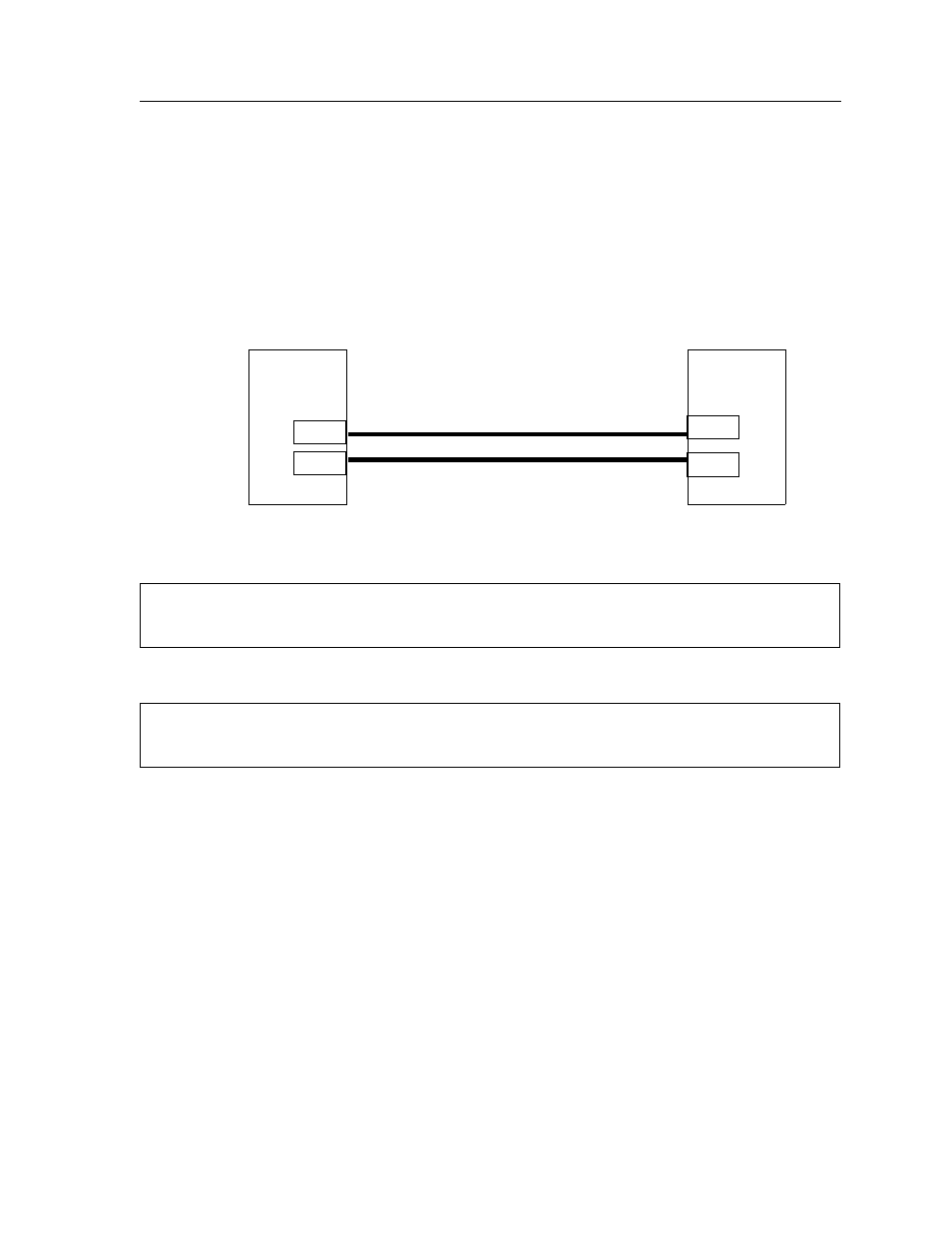

The following example shows APS PoS links between two SSRs, router A and router B.
The following is the configuration for router A:
The following is the configuration for router B:
Router
A
Router
B
so.7.1
so.7.2
so.13.1
so.13.2
(working)
(protecting)
pos21
20.11.11.21/24 pos11
20.11.11.20/24
interface create ip pos21 address-netmask 20.11.11.21/24 peer-address 20.11.11.20
type point-to-point port so.7.1
sonet set so.7.1 protection 1+1 protected-by so.7.2
interface create ip pos11 address-netmask 20.11.11.20/24 peer-address 20.11.11.21
type point-to-point port so.13.1
sonet set so.13.1 protection 1+1 protected-by so.13.2
