Chapter 4: SmartTRUNK Configuration Guide
38 SmartSwitch Router User Reference Manual
Example Configurations

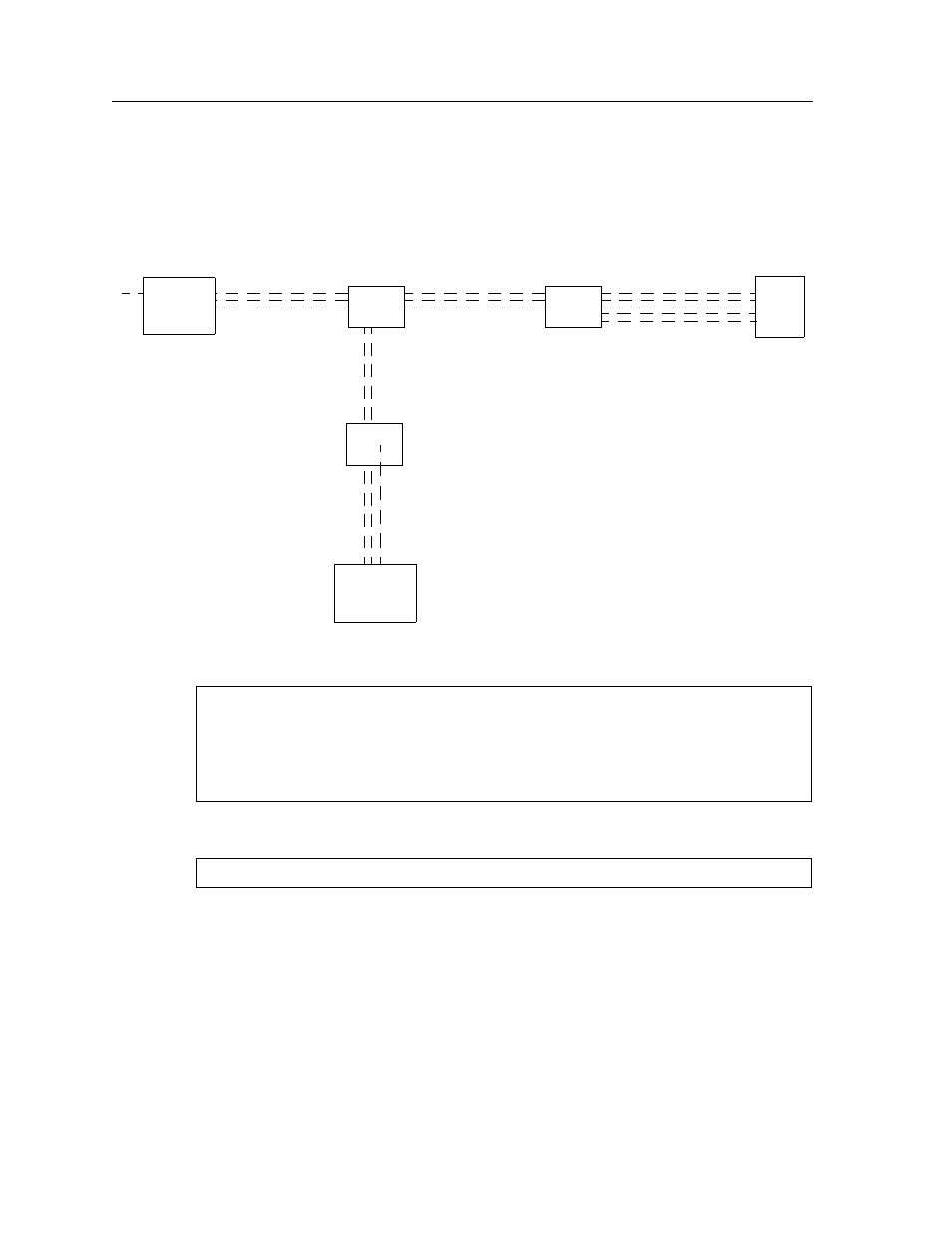

The following shows a network design based on SmartTRUNKs. R1 is an SSR operating as
a router, while S1 and S2 are SSRs operating as switches.
The following is the configuration for the Cisco 7500 router:
The following is the configuration for the Cisco Catalyst 5K switch:
Cisco
7500
Router
Router
R1
Cisco
Catalyst
5K Switch
Server
Switch
S2
10.1.1.1/24
st.1 st.2 st.4
st.3
st.5
10.1.1.2/24
to-cisco 11.1.1.2/24
to-s1
Switch
S1
12.1.1.2/24
to-s2
interface port-channel 1
ip address 10.1.1.1 255.255.255.0
ip route-cache distributed
interface fasteth 0/0
no ip address
channel-group 1
set port channel 3/1-2 on
