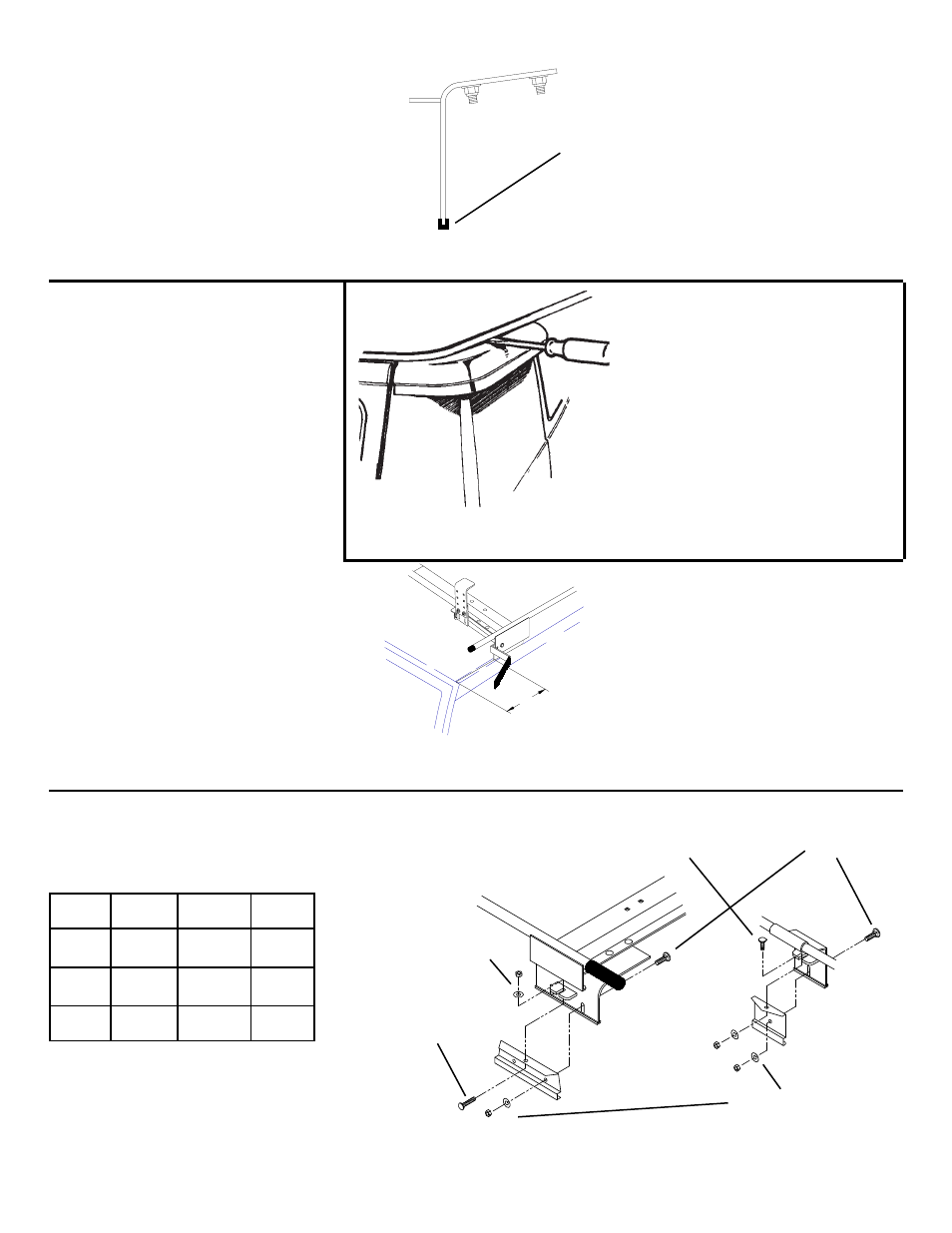

Figure 6. Mounting Cushion Installation
3. Mounting Cushion Installation
4. Adjust the stands to the approxi-
mate gutter width dimensions below.
With the help of others, lift the rack
and position it on the vehicle. For
proper clamping on all vans except
the 1996 and newer Chevy GMT600/
GMC Savana, locate the stands as
close as possible to the roof. Make
sure the Crossmembers are centered
between the stands before tightening
the Crossmember/Socket bolt.
5/16-18 x 7/8"
Carriage Bolt
5/16-18 x 2"
Carriage Bolt
5/16-18 Carriage Bolt
GM van use 1-1/4" long bolt
Ford or Dodge van use 2" long bolt.
5-16" Flat Washer and
5/16"-18 Nylon Lock Nut
Figure 9. Clamp Installation
NOTE: If van has a sliding door
with a guard, it may be necessary
to remove and notch the guard to
accept the mounting clamp. If the
guard is spot welded, simply place
the blade of a common screwdriver
at the weld and strike with a ham-
mer. This will give the guard flex-
ibility to insert the Clamp
under the rain gutter.
Mounting Cushion (cut from bulk)
cut to length and wrapped around
each Stand and Center Support.
Figure 7. Breaking spot weld
Approximate Gutter Widths
Front Center Rear
Ford 64-1/4" 64-1/4" 62-3/4"
Dodge 65-1/4" 64-7/8" 64-1/2"
GM* 66-1/8" 66-3/4" 64-3/4"
GM** 58-3/4" 58-3/4" 57-3/8"
* - 1996 and older GM vans
** - 1996 and newer Chevy GMT600/
GMC Savana vans
Figure 8. Rear Stand Location
8"
MAX
8" Max dimension is from the rear
edge of the rear Stand to the rear
of the gutter.
5
5-16" Flat Washer and
5/16"-18 Nylon Lock Nut
