NOTE: If installing a Model 233, as-
semble it at this time, and use it in
place of the Center Supports.
4
2. Rack Assembly

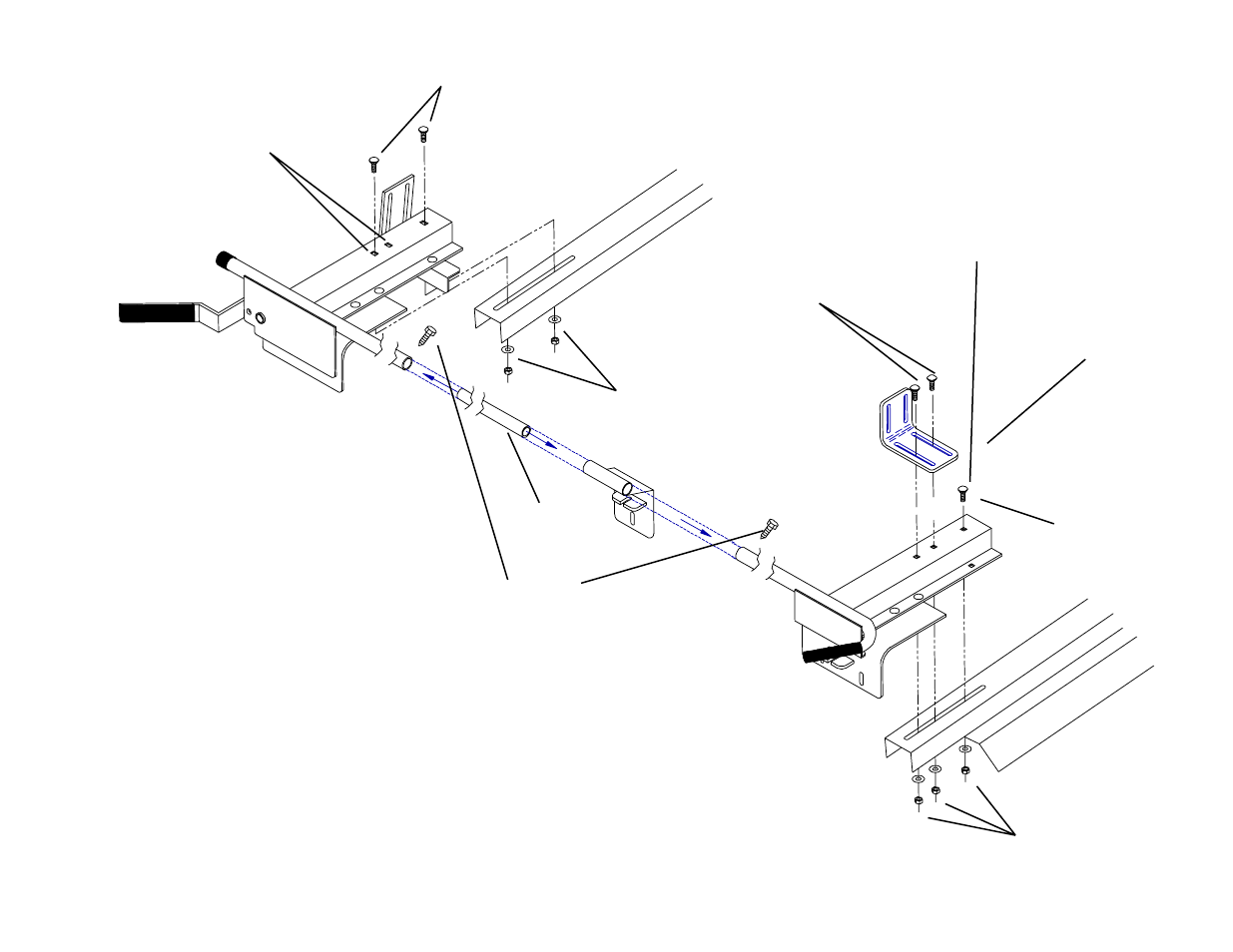

Figure 5. Side Rail / Crossmember / Center Rail / Center Support Assembly
Align Center Rail holes, with holes
in both front and rear rails, then
fasten (repeat on opposite side).
Use a drop of Loctite ® on the
1/4-20 x 1/2" Taptite screws.
Loosely tighten fully
seated Crossmembers.
Repeat the procedure
on the opposite side.
5/16" Flat Washer and
5/16"-18 Nylon Lock Nut
5/16-18 x 7/8"
Carriage Bolt
1996 and newer Chevy GMT 600/GMC
Savana use these two holes
(Ford/Dodge mounting holes
shown in use).
Not used on Chevy
GMT600/GMC
Savana vans, use
only two bolts
through the Bottom
Adj. Angle.
5/16" Flat Washer and
5/16"-18 Nylon Lock Nut
5/16-18 x 1-1/4"
Carriage Bolt
5/16-18 x 7/8"
Carriage Bolt
Center Rail
NOTE:
See Figure 11.
before assembly
NOTE:
Holes have been predrilled in the rails to allow for
the adjustment of the rack to the length that best fits
what is needed. (80-1/16", 93-5/16", 105-9/16")
These dimensions are center to center on the stands.
