WEATHER GUARD Model 236-3-01 Quick Clamp Rack, Full-Size, Curb Side - Manual (Page 3)

CAUTION
To keep debris out of your
eyes when drilling, always
wear protective eyewear.
Center the Airfoil side to side on the
Crossmember. Mark the center
mounting hole and drill a 5/16" hole.
1/4-20 Nylon
Lock Nut
1/4-20 x 3/4"
Hex Hd. Bolt

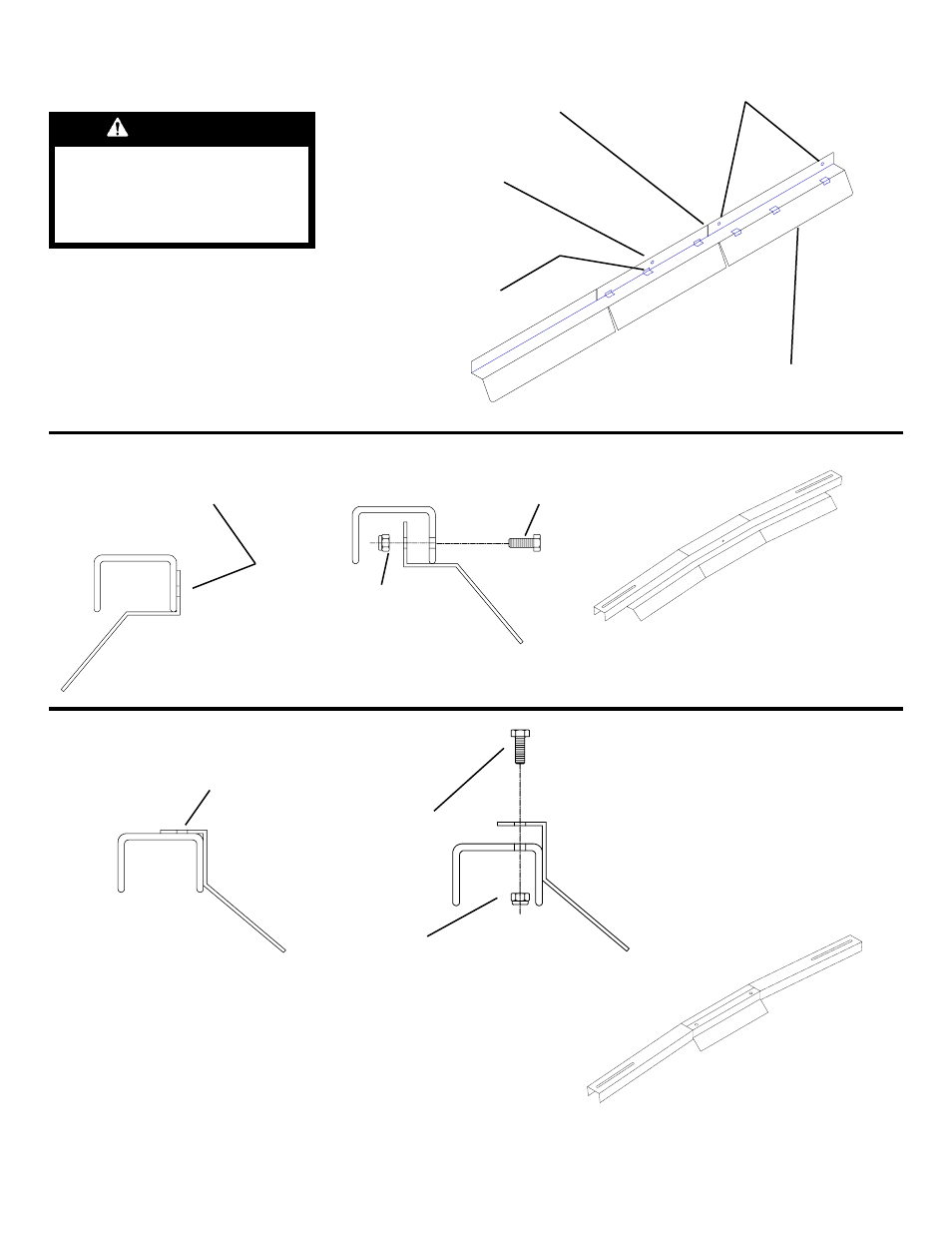

Figure 3. Ford / GM Front Crossmember to Airfoil marking/fastening
Use this portion for Dodge vans only.
All other vans use entire Airfoil.
Cut off Dodge Airfoil
straight through notch
and remove burrs
Figure 4. Dodge Ram Front Crossmember Airfoil marking/fastening
Ford / GM mounting
this hole only
3
Center the Airfoil side to side on the
Crossmember. Mark the mounting
holes on the top and drill the 5/16"
holes.
Dodge mounting holes
1/4-20 Nylon
Lock Nut
1/4-20 x 3/4"
Hex Hd. Bolt
1. Airfoil to Front Crossmember Assembly
Airfoil is to face forward.
Airfoil is to face forward.
Figure 2. Airfoil
If mounting a Conduit Carrier
remove appropriate knockouts for "U"
Clamp mounting clearance.
