WEATHER GUARD Model 96201-3-01 Window Bulkhead, Mid/High-Roof, Nissan NV User Manual
Page 5
5

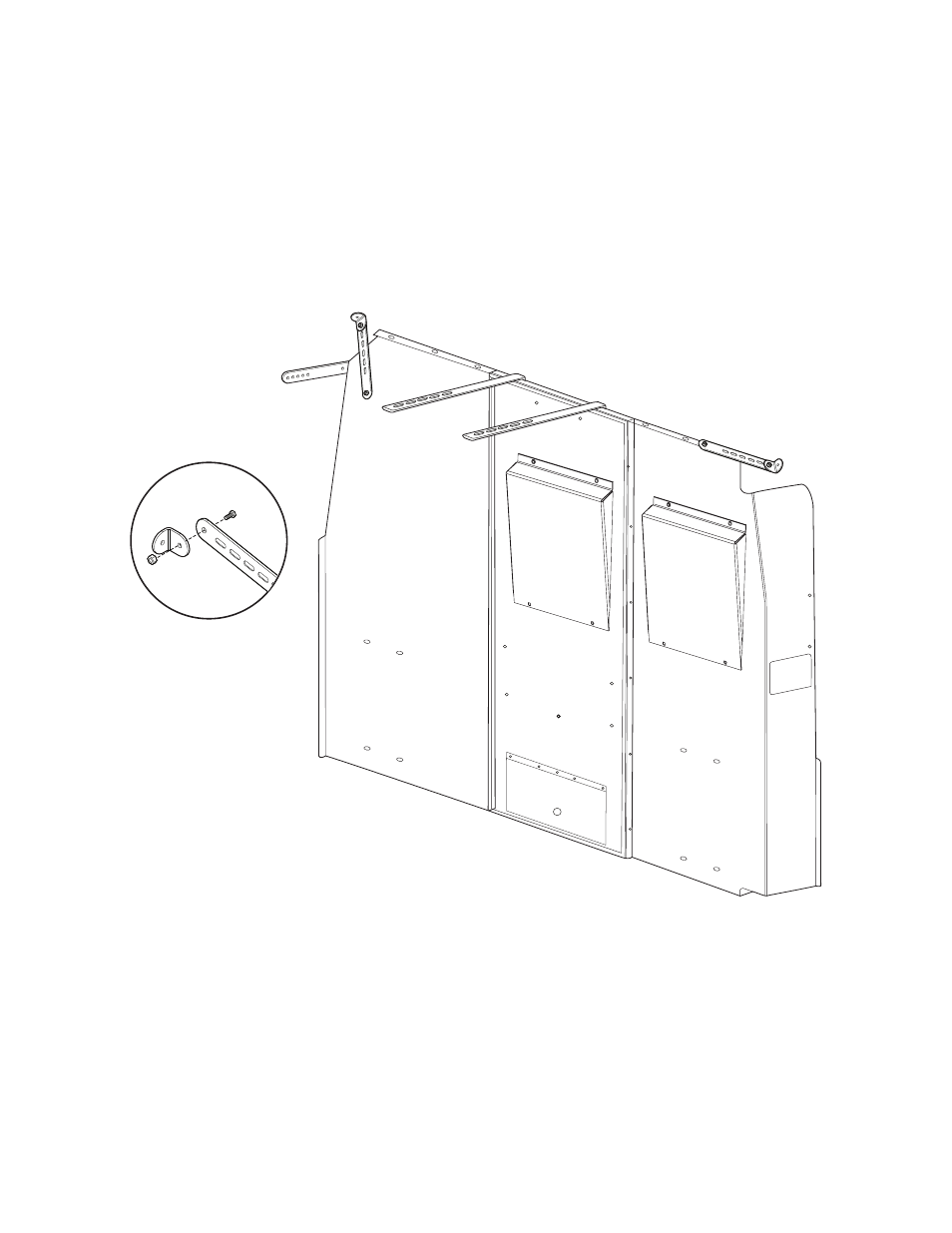

STEP 7: Position assembled Bulkhead in place ensuring that it is vertically level. Align holes in floor and
roof mounting brackets over pre-inserted mounting nuts in the van roof and floor. Using a carpenter’s
square, square the Bulkhead to the floor and mark hole locations for:
• Driver Side Attachment Brackets (where brackets meet wall rib)
Once all holes are marked, move assembly out of position, giving yourself ample room to work on the floor
hole locations.
STEP 6: Assemble two mounting straps by attaching a mounting strap to a mounting angle with a 1/4-20 x
3/4" washer head bolt and a lock nut. Mount one strap to the driver's side and passenger's side panels.
NOTE: Use holes that best align with wall or wall rib for your van model.
Attach the Driver Side Attachment Brackets to Driver Side Panel using two (2) 1/4-20 x 5/8" Hex Head Bolt
and 1/4-20 Nylon Lock Nut.
Attach the Passenger Side Panel Mounting Bracket to the Passenger Side Panel using two (2) 1/4-20 x
5/8" Hex Head Bolts and 1/4-20 Nylon Lock Nuts.
