WEATHER GUARD Model 96201-3-01 Window Bulkhead, Mid/High-Roof, Nissan NV User Manual
Page 3
3
ASSEMBLY INSTRUCTIONS

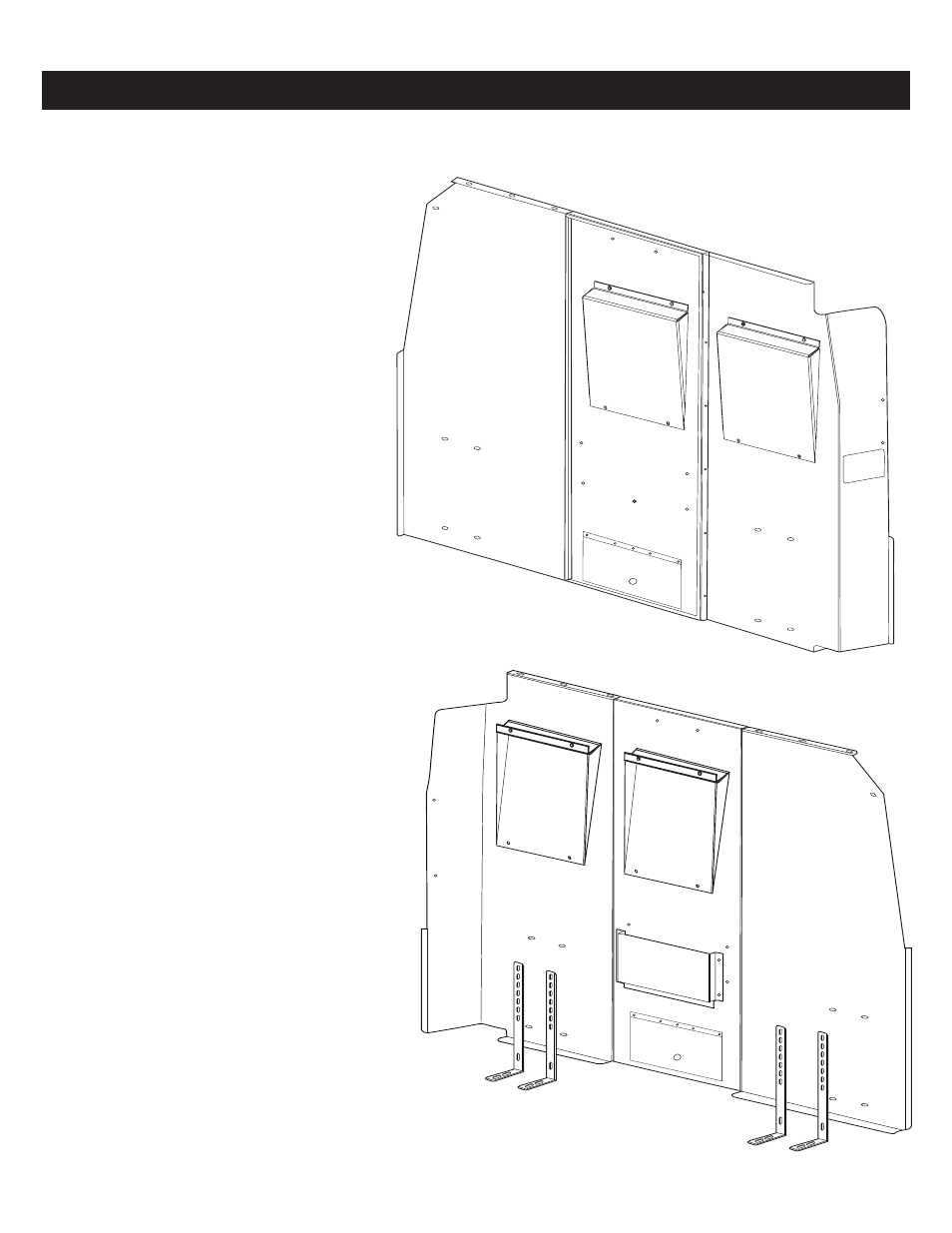

STEP 4: Tilt assembled Bulkhead away
from van roof and mount four (4) mounting
cab brackets to the passenger side of the
bulkhead. Use a 1x4" pad between each set
of mounting bolts to reduce noise. Using four
(4) 1/4-20 x 5/8" Hex Head Bolts and 1/4-20
Nylon Lock Nuts, attach brackets to panels.
Leave fasteners loose for easier adjustment
during final installation.
STEP 3: Attach the Passenger Side Panel to
Center Panel using six (6) 1/4-20 x 5/8" Hex Head
Bolts and 1/4-20 Nylon Lock Nuts.
With the help of a second person, place
assembled Bulkhead inside the van in the
approximate mounting location.
