- 9 -

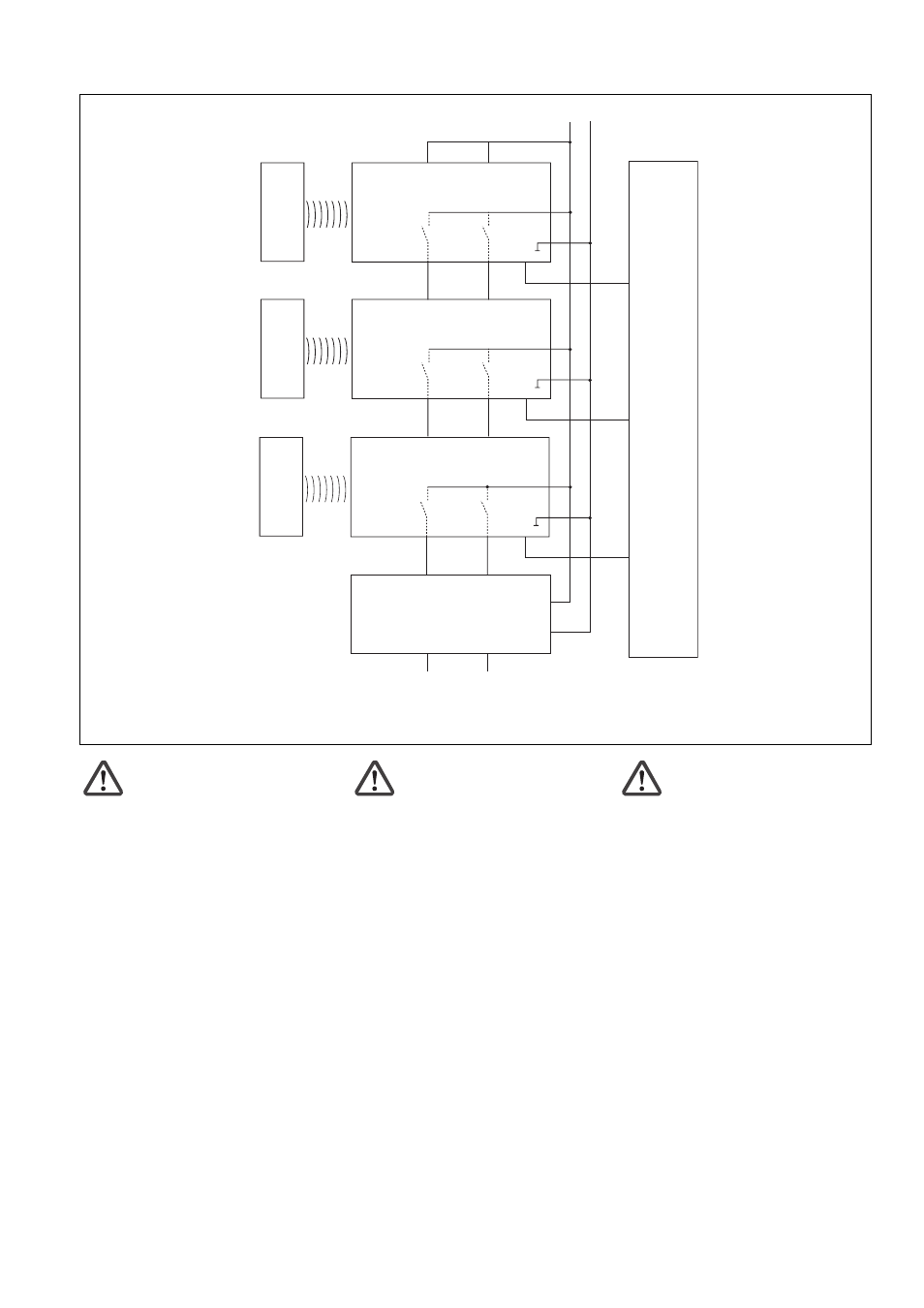

Reihenschaltung von 3 Sicherheitsschaltern
PSEN cs2.1p/PSEN cs2.2p

S21

S11

24 V 0 V

I1

I2

A1

A2

12

22

A1

A2

Auswertegerät

Evaluation device

Dispositivo di

controllo

12

22

A1

A2

12

22

Betätiger/Actuator/

Attuatore PSENcode

A1

A2

S21

S11

S21

S11

PLC

Y32

Y32

Y32

I1

I2

I3

Betätiger/Actuator/

Attuatore PSENcode

Betätiger/Actuator/

Attuatore PSENcode

Empfänger/Receiver/

Ricevitore PSENcode

Empfänger/Receiver/

Ricevitore PSENcode

Empfänger/Receiver/

Ricevitore PSENcode

Achtung!

Bei Reihenschaltung mehrerer
Geräte addiert sich die Rückfall-
verzögerung mit der Anzahl der
zwischengeschalteten Sicherheits-
schalter.

Series connection of 3 PSEN cs2.1p/
PSEN cs2.2p safety switches

Caution!

When connecting several units in
series, the delay-on de-energisation
time increases in direct proportion to
the number of interconnected safety
switches.

Anschlussbeispiele mit Pilz-Auswertegeräten siehe technischer Katalog PSENmag und PSENcode / Example connections with Pilz
evaluation devices see PSENmag and PSENcode technical catalogue/Esempi di collegamento a dispositivi di controllo Pilz: v. Catalogo
tecnico PSENmag e PSENcode

Collegamento in serie di 3 interruttori di
sicurezza PSEN cs2.1p/PSEN cs2.2p

Attenzione!

Collegando in serie più dispositivi, il
ritardo allo sgancio aumenta in
proporzione al numero di interruttori
di sicurezza collegati.
