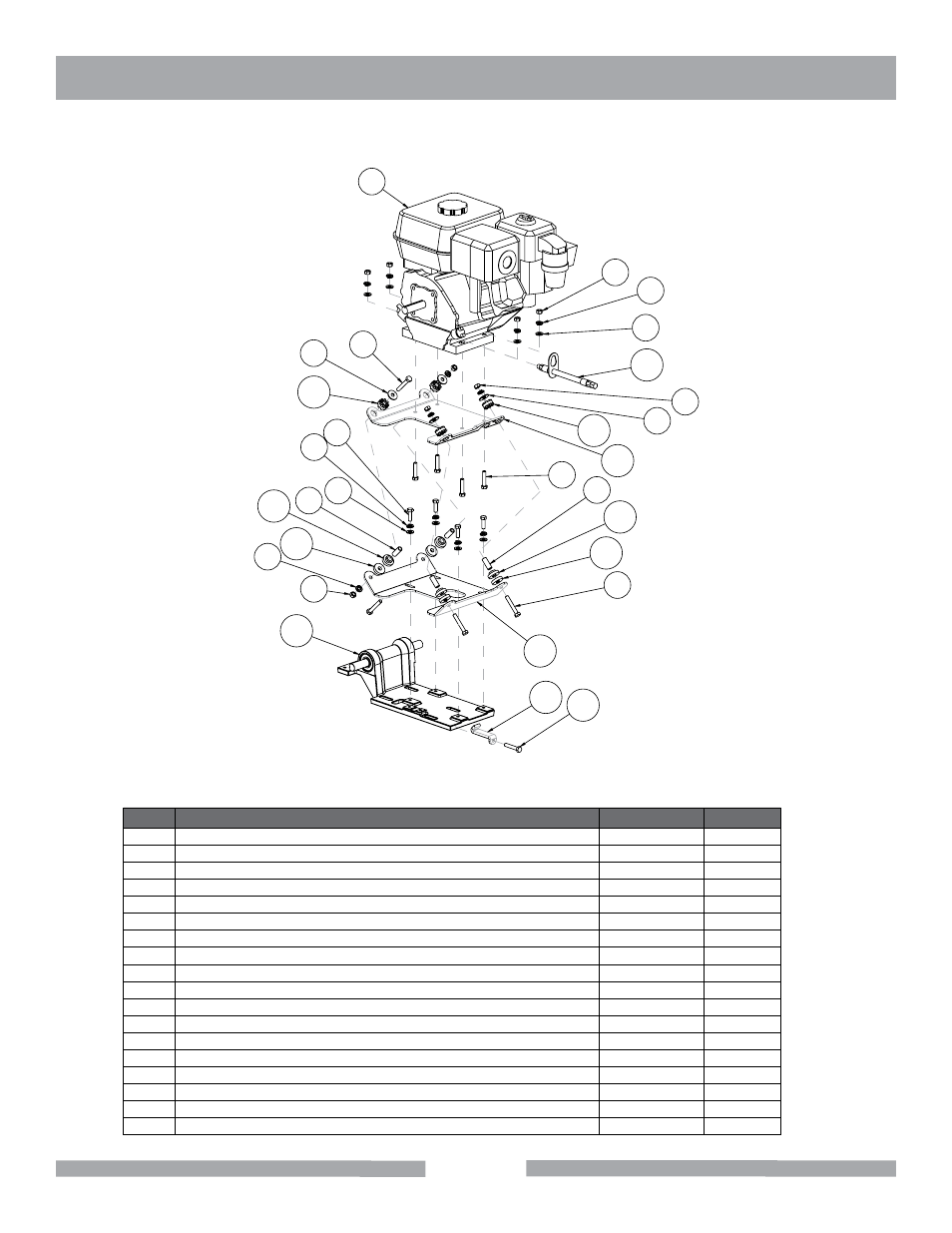

MK-2000 GAS SAW EXPLODED VIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
1
2
4
5
7
13
1
4
8
14
17
15
Assy. Engine MK-2000G Part # 170819
ItEM DESCRIPTION PARt # QTY.
1 NUT, HEX, 5/16-18 101196 8
2 WASHER, FENDER, 5/16 X 1.0 151053 4
3 SCREW, HEX HD, 5/16-18X1 151743 4
4 WASHER, LOCK, SPLIT, 5/16 151747 12
5 WASHER, FLAT, SAE, 5/16 151754 8
6 SCREW, 5/16-18 X 1-1/2 HEX HEAD MACHINE 152467 4
7 SCREW, 5/16-18 X 2 HEX HEAD 155494 4
8 STAND OFF, SHOCK MOUNT 156104 4
9 ENGING, HONDA GX160 W/CYC 156282 1
10 PLATE, ENGINE MNT LOWER 156296 1
11 PLATE, ENGINE MNT UPPER 156297 1
12 STRAP, BELT TENSION MK-2005 156955 1
13 PLATE, ENGINE MNT UPPER 156961 4
14 MOUNT, SHOCK LOWER 156962 4
15 ASSY, OIL DRAIN, 10MM 157577-01 1
16 SCREW, 5/16-18 X 1-3/4 HEX HEAD MACHINE 160948 1
17 MOUNT, SHOCK, WASHER 164244 4
18 ASSY, ENGINE MOUNT, 2000G 170820 1
