50
ItEM DESCRIPTION PARt # QTY.
1 ASSY, CONVYR CART 133082 1
2 SCREW, HEX HD, CAP, 5/16-18X1-3/4 150919 8
3 SCREW, HEX HD, 3/8-16 X 1-3/4 150920 1
4 WASHER, FLAT, SAE, 3/8 150923 1
5 WASHER, LOCK, SPLIT, 3/8 150925 1
6 SCREW, HEX HD, 5/16-18X1 151743 4
7 WASHER, LOCK, SPLIT, 5/16 151747 13
8 WASHER, FLAT, SAE, 5/16 151754 13
9 NUT, HEX, 1/4-20 151893 1
10 WASHER, FLAT, SAE, 1/4 151915 2
11 SCREW, 5/16-18 X 1-1/2 HEX HEAD MACHINE 152467 1
12 CLAMP, 1/2 CUSHION LOOP 152471 1
13 WASHER, LOCK, SPLIT, 1/4 152591 1
14 PLUG, RBBR DRAIN W/O HOLE 153439 1
15 NUT, WELD, SLAB. 3/8-16 153945 1
16 ROD, SPLASH CURTAIN 153956 1
17 SHAFT, PIVOT, 5/8 154147 1
18 SCREW, HEX HD 1/4-20 X 2 158282 1
19 WELDMENT, BASE FRAME 158845 1
20 POST (COMP) 158846 2
21 STUD, SPRING RETAINING 160066 1
22 BRACKET, STAY LEVEL CLIPPER PAV 160068 1
23 BRACKET, PIVOT SHAFT 160070 1
24 CURTAIN, SPLASH, MK-2000 160972 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
7
8

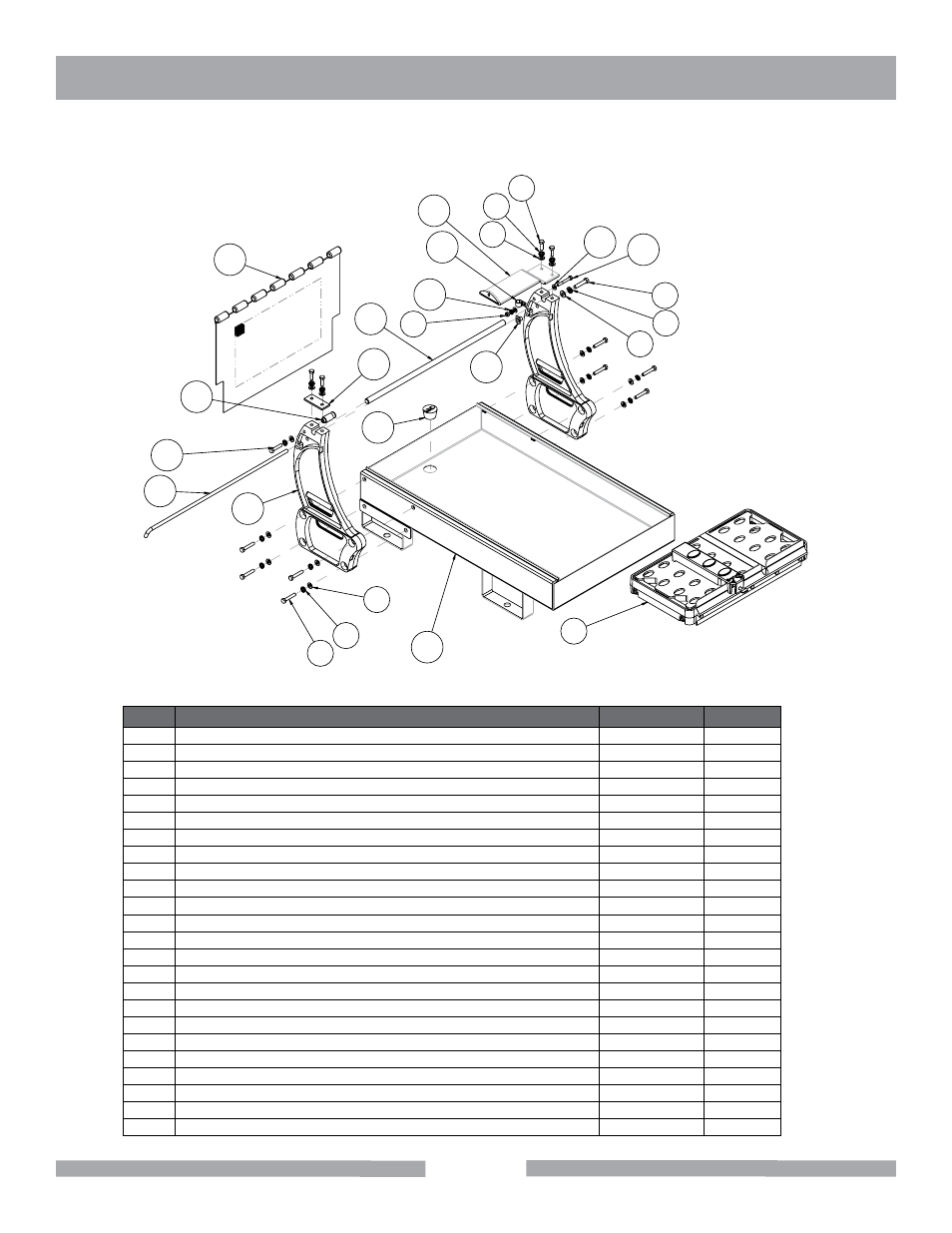

Assy. Frame Part # 170818
MK-2000 GAS SAW EXPLODED VIEW
