17
ADJUSTABLE CUTTING GUIDE INSTALLATION
(A)
Loosen adjustable Cutting Guide retaining
thumbscrews by turning counter-clockwise.
(B)
Position adjustable Cutting Guide
above movable Cutting Table. Align
parallel slots. Seat and tighten the
adjustable Cutting Guide retaining
thumbscrew.
The adjustable Cutting Guide can be used on either side of the Diamond Blade. NOTE:

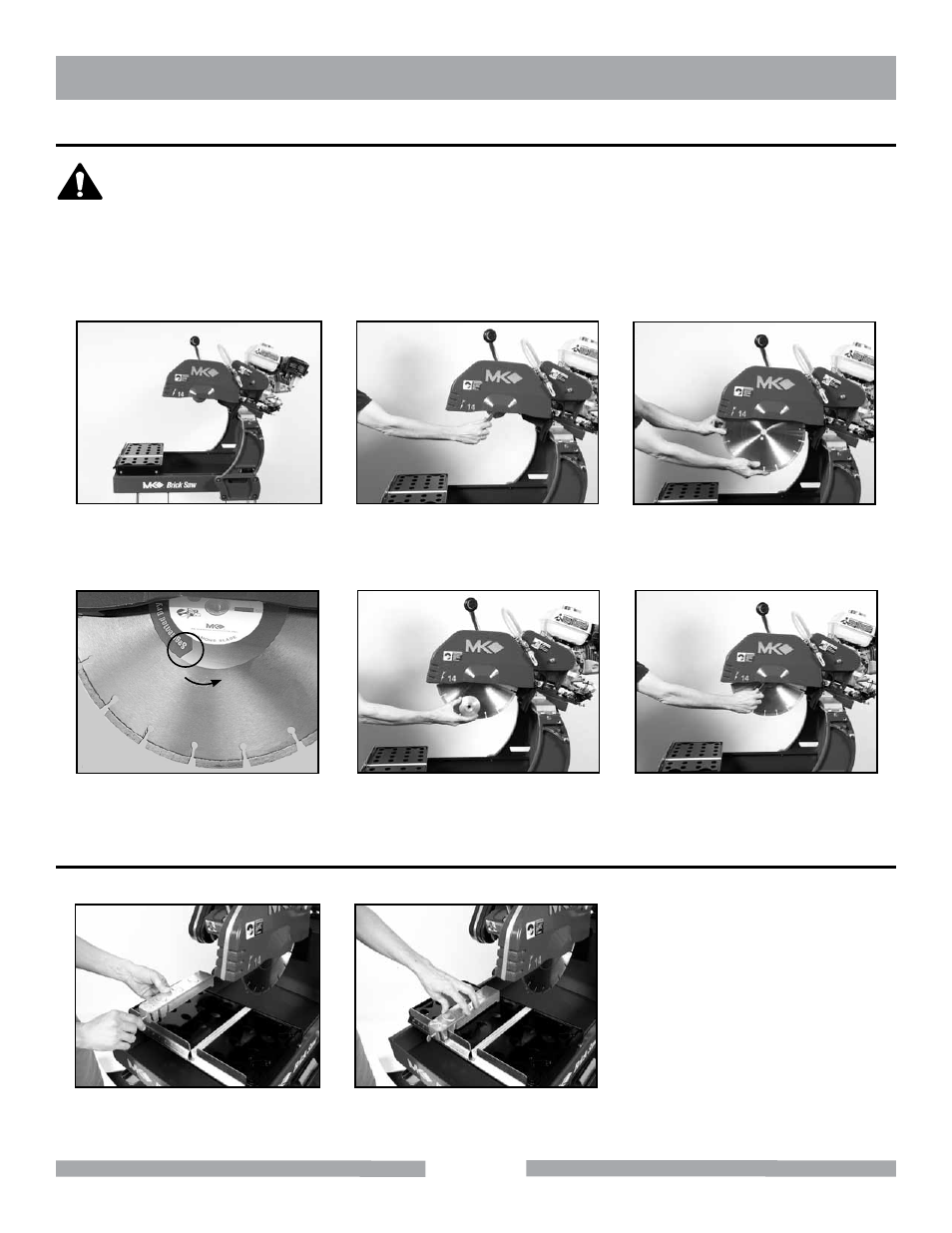

MK-2000 GAS SAW ASSEMBLY
DIAMOND BLADE INSTALLATION
(A)
Raise Cutting Head by
loosening Cutting Head Lock
(B)
Identify and remove Retaining
Screw and Outer Flange
(C)
Install Diamond Blade onto
Blade Shaft
When installing the diamond blade retaining-bolt, ensure the threads of the bolt are aligned
with the threads of the blade shaft so as not to “cross-thread” the bolt.
NOTE:
The Cutting Head will rotate upward, when you loosen Cutting Head Lock, hold
the saw by the handle and control the upward movement.
The Cutting Head is locked in the down position when shipped from the factory.
CAUTION
NOTE:
(D)
Verify Blade is seated on Blade
Shaft in correct rotation direction.
(F)
Install Retaining Screw then tighten.
(E)
Install Outer Flange.
