Wiring the Fan Coil Unit for Power

DANGER

ELECTRICAL SHOCK HAZARD

RISK OF SERIOUS INJURY OR DEATH

The electrical outlet and wiring installation must meet the national and local

building codes.

DO:

 Match the electrical wiring to the cord provided on the Wine Guardian.

 Provide dedicated circuit and wiring for the system.

 Match the wiring and breaker size to the rated load as shown on the serial

plate and in this guide. See sample serial plate illustration below.

.

DO NOT:

 DO NOT MODIFY THE PLUGS IN ANY WAY!

 Do not use extension cords.


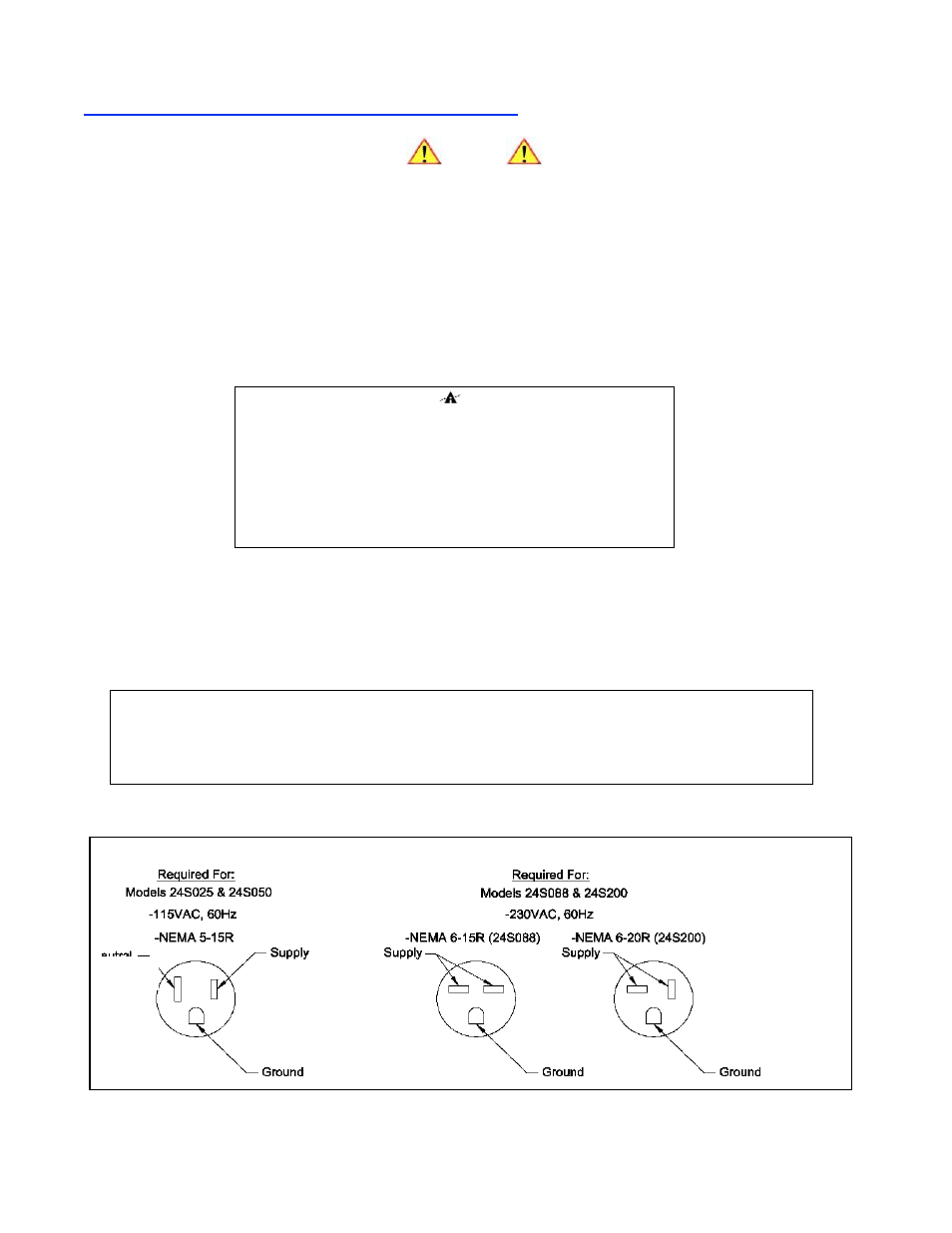

Plug the unit into the wall outlet. Gently pull on the plug to make sure it is tight.











IMPORTANT

The electrical power supply must be either 115 volt or 230 volt AC 1 phase 60 cycle, depending

on the model of the unit, and cannot vary more than plus or minus 4% or damage may occur

to the unit.

Electrical

230/1/60

Electric Heat Amps

(opt.)

6.7

Evaporator Fan Amps

0.8

Humidifier Amps (opt.)

0.3

Total Unit Amps (w/o opt.)

0.8

Crankcase Htr. Amps.

0.2

Min. Circuit Amps (w/o opt.)

1

Refrigerant

R-134-A

275psi

Air Innovations, 7000 Performance Drive, North Syracuse, New York 13212

Ph:800-535-3295 * 315-452-7400 * Fax: 315-452-7420

Test Pressure

Model# SS088 Serial# 11L18342

Neutral
