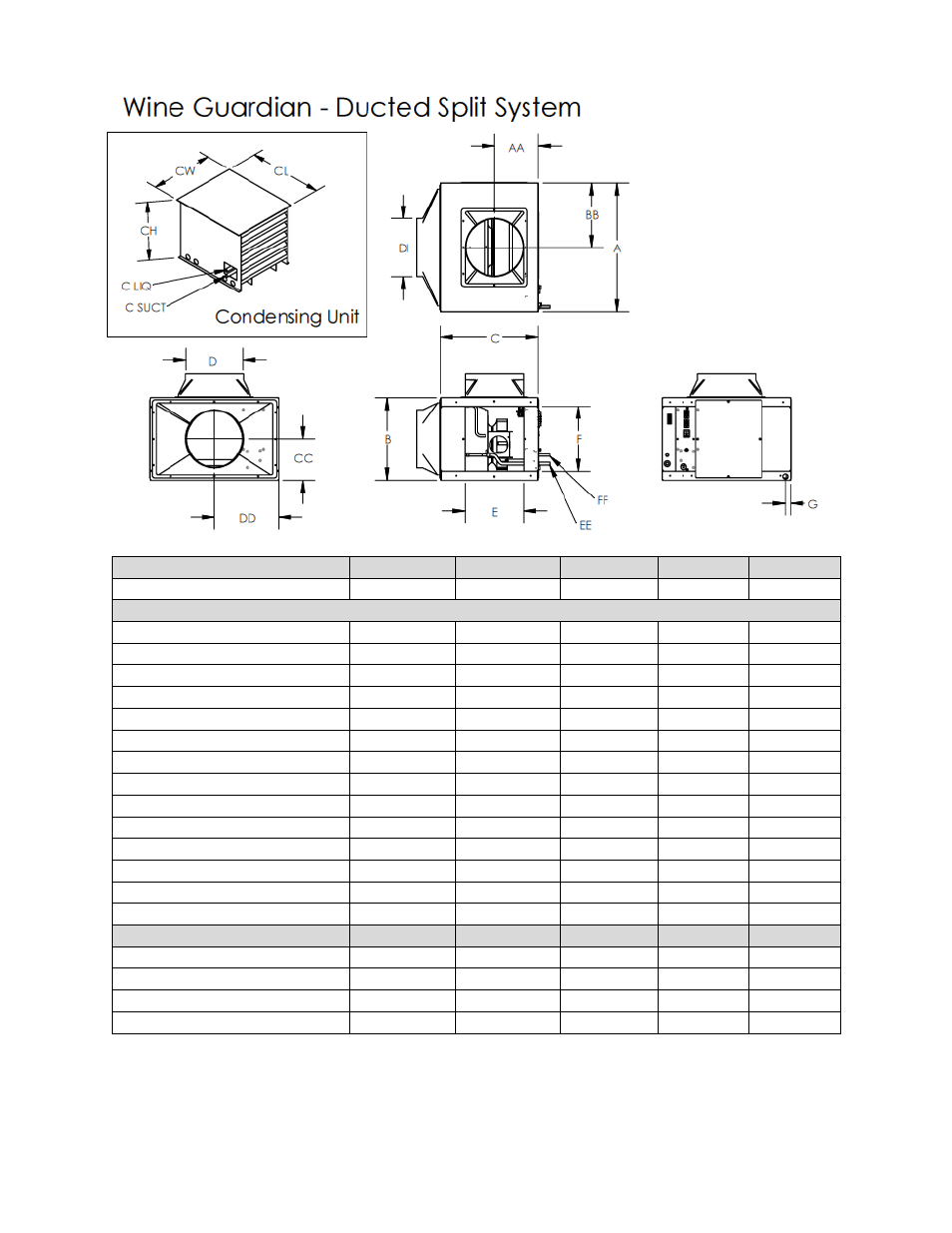

Fig. 3
Model Number SS025 SS050 SS088 SS200
Dimensions - Nominal
A – Width Inches 14.00 22.00 22.00 22.375
B – Height Inches 14.132 14.132 14.132 18.00
C – Length Inches 16.75 16.75 16.75 20.50
D – Evap. Discharge (OD) Inches 7.94 9.938 9.938 11.94
DI – Evap. Inlet (OD) Inches 7.938 9.938 9.938 11.94
E – Outlet opening width Inches 9.980 10.00 10.00 11.63
F - Outlet opening height Inches 11.13 11.13 11.13 15.00
G – Drain outlet location Inches 0.656 0.919 0.919 0.848
AA – Discharge opening height Inches 7.50 7.50 7.50 9.188
BB – Discharge opening width Inches 7.00 11.00 11.00 11.188
CC – Inlet opening height Inches 7.066 7.066 7.066 9.00
DD – Inlet opening width Inches 7.00 11.00 11.00 11.188
EE – Suction Line (OD) Inches 0.375 0.500 0.500 0.500
FF – Discharge Line (OD) Inches 0.250 0.250 0.250 0.375
Weight Lbs.
CH – Condenser Height Inches 18.25 18.25 22.25 27.13
CL – Condenser Length Inches 24.13 24.13 30.25 32.25
CW – Condenser Width Inches 19.13 19.13 23.38 38.25
Table 1
