Page 27: Air flow diagram
22
Installation
CAUTION
SHARP EDGES
RISK OF SERIOUS INJURY
Sharp edges are present inside the Wine Guardian system
.
Pre-installation Test
Test the system before installing it to check for non-visible shipping damage.
To test the Wine Guardian fan coil section:
Set the system on the floor or a sturdy level surface.
Plug in the system.
Press the on/off switch to see if the control illuminates. This indicates the system
has power.
A built-in timer within the controller prevents short cycling and keeps the
system from turning on right away. After a five-minute period the fan should
turn on and start to deliver air. Listen for any unusual noise or vibration.

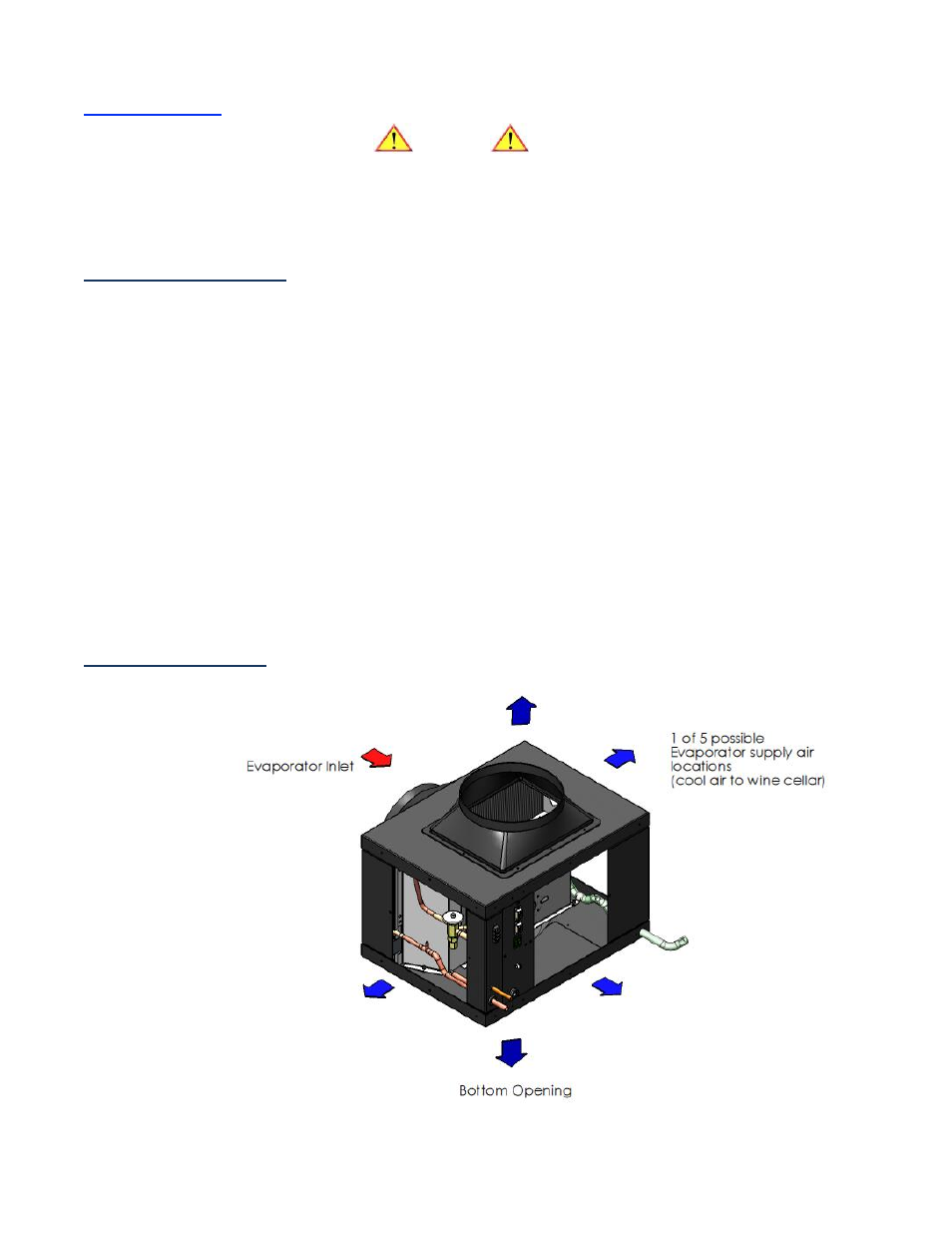

Air Flow Diagram
Fig. 1
WARNING
