QUICK REFERENCE GUIDE

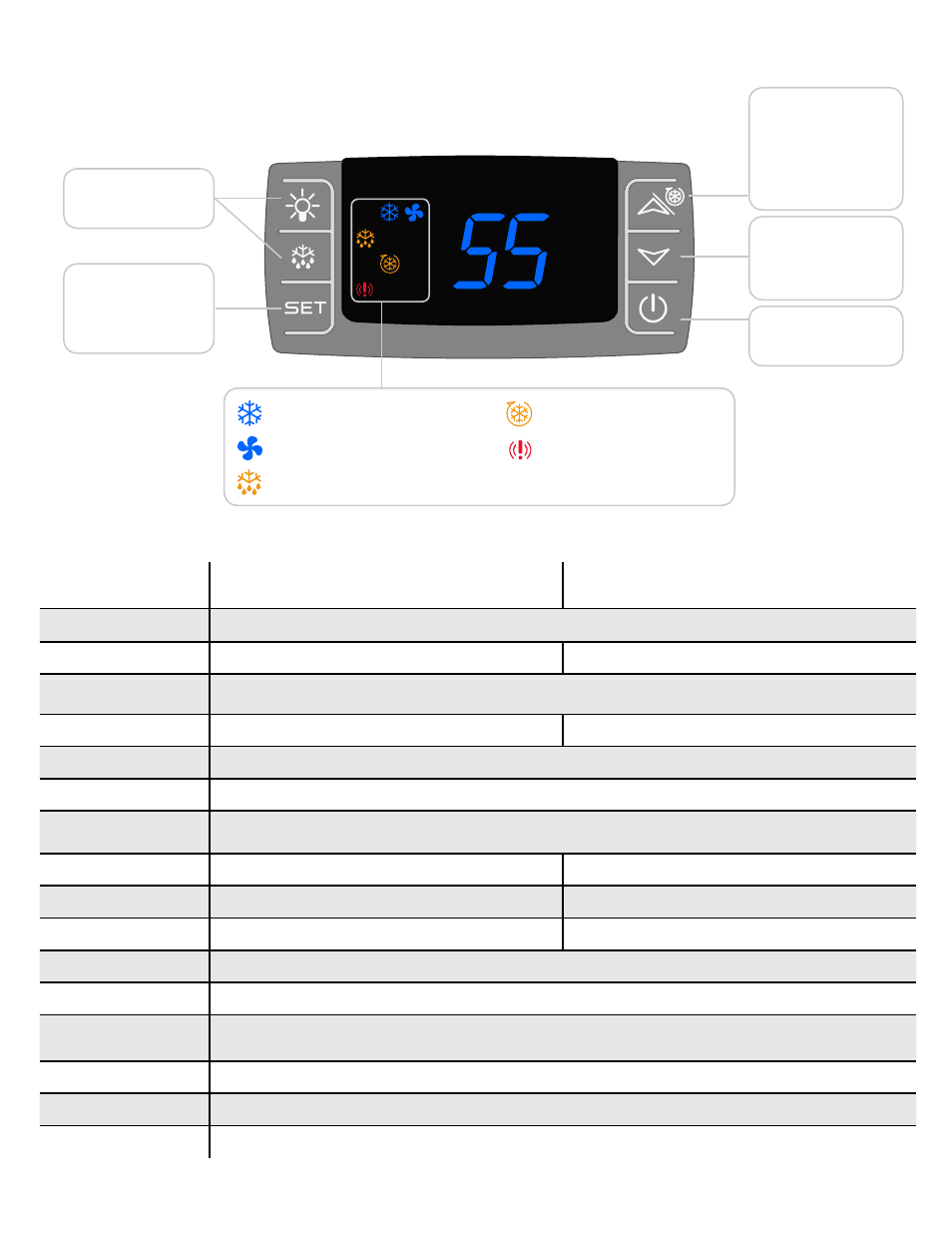

Controller Layout
Refer to page 36 for complete listing of buttons and symbols.
° F
Compressor is On
Fans are On
Unit is in Anti-Frost Mode
Unit is in Pre-Chill Mode
Alarm is Present
° F
° F
° F
° F
° F
View Set Point
Change Set Point
(Press and hold 3-5 sec)
Inactive
Power On/Off
Low Bottle Temp
History
Scroll Button
High Bottle Temp
History
Scroll Button
Cellar Pre-Chill
(Press and hold 3-5 sec)
MINI CEILING MOUNT SPECIFICATIONS
Model
Mini Evaporator
(Fan Coil Unit)
Mini Condenser
(Air Cooled Condensing Unit)
Cellar Size (cu. ft.) 500
Dimensions 22.05”L x 11.34”W x 11.08”H 16.0”L x 11.5”W x 10”H
BTUh with 90° air entering
the Condenser Coil
1540
CFM 107 190
Refrigerant R-134a
Condensing Unit HP 1/5
Voltage Rating (20 amp
dedicated circuit required)
115V
Weight (lbs) 40.6 40.4
AMPS (Starting/Running) 2/1 11/3.81
dBA 52 65
Line Set (od.) Suction Line: 3/8”; Liquid Line: 1/4”
Drain Line (id.) 1/4” I.D
Installation
Evaporator unit (fan coil unit) is installed through the cellar ceiling, condenser is installed up to
100 line ft. from the evaporator unit.
Thermostat Digital Control Display
Temp. Delta 55°F max. temperature differential between the cellar and condenser air intake temperature.
Warranty 2-year parts and labor
