HUMIDISTAT INSTALLATION
Figure 3
Humidistat Installation
Only a 120-Volt humidistat can be used with this unit.
Routing the Wiring

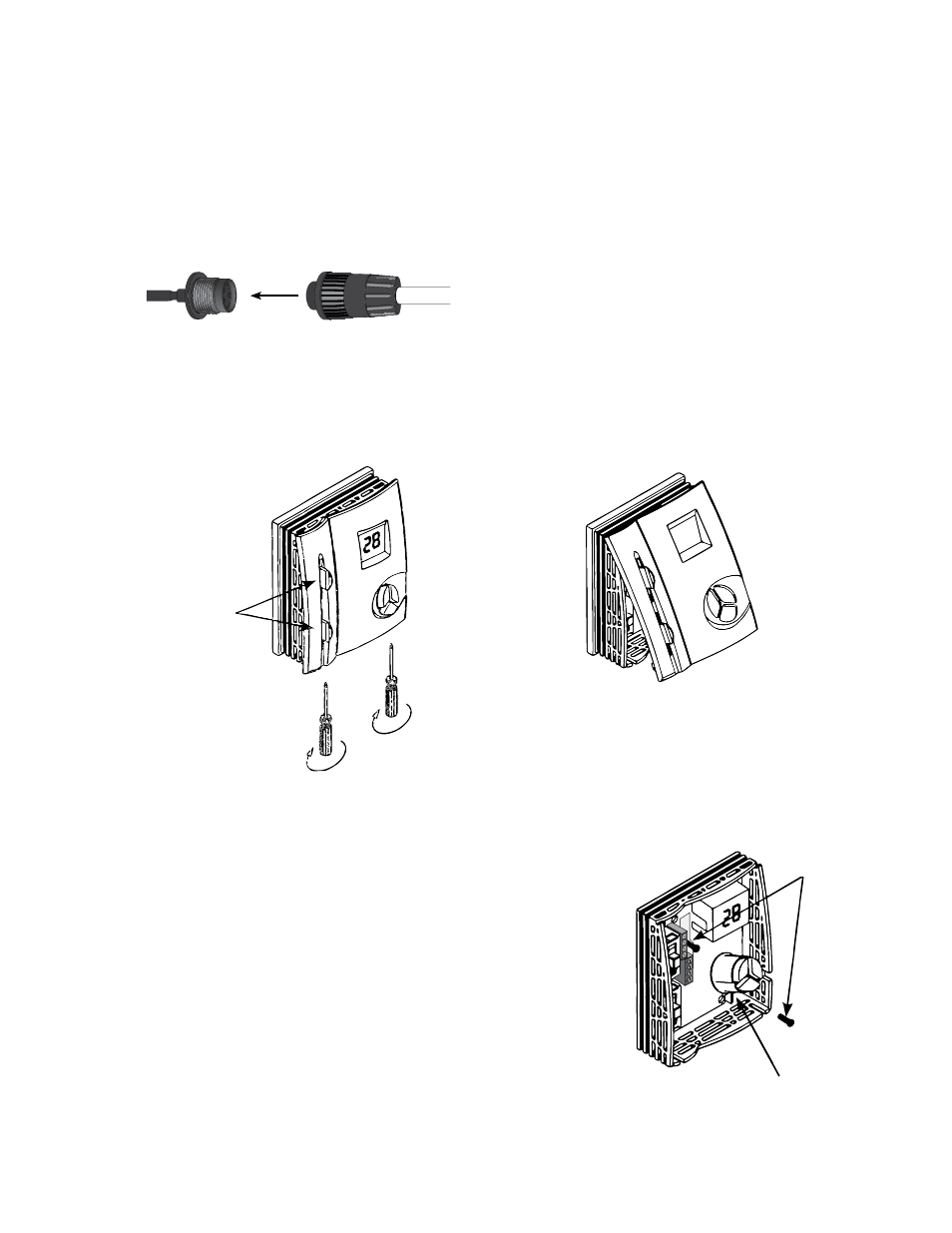

1. Plug the circular connector from the humidistat cable into the circular connector on the unit as shown in Figure 1.
2. Route the wire from the unit to the desired humidistat location.
Removing the Cover
1. Move both slide controls to the bottom position.
2. Use a screwdriver to loosen the screws at the bottom of the humidistat as shown in Figure 2.
3. Carefully remove the cover as shown in figure Figure 3.
Mounting Without a Wall Mount Plate
4. Make sure the humidistat electrical is unplugged before installing the unit.
5. Position the back half of the humidistat cabinet on the wall or
junction box to ensure it is level and covers the junction box
completely.
6. Pull the electrical wires through the hole at the terminal block of
the humidistat.
7. Drill holes in the wall through the two mounting holes in the back
of the humidistat cabinet as shown in Figure 4 and insert anchors
into the holes.
8. Fasten the humidistat to the wall with screws through the
mounting holes.
Figure 1
Figure 2
Note: Slide
controls to the
bottom position
Screws
Terminal Block
Figure 4
