www.whisperkool.com | Page 13
Note: It is highly recommended to use only the mounting locations provided. These locations ensure that the
installer will not drill into any copper or electrical within the system.
Single Piece Mounting Bracket
The mounting bracket has been designed to secure the unit to the ceiling. Install the
mounting bracket to the evaporator unit following the guide below.
INSTALLING THE EVAPORATOR UNIT
2. Secure the unit’s mounting bracket to the opening using the 12 supplied 1 3/4” hex head screws.
MOUNTING BRACKET

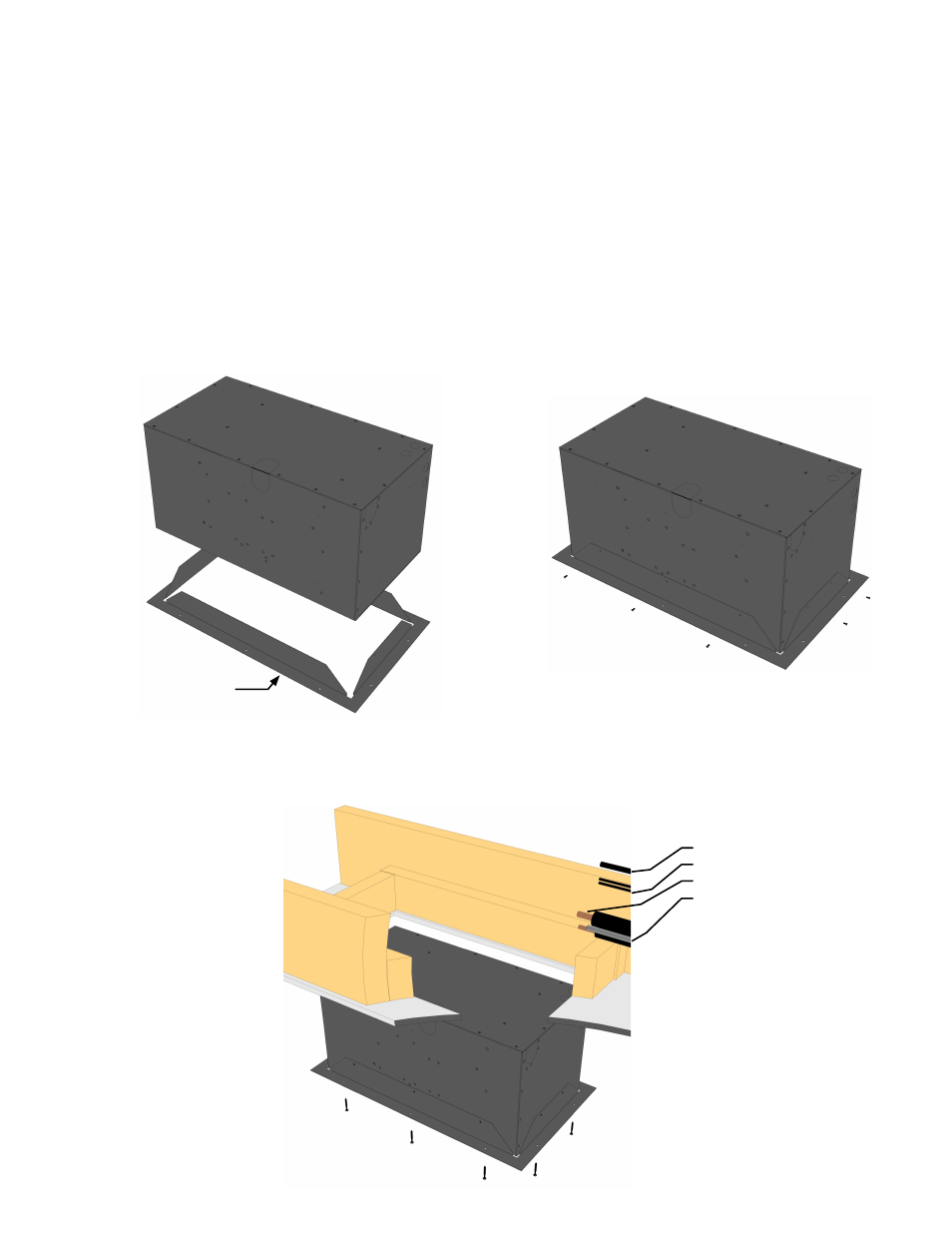

Mounting Bracket Installation
Using the guide below, select the desired mounting orientation and slide the mounting bracket onto the unit. Align
the mounting holes on the mounting bracket with the pre-drilled holes on the unit. Fasten the mounting bracket to
the unit using the supplied 1/2” self-tapping screws. Slide the unit through the framed opened in the ceiling. Secure
the unit to the opening using the 12 supplied 1 3/4” hex head screws.
1. Secure the mounting bracket to the unit.
Note: It is highly recommended to use only the mounting locations provided. These locations ensure that the
installer will not drill into any copper or electrical within the system.
2. Keypad & Bottle Probe Wiring
1. Power Cable Wiring
3. Line Set
4. Drain Line
Routed Items:
