INSTALLING THE EVAPORATOR UNIT

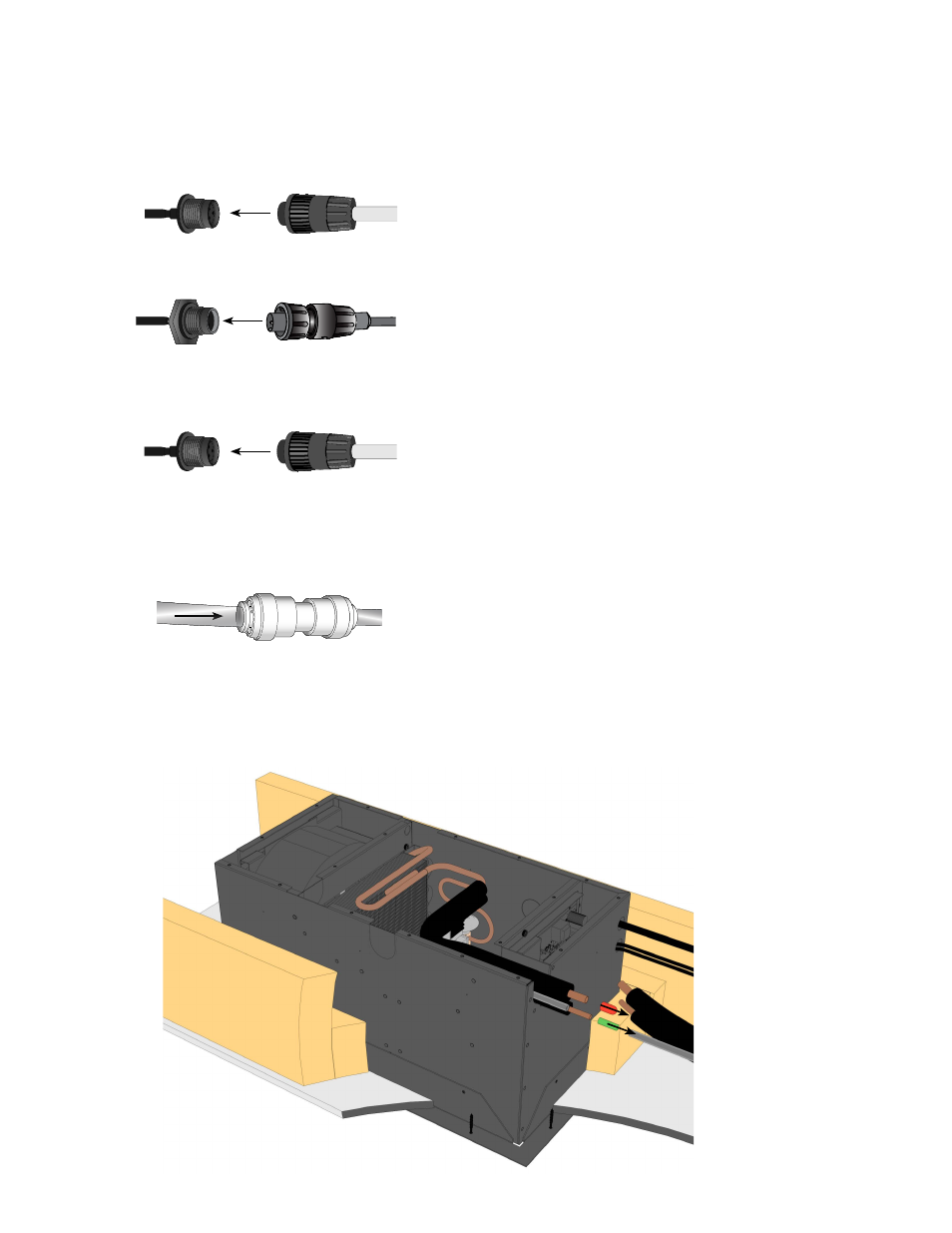

Figure 5 (Optional)
7. Connect the power cable to the evaporator.
8. Connect the keypad cable to the evaporator (see page 22 for more keypad information).
9. Connect the bottle probe cable to the evaporator (see page 21 for more bottle probe information).
10. If you have purchased the Active Humidity Option, connect the Humidistat cable to the evaporator (see page 24
for more humidistat information).
11. Slide the electrical panel back into the evaporator unit and secure with the thumbscrew.
12. If you have purchased the Active Humidity Option, connect a water line to the water connection port on the
evaporator unit, shown in Figure 5 (see page 23 for more Active Humidity Option Information).
13. Remove the protective caps from the liquid and suction line connection tubes. (as shown below)
