INSTALLING THE EVAPORATOR UNIT
CONNECTING THE EVAPORATOR UNIT

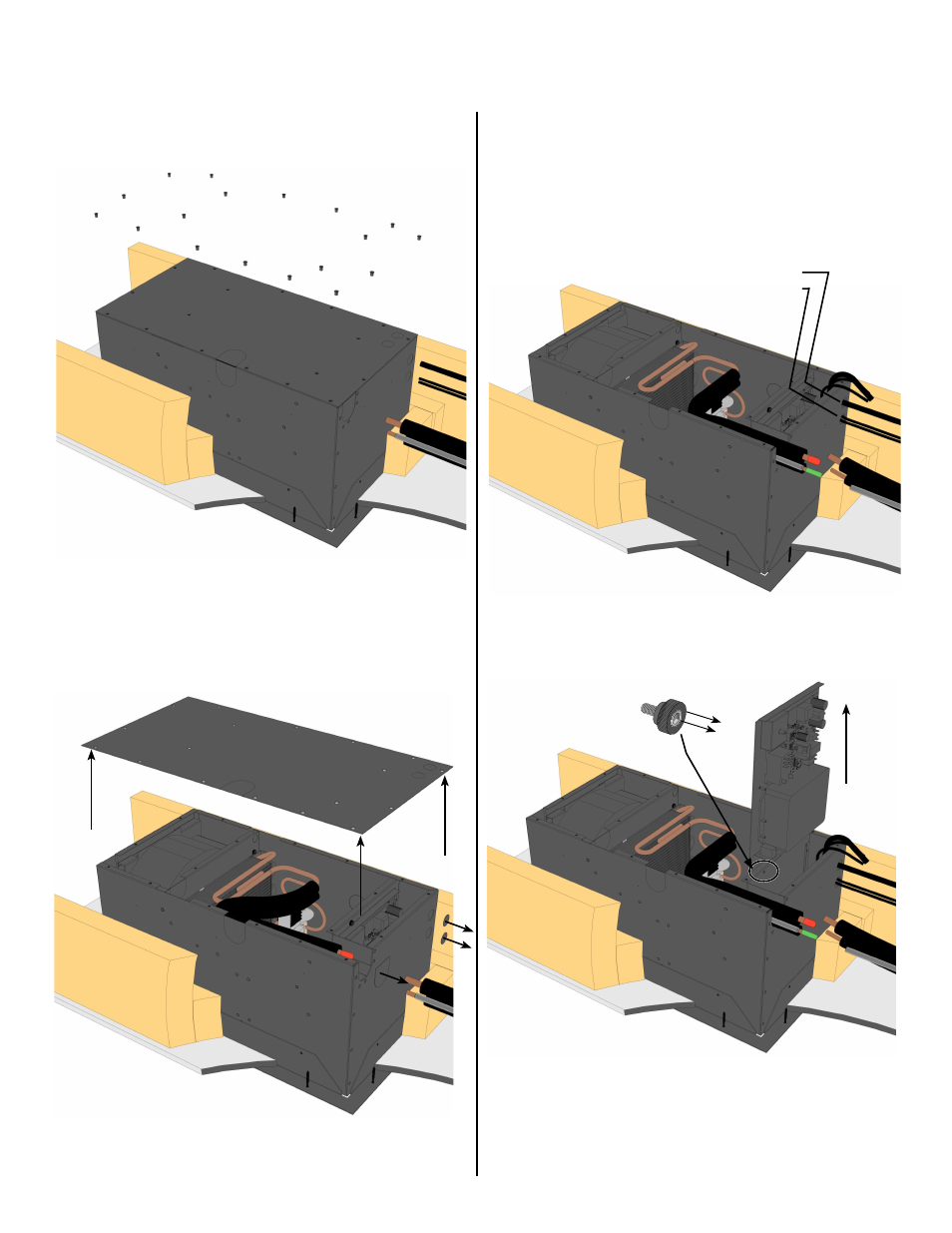

1. Unscrew the 16 screws and remove the Top Access
Panel.
2. Remove the Knockout(s) that you will be using to route
the items on page 12 into the unit (power cable wiring,
keypad cable, bottle probe cable, and humidistat cable
is optional).
3. Route the wiring into the unit as shown below.
4. Pull out the line set through the knockout by bending
the tubbing away from the coil as shown in the image
below.
5. Route the drain line out of the evaporator unit with the
line set.
1. Power Cable
2. Keypad & Bottle
Probe Wiring
6. Remove the thumbscrew holding the electrical panel
and slide the panel.
