REROUTING LINE SET
Note: Line Set and drain line should extend to the exterior of the unit through the Knockout(s). Dimensioned Locations of the
knockouts are provided on page 3.
Rerouting the Line Set Through the Desired Knockout

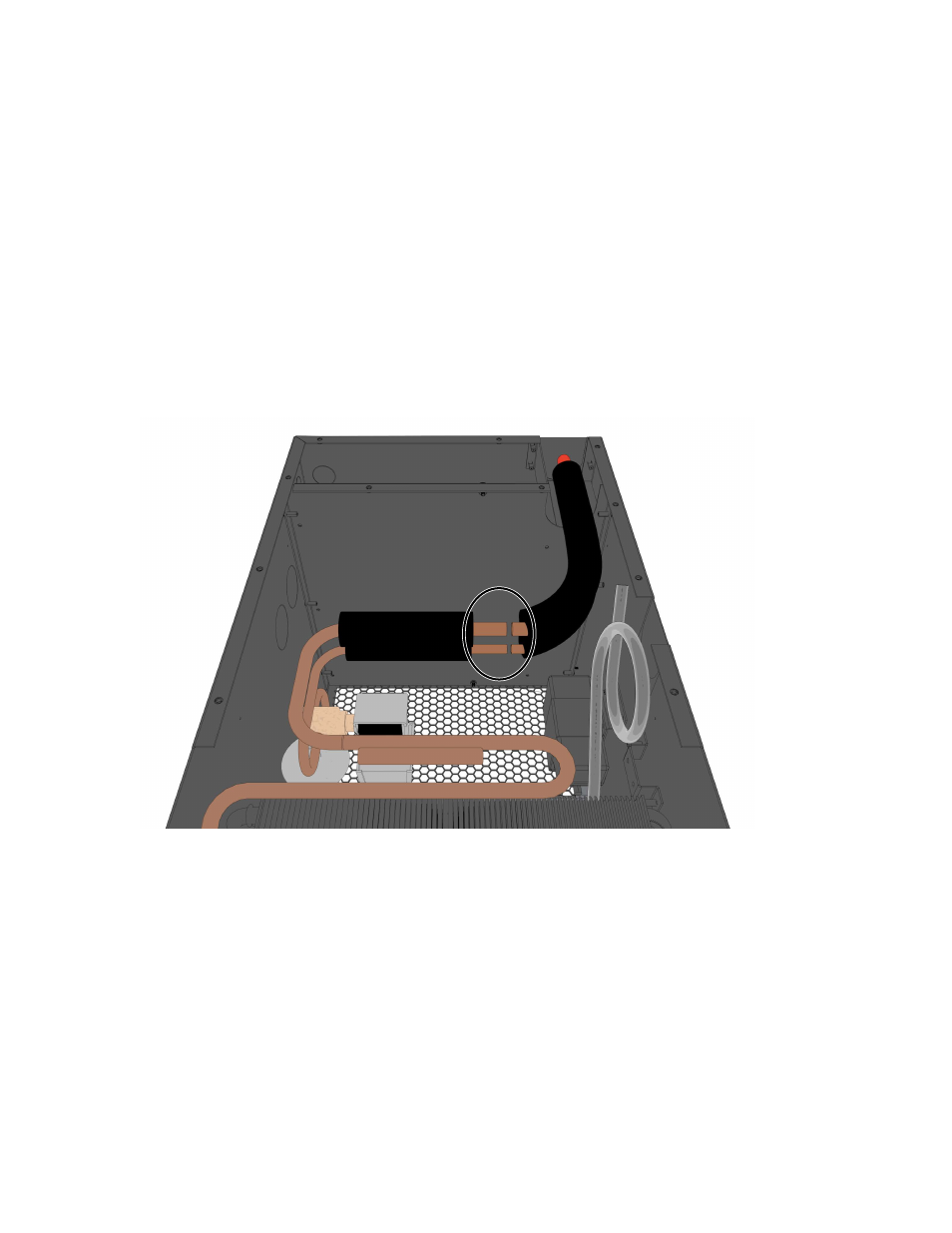

1. Cut the Armaflex and copper lines as shown in the image below.
2. Route the Line Set through the desired knockout.
3. Using 1/4” and 1/2” copper tubing, route the liquid and suction lines through the knockouts in the wrapper. Note:
1/2” copper tubing will slip over the 3/8” suction line on the evaporator for an easy connection.
4. Place a wet rag around the suction and liquid lines approximately 4” from the braze joints. This will prevent excess
heat from damaging components.
5. To prevent oxidation, purge nitrogen through the system.
6. Braze the copper tubing to the connections on the evaporator unit.
7. Insulate the suction line using Armaflex or similar insulation.
CUT
