SYSTEM WIRING AND CONNECTIONS
ITEMS TO ROUTE BEFORE INSTALLING THE EVAPORATOR
1.
Route the line set from the condensing unit to the desired evaporator installation location.
2. Route the keypad cable from the desired keypad location to the evaporator installation location (see page 22 for
more keypad information).
3. Route the bottle probe cable from the desired thermostat bottle location to the evaporator installation location
(see page 21 for more bottle probe information).
4. If you have purchased a unit with the Active Humidity Option, route the water line from the water source to the
evaporator location (see page 23 for more Active Humidity Option Information).
5. If you have purchased a unit with the Active Humidity Option, route the humidistat cable from the desired
humidistat location to the evaporator installation location (see page 22 for more Humidistat Information).
6. Route the drain line from a proper discharge location to the evaporator installation location (see page 20 for more
drain line Information).
7. Route the power cable wiring to the evaporator installation location.

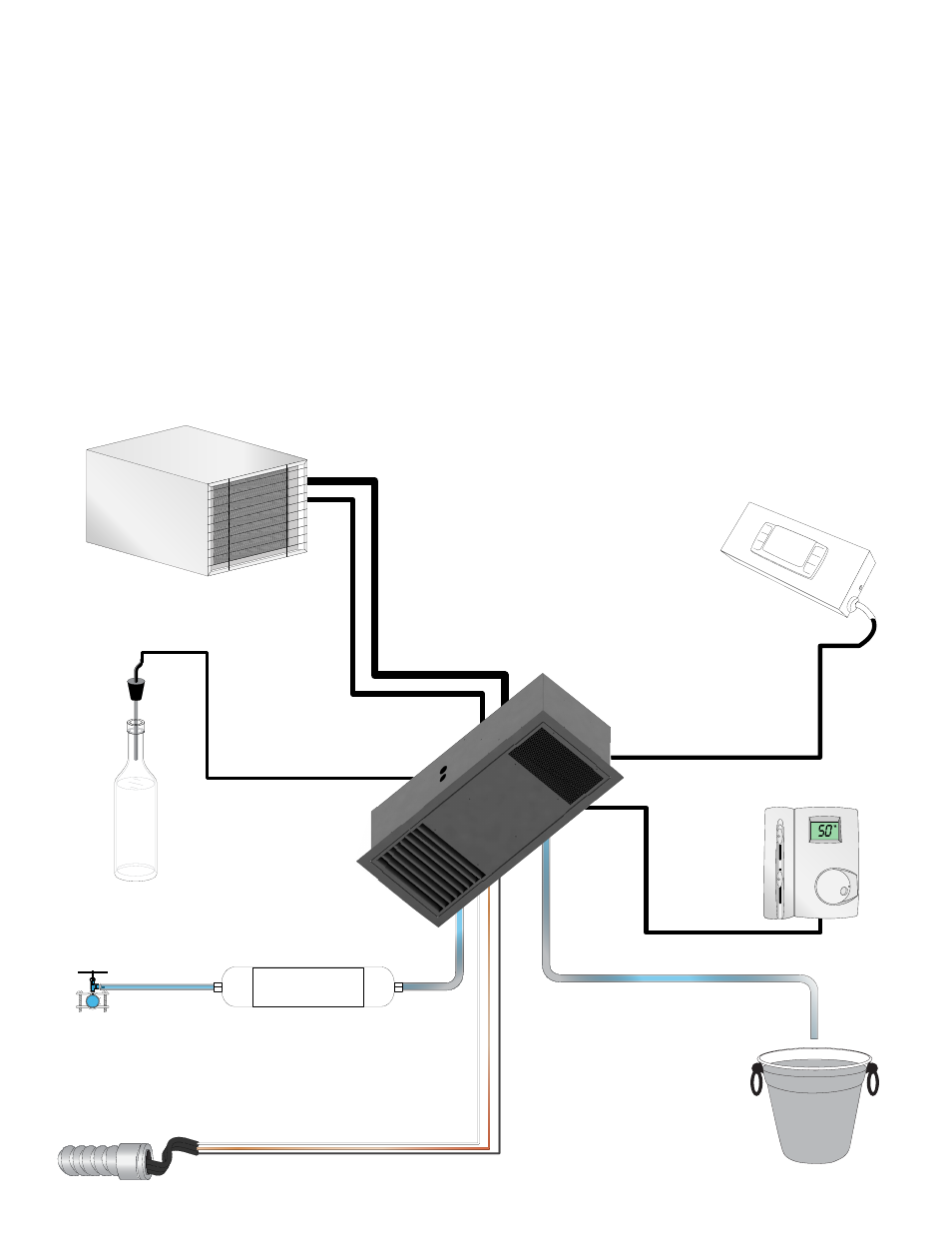

ITEMS TO ROUTE
FAN
HI
MED
LOW
HU- MID
O F F
D E - HUM
30
40
50
60 70
80
90
%
FILTRATION SYSTEM
WATERLINE
POWER CABLE
DRAIN LINE
HUMIDISTAT
CABLE
For units equipped with the
Active Humidity Option
For units equipped with the
Active Humidity Option
KEYPAD CABLE
BOTTLE PROBE
LINE SET
