26 Trade Route Installation Manual
3.2 Zero the Inclinometer
SOFTKEY5
....
Exit Zero Angle
SCALES SERIAL FEATURE
PORT 1
INCLIN
.... ....
....
BAUD
The inclinometer has been zeroed at the factory on a level surface. Once the electronic weigh center has
been installed, perform this function with the system display level.

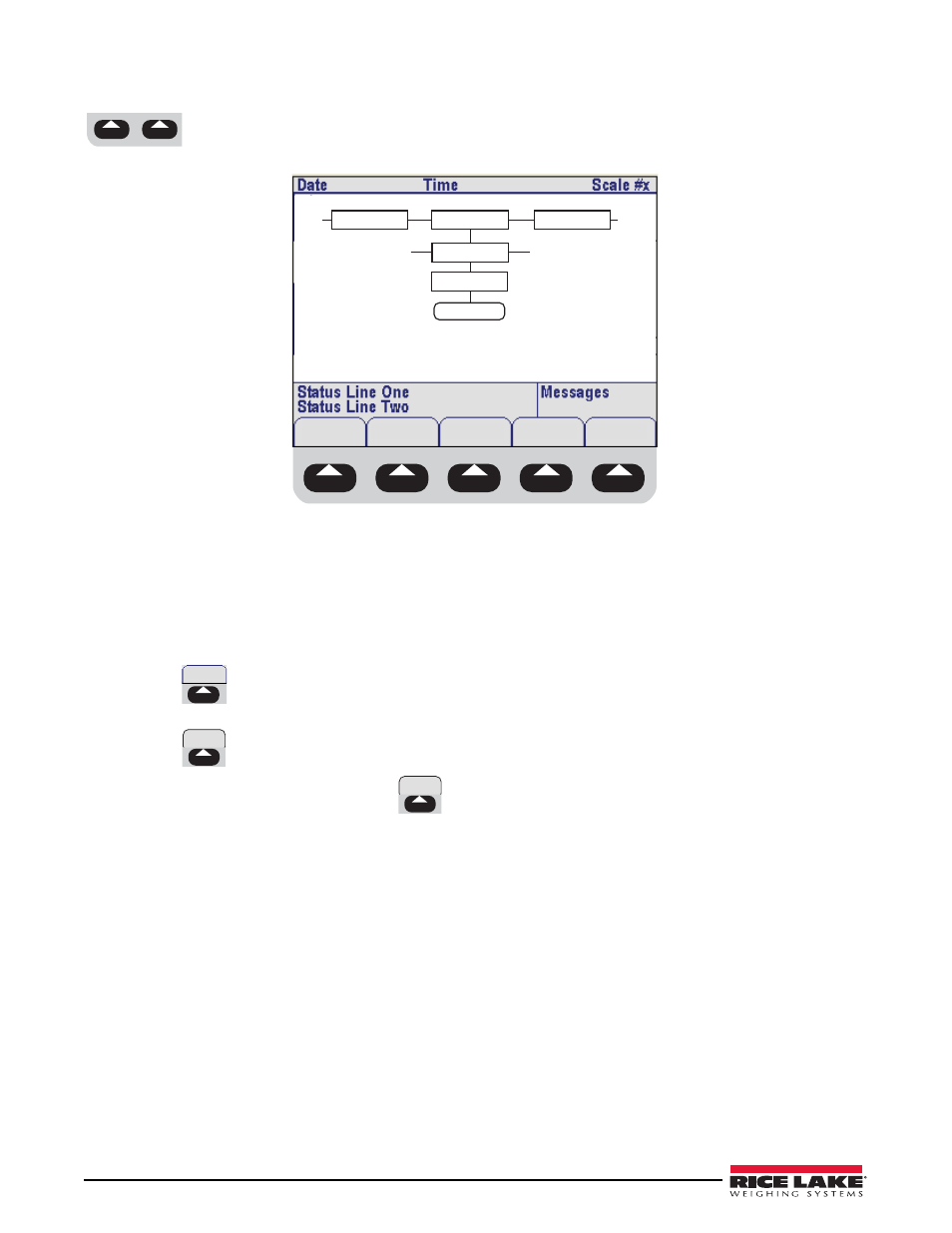

Figure 3-3. Inclinometer Settings
Adjust the scale platform for level in both pitch and roll using a bubble or electronic level.
1. Put the indicator in configuration mode.
2. Navigate over to
SERIAL
, then down to
PORT 1
.
3. Navigate down to
ICLIN
.
4. Navigate down to
BAUD
.
5. Press
Zero Angle
. There will be no indication the command was accomplished; check the angle indications to
verify.
6. Press
Exit
to return to normal weigh mode.
7. Once in normal weigh mode, press
Setup Menu
. The pitch and roll values will be displayed. Due to heavy
filtering it may take several seconds for the angle values to settle.
