1.1 Front Panel Keypad and Annunciators

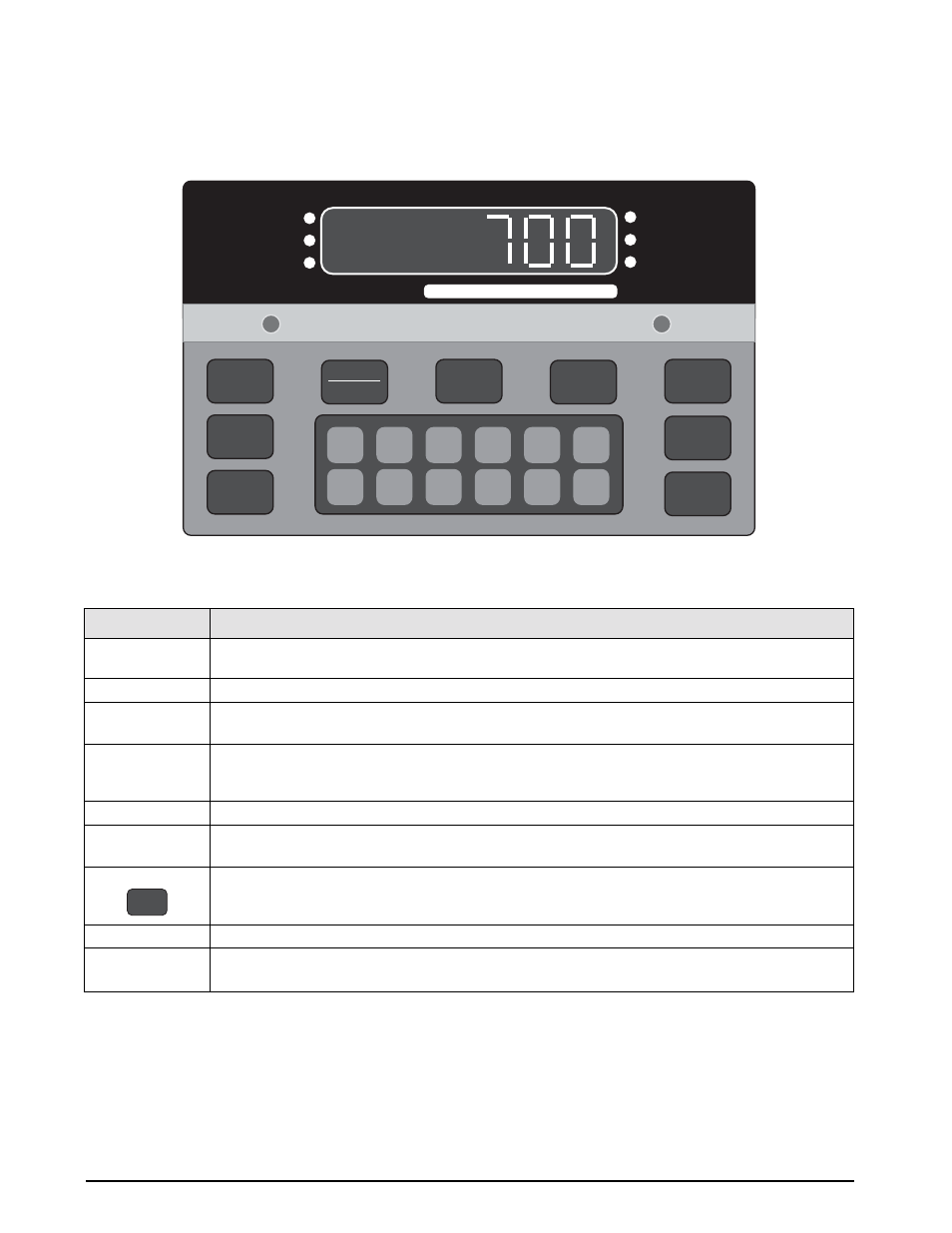

Figure 1-1 shows the IQ 700 front panel. The IQ 700 display consist of six seven-segment display digits. Table 1-1
lists the front panel keys and their functions.
Figure 1-1. IQ 700 Front Panel
1
6
2
7
3
8
4
9
5
0
CE
ENT
TARE
RECALL
ZERO
NET
GROSS
TARE
lb/kg
CONV
PRINT
1 SET
POINT
2 SET
POINT
CAPACITY 5000 lb. X 0.5
ZERO
NET
GROSS
lb
kg
MOTION
M O D E L
700
Panel Key Function
ZERO Provides push-button auto zero (PAZ) over ±1.9% or 100% full scale capacity. Operates only in gross
weighing mode.
GROSS/NET Switches the unit between gross and net weighing modes.
TARE Provides push-button tare entry over 100% of scale capacity. Pressing TARE key switches to net mode
and enters tare.
PRINT Provides a manual print function if unit is wired to serial printer or other data device. Also initiates truck
in/out weighing function if that feature is enabled. See Section 4.7 on page 31 for serial output
specifications.
lb/kg CONV Switches the displayed weight unit between pounds and kilograms.
TARE RECALL Press to recall tare value; LED annunciator lit when tare value is displayed. Also used as ID RECALL in
t ruck weighing mode and recalls total value when the totalizer option is enabled.
ON/OFF Provides power to the indicator.
NOTE:
On AC units, the ON/OFF switch is replaced by the Model 700 which becomes a start key in
setpoint batching modes.
SETPOINT 1 & 2 Push to enter or recall associated setpoint values.
0–9, CE, ENT Numeric keyboard for entry of manual tare, setpoint values, and calibration data. CE (Clear Entry) and
ENT (Enter) keys.
Table 1-1. Front Panel Key Functions
