6 IQ 700 Installation Manual
NOTES:
Unprotected cable runs need to be installed in a method to protect the cable from damage from crimping.
All wiring must conform to the National Electrical Code and RP 12.6.
2.8 Load Cell Wiring
Units are equipped with a six-wire load cell connection.

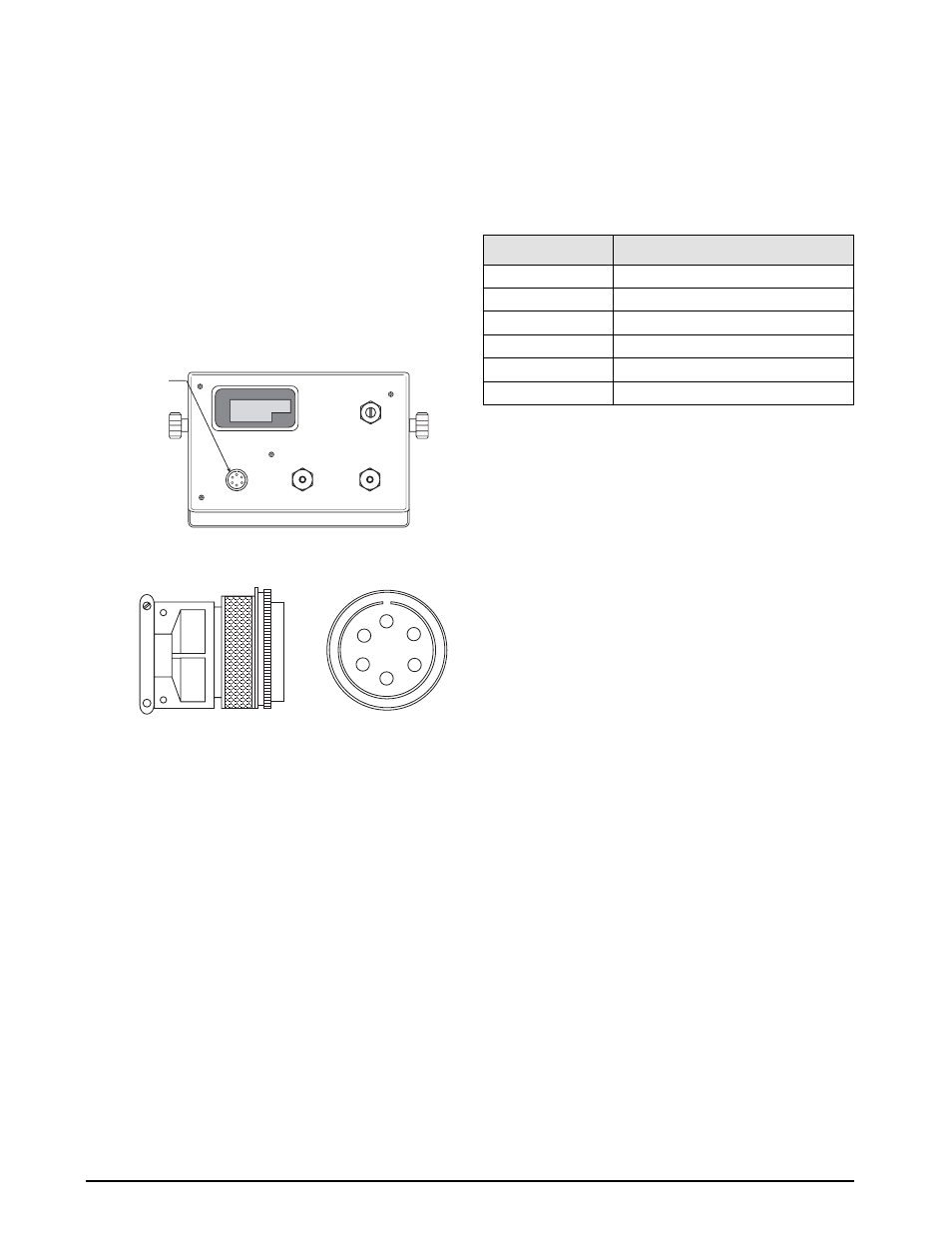

Figure 2-5 shows the load cell output connector and the
location of TB1 on the back of the indicator. Table 2-2
(in the following column), shows load cell connector
pin assignments.
Figure 2-5. J1 Load Cell Connector
A
B
C
D
E
F
J1
Load Cell
Connector
TB3 & 5
REAR VIEW
TB1 POWER TB2 & 4
Pin Function
A +EXCITATION
B –EXCITATION
C +SIGNAL
D –SIGNAL
E +SENSE
F –SENSE
Table 2-2. Load Cell Connector Pin Assignments
