6.3 Customizing Print Formats
The following sections describe procedures for
customizing print formats using the
iRev conÞguration
utility, serial commands, or the front panel (PFORMT
menu. See Section 10.5 on page 97 for information
about custom stream formatting.
6.3.1 Using iRev
The iRev conÞguration utility provides a ticket
formatting grid with a tool bar. The grid allows you to
construct the ticket format without using the
formatting commands ( and ) required by
the front panel or serial command methods. Using
iRev , you can type text directly into the grid, then
select weight value Þelds from the tool bar and place
them where you want them to appear on the printed
ticket.
Figure 6-1 shows an example of the iRev print
formatting display.

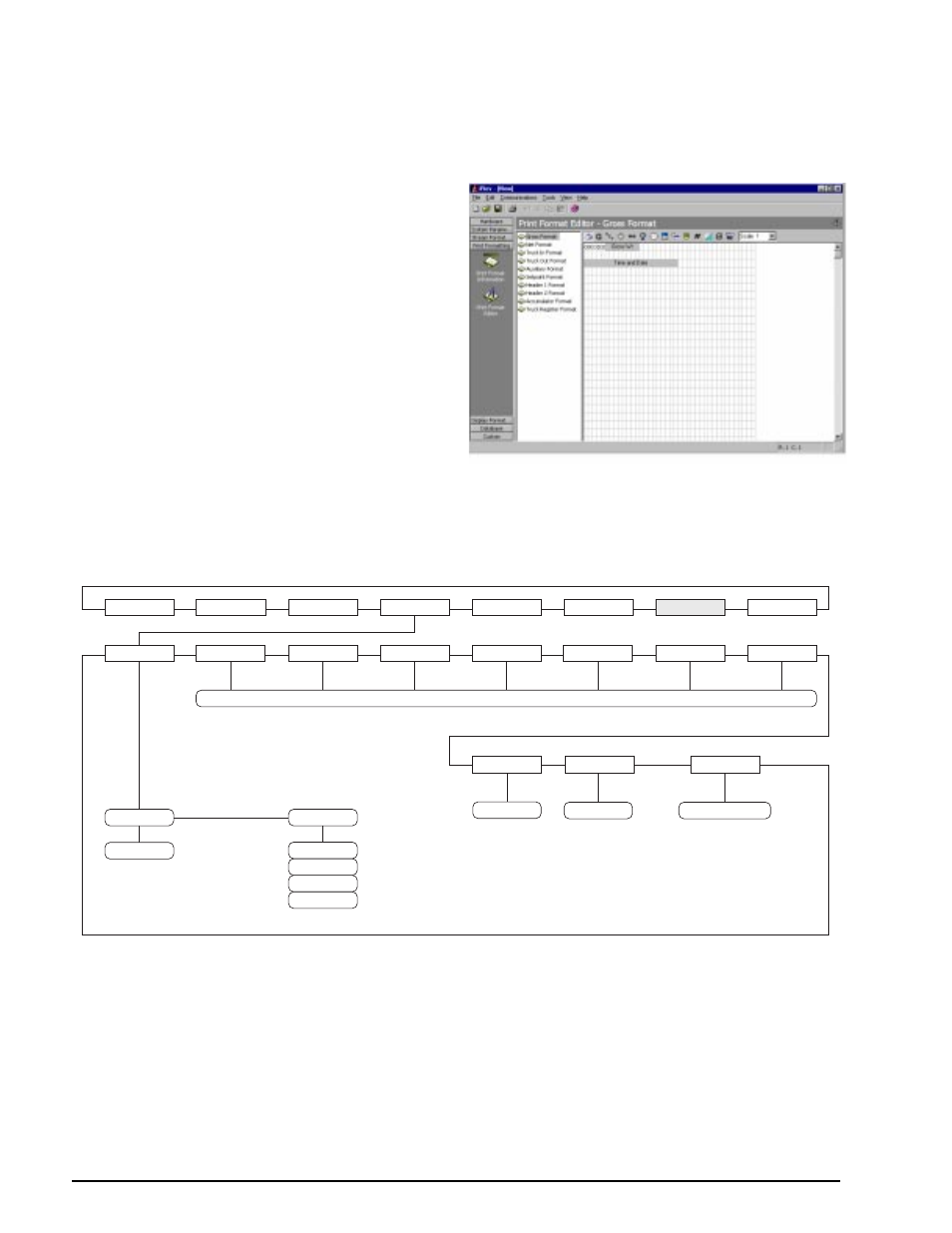

Figure 6-1. iRev Print Formatting Display
6.3.2 Using the Front Panel
If you have no access to equipment for communication through a serial port or are working at a site where such
equipment cannot be used, you can use the PFORMT menu (see Figure 6-2 on page 56) to customize the print
formats.
Figure 6-2. PFORMT Menu
SCALES SERIAL FEATURE PFORMT SETPTS DIG I/O ALGOUT VERS
GFMT NFMT ACCFMT SPFMT TRWIN TRWOUT TRFMT
Same as GFMT
PORT 4
PORT 1
PORT 3
PORT 2
PORT FMT
format
HDRFMT1 HDRFMT2 AUXFMT
format format
ALERT
Same as GFMT
