Configuration
17
Four front panel keys are used as directional keys to navigate through the menus in setup mode (see Figure 3-2).
The
UNITS
( ) and
( ) keys scroll left and right (horizontally) on the same menu level;
ZERO
( ) and
% SHRINK
( ) move up and down (vertically) to different menu levels. The
LOAD
key (
) serves as an Enter
key for selecting parameter values within the menus. A label over each of these keys identifies the direction
provided by the key when navigating through the setup menus.
1
st
Level
Parameter
Default value
2
nd
Level
Parameter
Value
Value
Value
1
st
Level
Parameter
2
nd
Level
Parameter
When moving through values below the first menu level, press
to return to the level
above. Press
or
to move to the next parameter on the level above.

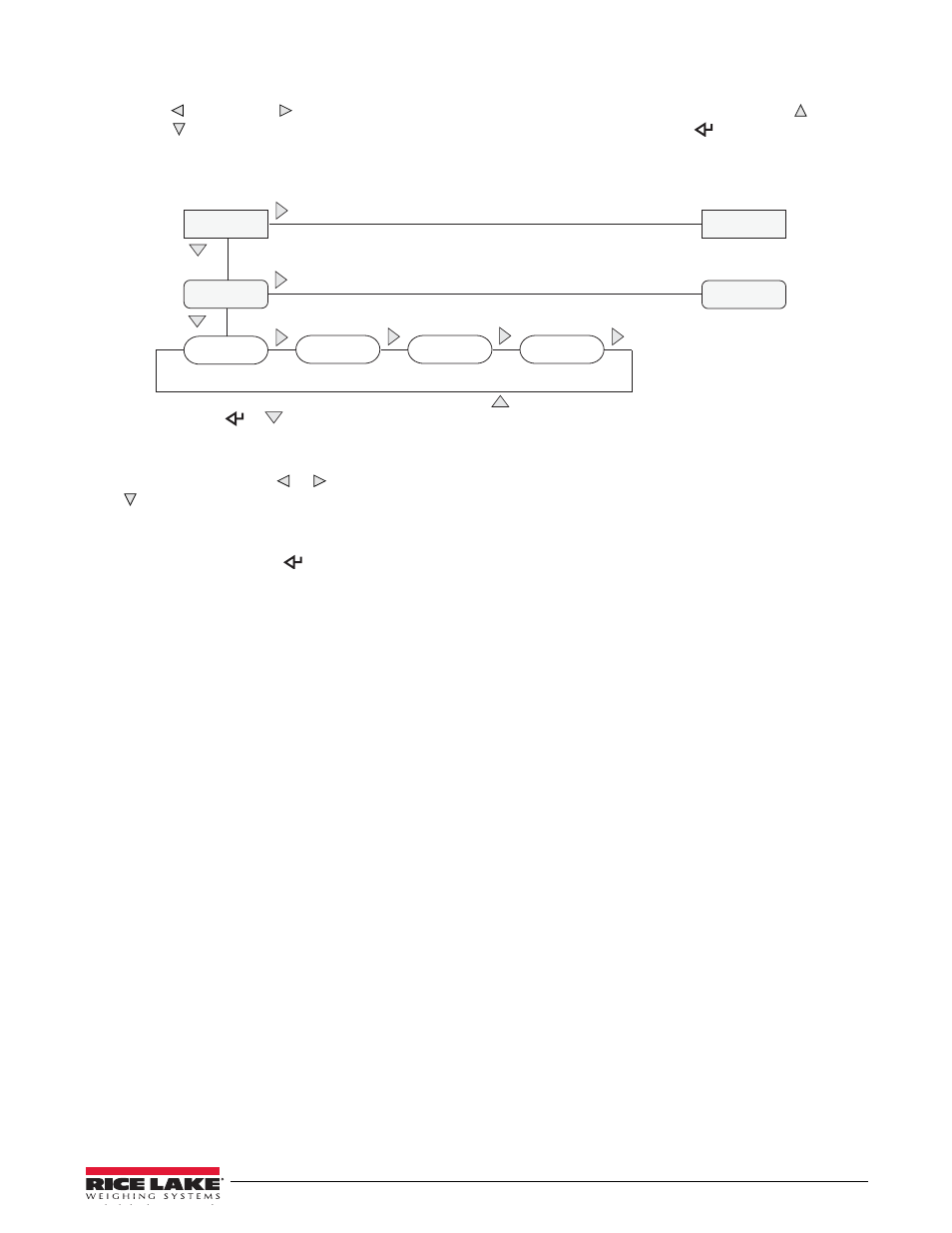

Figure 3-3. Setup Mode Menu Navigation
To select a parameter, press or to scroll left or right until the desired menu group appears on the display, then
press to move down to the submenu or parameter you want. When moving through the menu parameters, the
default or previously selected value appears first on the display.
To change a parameter value, scroll left or right to view the values for that parameter. When the desired value
appears on the display, press
to select the value and move back up one level. To edit numeric values, use the
numeric keypad on the indicator front panel.
