Losi LOSB9603 User Manual
Losi Hardware

Operating Manual
Losi (LOSB9603)
Intelligent 1- to 3-Cell Charger
Model: LE3000
Features:
• Microprocessor-controlled for constant voltage and limited current resulting in
optimal battery performance
• Selectable number of cells from 1 to 3
• Seven (7) selectable charge rates from 100–2000 mA
• Alarmed protection for:
o
Reverse voltage connection
o
Short circuit
o
Incorrect charge rate
o
Charger temperature too high
o
Cell voltage below 2V

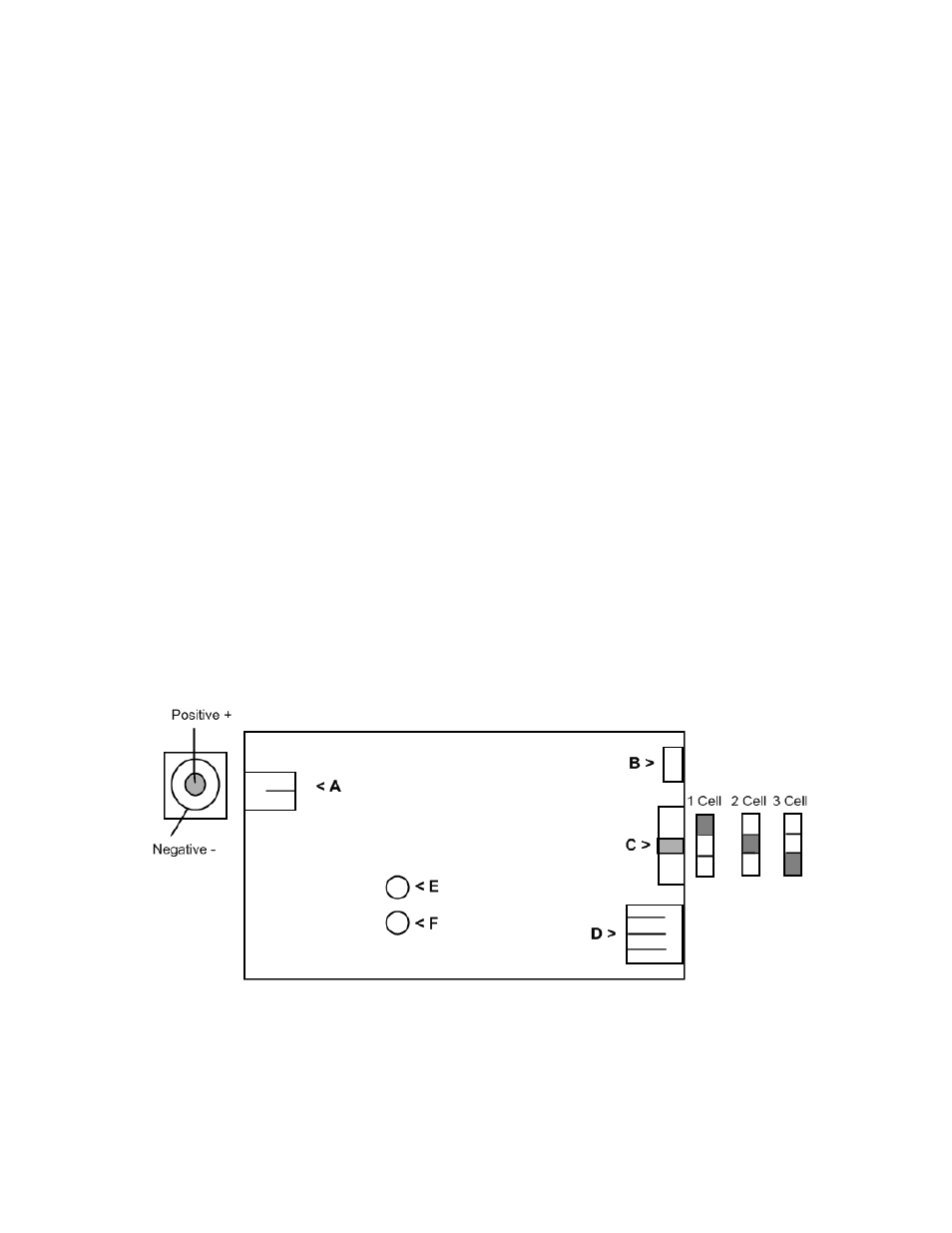

Physical Overview:
A.
DC Input
Connection for a 12V car battery or hobby grade power supply. Input voltage
should be between 10–15V.
