VMP1 Bootstrap Loader
ID 19972, Rev. 0101 Page 5 - 9 ® PEP Modular Computers GmbH
5.1.5 Example Using Hyperterminal under Windows 95/Windows NT
The host is assumed to be a PC with Windows 95 or Windows NT. A serial cable is used
to connect the term port of the board to be programmed to COM2 of the PC. Addition-
ally, we assume that we want to program a MOTOROLA S-record built for the Flash
address of the board. The serial connection runs at the default configuration of 9600
Baud with no parity and one stop bit. The properties should appear as follows:

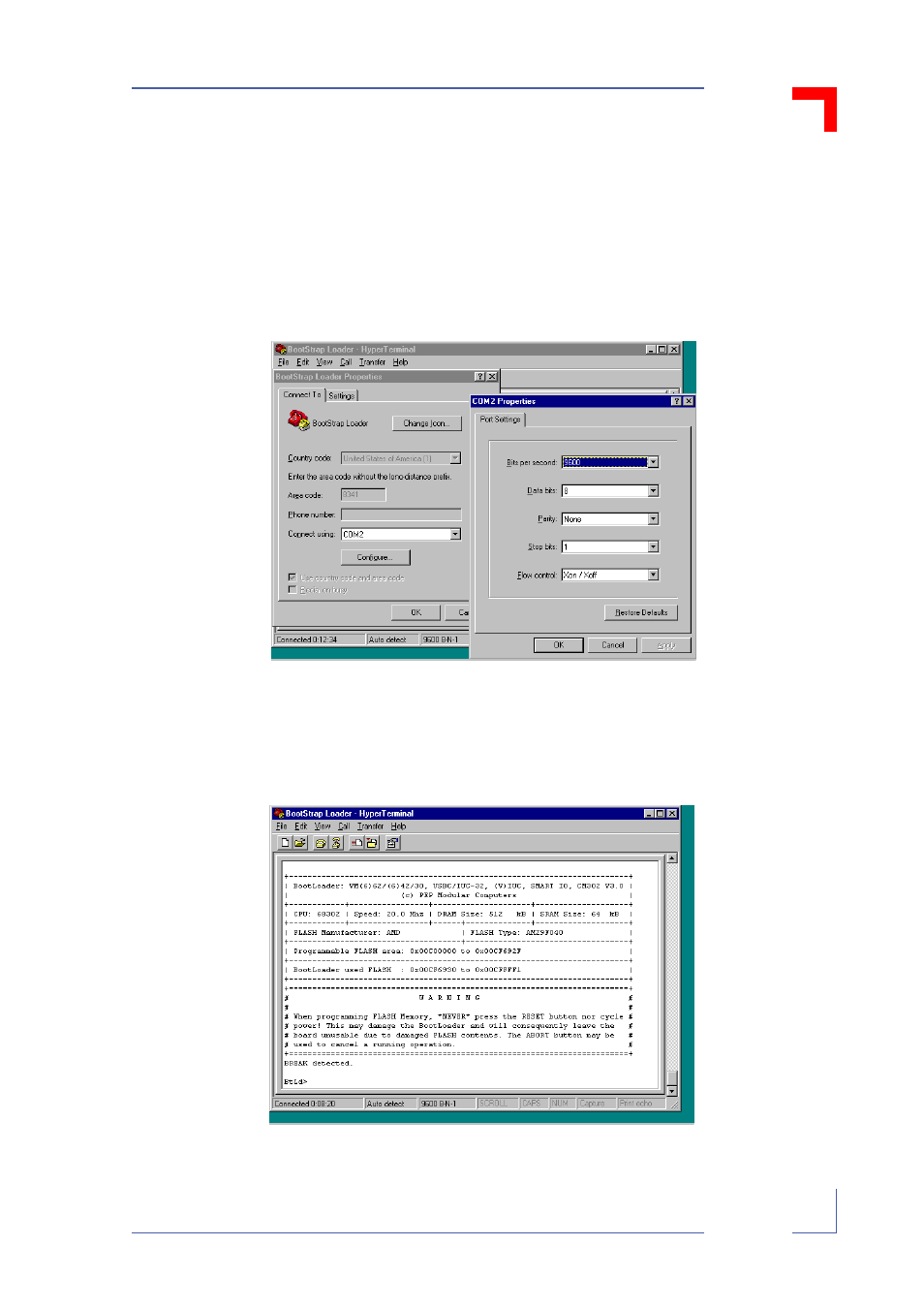

Figure 5-1: Setting of COM2 Properties
After entering the Command Mode the following screen should appear:
Figure 5-2: Screen after Entering the Command Mode
