VMP1 Functional Description
ID 19972, Rev. 0101 Page 2 - 13 ® PEP Modular Computers GmbH
2.4.3.4 PCI Expansion Connector and Pinout

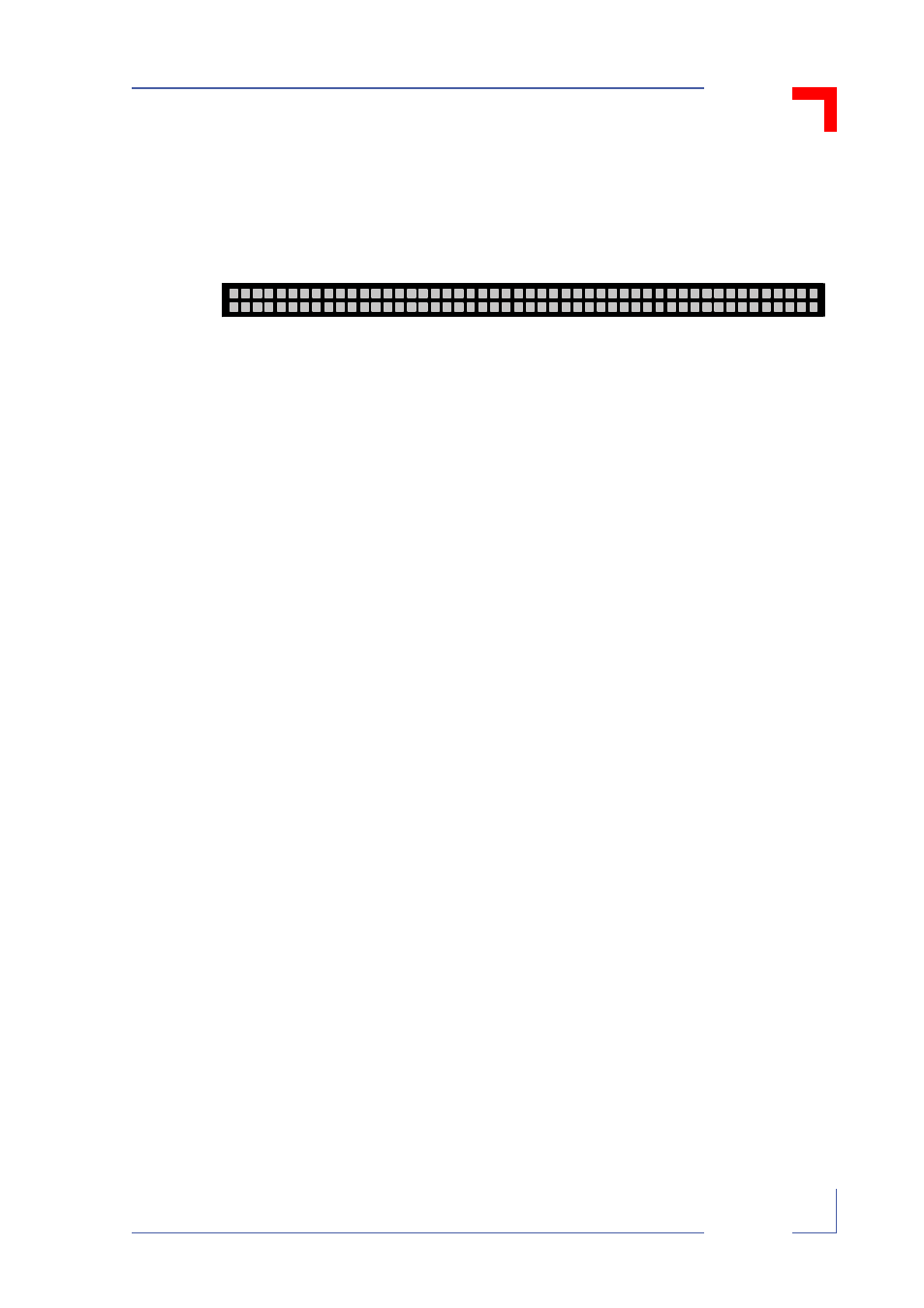

Figure 2-5: PCI Expansion Connector
The PCI Expansion Connector provides the possibility to mount several transition
boards above the VMP1 for adding special functionality which is not provided on the
VMP1 main board or on the VME bus. All the PCI signals of the onboard PCI bus will be
routed to this connector, so that a complete PCI bus is provided on this connector. In
addition, almost the same number of ground and power pins (3.3V and 5V) as are on a
CPCI P1 or PMC connector are provided. Examples of transition boards are:
• PMC carrier
• PC-MIP carrier
• IO board with Graphic interface, second Ethernet interface, SCSI etc.
A table showing the pinout of the PCI Expansion Connector
appears on the following page.
1
100
99
2
PCI EXPANSION CONNECTOR CON11
