VMP1 Optoisolation RS485 Module (Optional)
ID 19972, Rev. 0101 Page C - 3 ® PEP Modular Computers GmbH
Optoisolation RS485 Module (Optional)
Board description
On the VMP1 it is possible to utilize a transition module which provides optoisolated
RS485 functionality (half and full duplex).
Users who require an optoisolated version of the VMP1 are supplied with a customized
VMP1 on which the standard RJ45 connector is omitted and also with this module which
comes with a substitute RJ45 connector routed through optoisolation circuitry on the
module.
The module has been designed so that it does not increase the board width, which
remains unchanged at 4TE with the module in place.

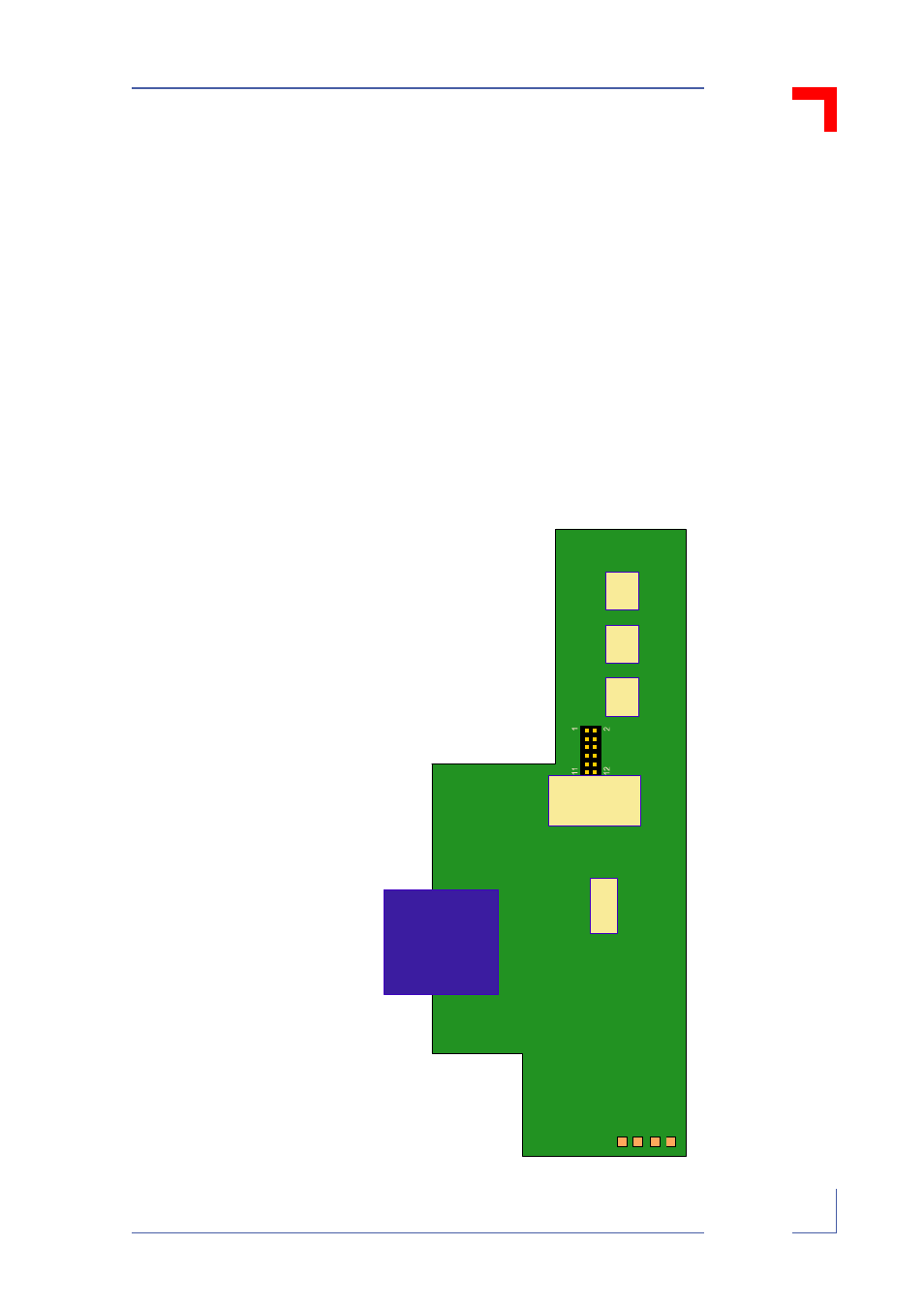

Figure C-1: View of underside of RS485 Module
CON6
RJ45
(Serial)
J1 J2
CON3
Please note that
this diagram is
not to scale with
other board
diagrams
