Carrier 48HJD005-007 - Manual (Page 36)

36

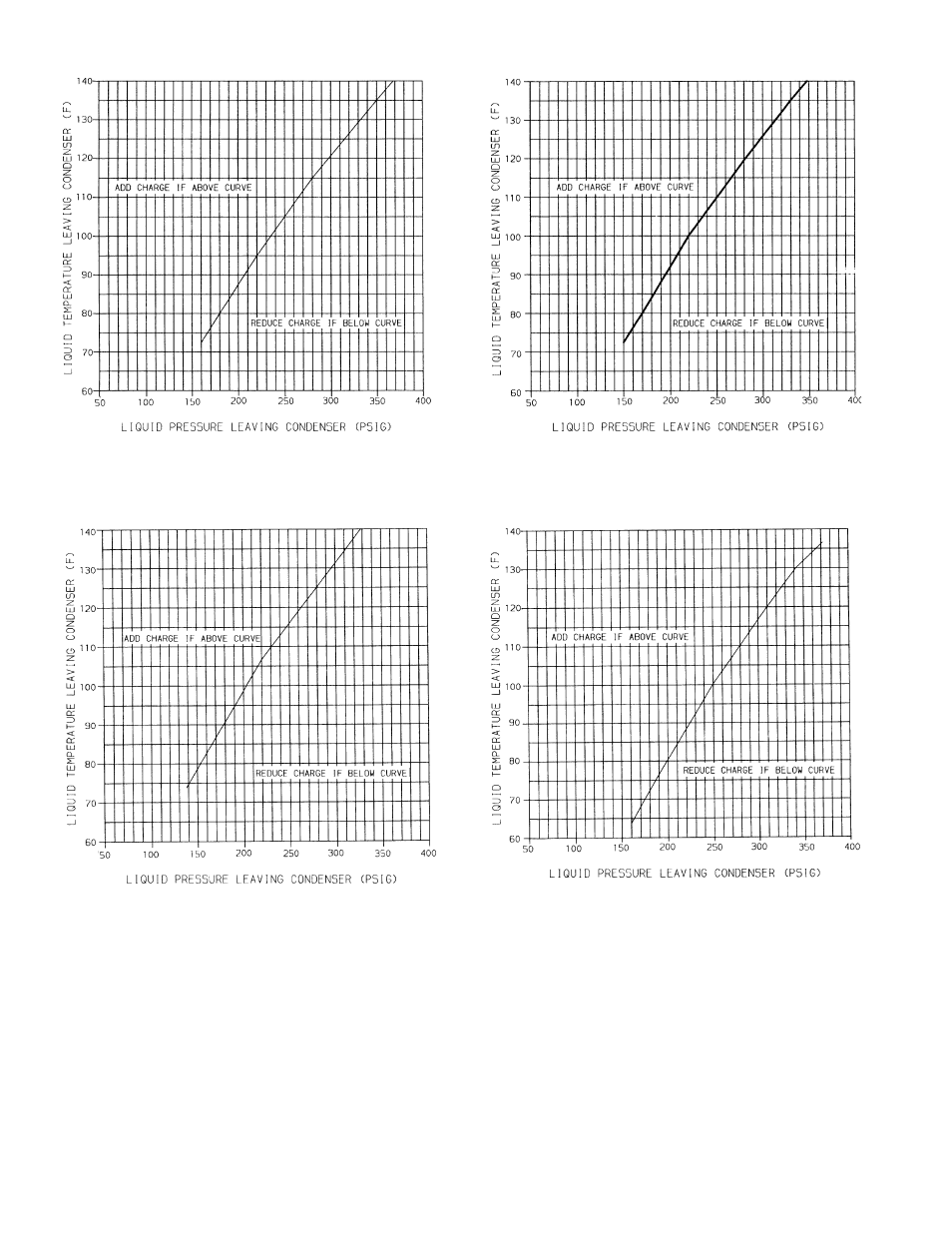

Fig. 48 — Cooling Charging Chart, 48HJ004 with
Optional MoistureMiser Dehumidification Package
Fig. 49 — Cooling Charging Chart, 48HJ005 with
Optional MoistureMiser Dehumidification Package
Fig. 50 — Cooling Charging Chart, 48HJ006 with
Optional MoistureMiser Dehumidification Package
Fig. 51 — Cooling Charging Chart, 48HJ007 with
Optional MoistureMiser Dehumidification Package
CONDENSER FAN MUST BE OPERATING CONDENSER FAN MUST BE OPERATING
CONDENSER FAN MUST BE OPERATING CONDENSER FAN MUST BE OPERATING
