Carrier 48HJD005-007 User Manual
Page 16
16
SEAL STRIP
SEAL STRIP
OUTDOOR AIR
HOOD TOP
SCREEN
RETAINER
OUTDOOR AIR
INLET
SCREENS
OUTDOOR AIR
HOOD SIDES
ASSEMBLED
EXHAUST HOOD
OUTDOOR AIR
OPENING
PANEL
ECONOMIZER
ECONOMIZER REAR
FLANGE
UNIT BASE
UNIT FILTER
RACK
ECONOMIZER CLIP
HVAC UNIT
WIRING
HARNESS
OUTDOOR
AIR
BLOCK-OFF
PLATE

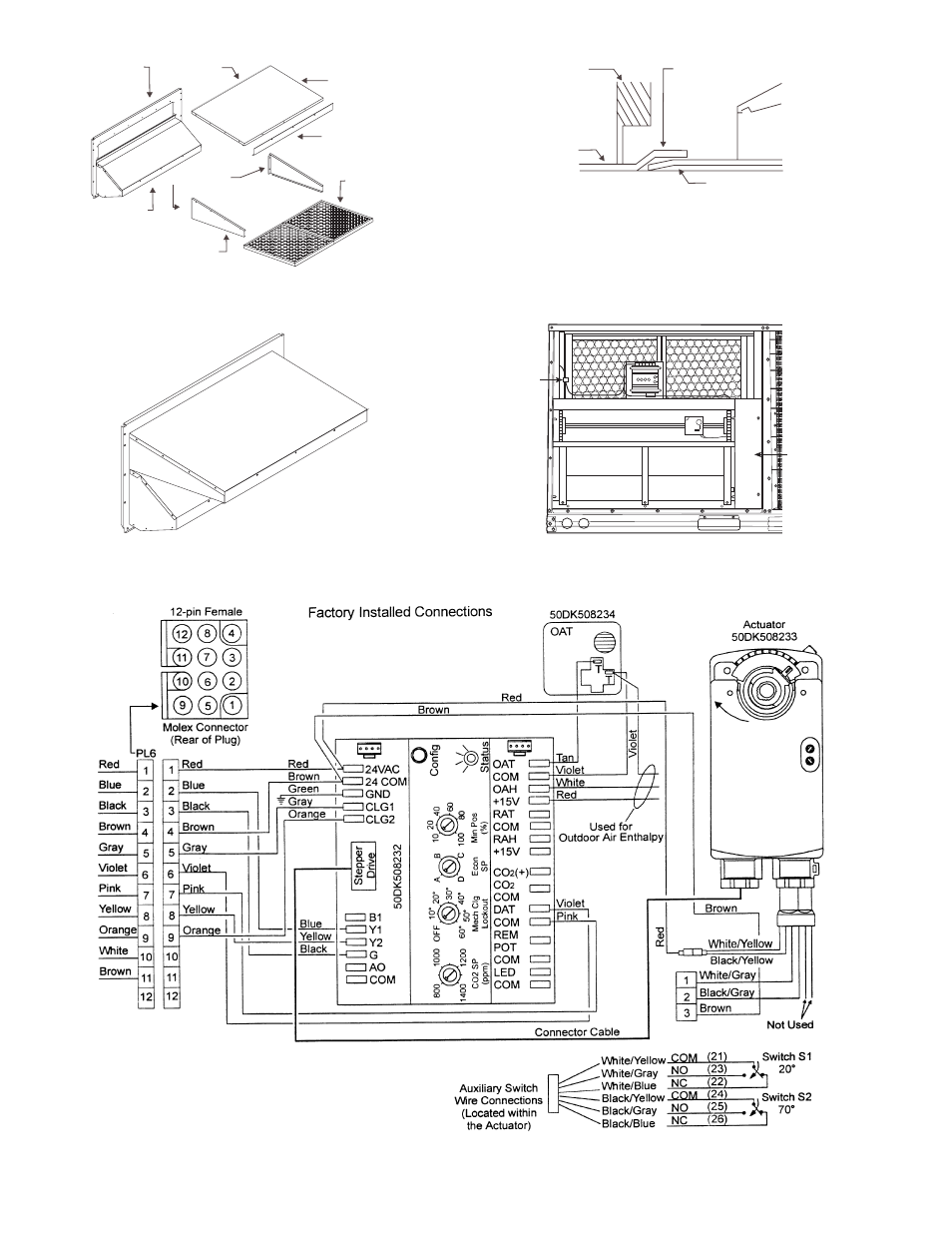

Fig. 26 — Outdoor-Air Hood Assembly
Fig. 27 — Completed Hood Assembly
Fig. 28 — Rear EconoMi$er Flange Installation
Fig. 29 — EconoMi$er Installed
Fig. 30 — EconoMi$er Wiring
LEGEND
OAT
—
Outdoor-Air Thermostat
