Detail #50, Step #50, Detail #49 – EFCO 955 Series User Manual

Page 37: Using butt glazed mullions, Step #49, Follow the glass setting procedure as shown in

Detail #50

JDA 9/2000

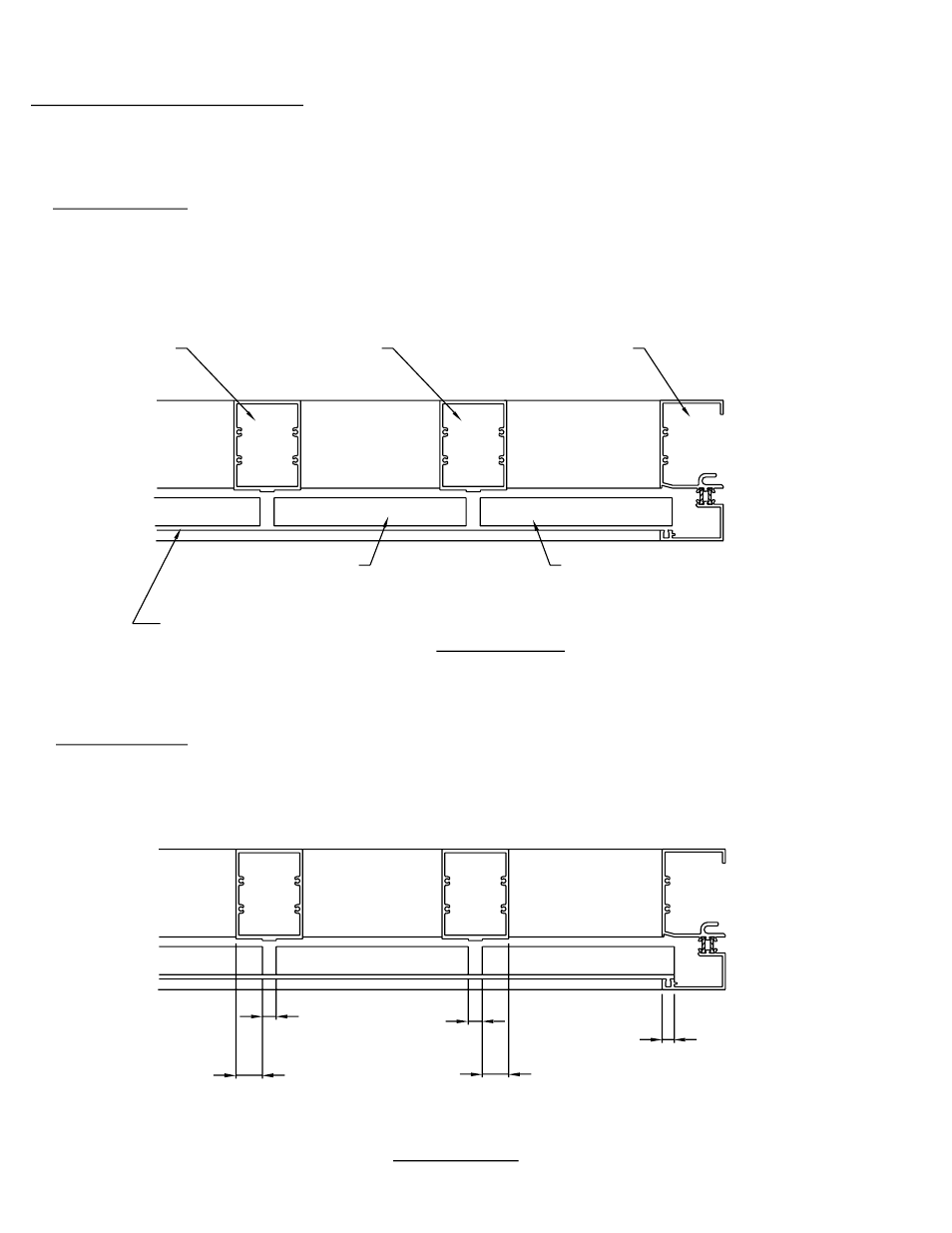

Position the glass units as shown in Detail #50 below maintain the
appropriate glass bite per mullion.

8663

1G68

EXTERIOR GLAZING GASKET

- LAST -

INSTALL THIS UNIT

STEP #50

WNB9 INSTALLED

Detail #49

- 2nd TO LAST -

INSTALL THIS UNIT

8663

1G68

8663

BUTT GLAZED

MULLION

BUTT GLAZED

MULLION

JAMB

Follow the glass setting procedure as shown in

USING BUTT GLAZED MULLIONS

Detail #50 below and Detail #51 on page #36.

STEP #49

CONT.

PAGE #35

SECTION VII - GLASS INSTALLATION

1/2"

GLASS

BITE

1/2"

GAP

15/16"

GLASS

BITE

15/16"

GLASS

BITE

1/2"

GAP
