Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

Intermediate

Horizontals

Unit Corner

Mullion

Section 8 - B. Inside 90° Corner Unit Frame Assembly

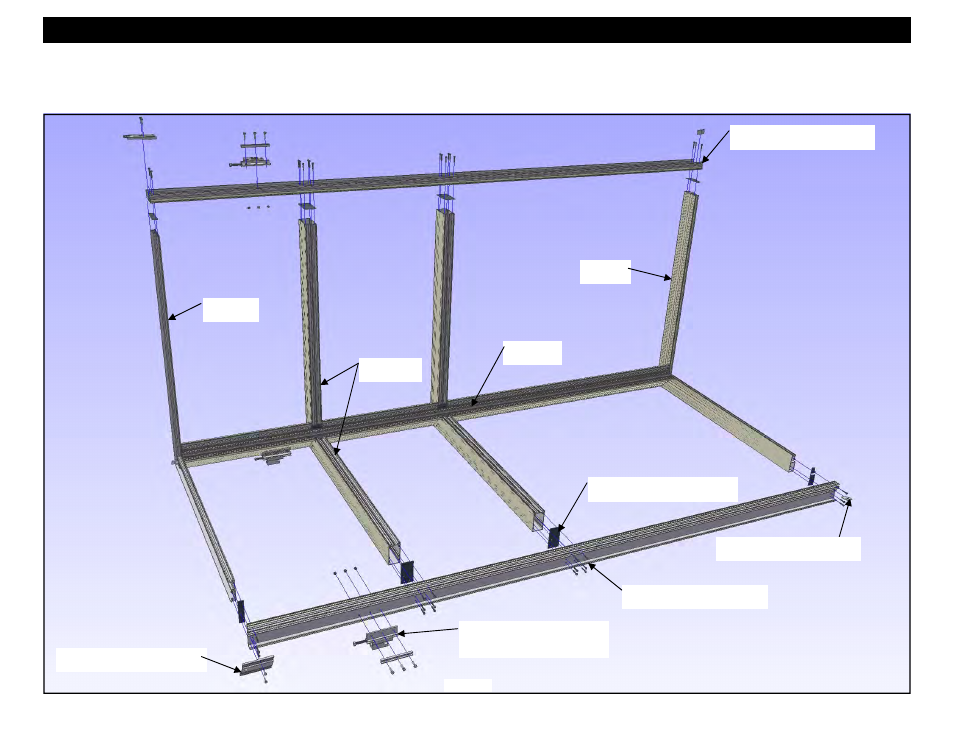

39. Attach the remaining framing members shown below. Refer to Volume 1 and Volume 2 of the S-8000 Unitized Curtain Wall Assembly Instructions for

assembly detail as noted.

Refer to Volume 1, Page 26 for

mullion gasket installation.

Figure 65

Refer to Volume 1, Page 27 - 28

for Frame Pad application.

Refer to Volume 1, Page

29 - 30 for “Z” clip installation.

Stack Head

Assembly

Stack Sill

Assembly

Refer to Volume 1, Page 32 - 33

for anchor assembly and

application.

Refer to Volume 1, Page 35 for
Mullion Splice Bar application.

Refer to Volume 1, Page 34 for

frame assembly.
