EFCO 2009

Page 14

Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

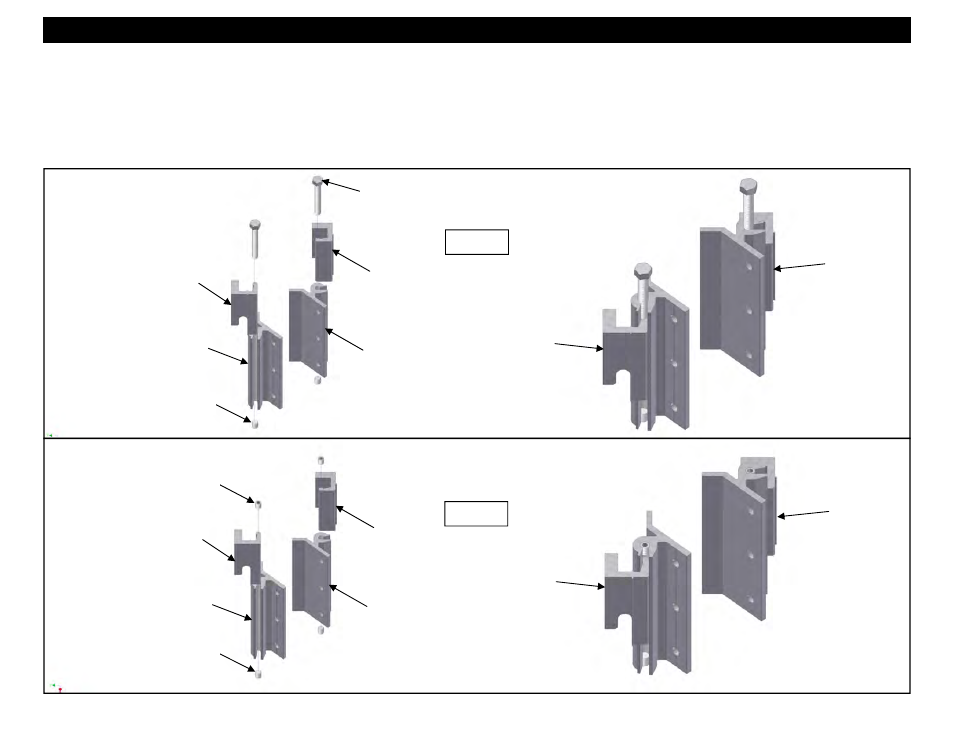

Section 8 - Inside 90° Corner Unit Frame Assembly : A. Mullion Subassembly

BOTTOM

M170 Socket Set Screw

(Set flush with bottom of FM08)

M169 Hex
Head Bolt

FM05 Hook
Anchor

FM06 Hook

Anchor

FM08 Mullion
Anchor

1. Assemble anchor kits by screwing in the M170 set screw into the bottom of the FM08 mullion anchors until the set screw is flush with the bottom of the

anchor. (Left and Right Hand Assemblies Required)

2. Slide the FM05 or FM06 hook anchor into the FM08 mullion anchor as shown in Figure 1 and 2. See END VIEW on page 15 for part orientation.
3. For the dead load anchor, screw a M169 hex head bolt into the top of the FM08 mullion anchor, half way into the anchor so that 1 3/4” of the bolt extends

from it. See Figure 29 below. For the wind load anchor, screw a M170 socket set screw in the top of the anchor, flush with the top of FM08 as shown in
Figure 30, below.

Figure 29

Figure 30

DEAD LOAD

ANCHOR

WIND LOAD

ANCHOR

LEFT HAND

ASSEMBLY

(KV06)

TOP

BOTTOM

RIGHT HAND

ASSEMBLY

(KV05)

LEFT HAND

ASSEMBLY

KV18

RIGHT HAND

ASSEMBLY

KV17

TOP

BOTTOM

FM08 Mullion

Anchor

M170 Socket Set Screw

(Set flush with top of FM08)

M170 Socket Set Screw

(Set flush with bottom of FM08)

FM05 Hook
Anchor

FM06 Hook

Anchor

FM08 Mullion
Anchor

FM08 Mullion

Anchor

TOP
