EFCO 2009

Page 11

Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

17H1 Stack
Head Assembly

Section 7 - B. Outside 90° Corner Unit Frame Assembly

20. Using an approved solvent or cleaner, clean the sealant contact surfaces of each end of the corner mullions and of the horizontals.
21. Seal the top of the corner mullion as shown in Figure 24 on page 12.
22. Attach the 17H1 stack head assembly and lifting lug to the top of the corner mullion using (10) SFQ5 frame screws as shown below. See Figure 24 on page

12 for more detail.

23. Seal the bottom of the corner mullion as shown in Figure 26 on page 12.
24. Attach the 17H0 stack sill assembly to the bottom of the corner mullion using (10) SFQ5 frame screws as shown below. See Figure 26 on page 12 for more

detail.

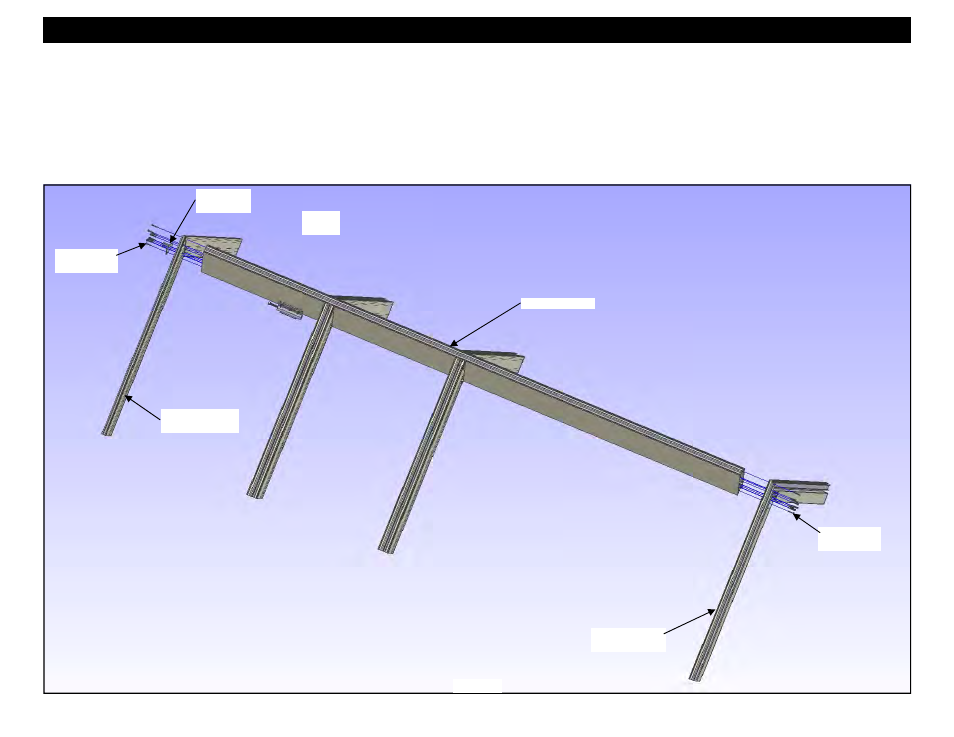

Figure 23

FM21 Unit
Lifting Lug

SFQ5 Frame

Screws

17H0 Stack Sill

Assembly

SFQ5 Frame

Screws

Corner Mullion

Top of

Mullion
