EFCO 2009

Page 15

Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

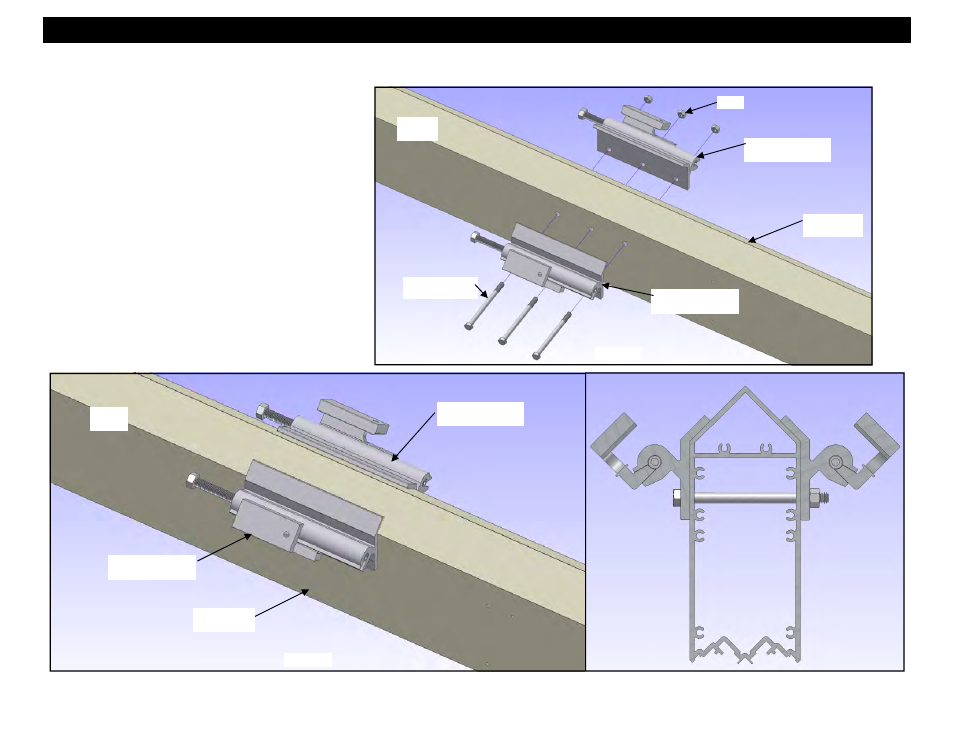

4. Apply the mullion anchor assemblies to the unit

corner mullions. Insert (3) bolts (3/8”-16 x 4 1/2”
HX-MS 18-8) through the anchors and mullion.

5. Use right and left hand corner anchor assemblies

to orient the top of the anchors and mullion as
shown in Figure 32 and the END VIEW, and insert
the anchor over the bolts.

6. Secure the anchors with (3) 3/8”-16 nylon insert

stop nuts (M172).

Section 8 - Inside 90° Corner Unit Frame Assembly : A. Mullion Subassembly

END VIEW

Top of

Mullion

M172

Unit Corner
Mullion

3/8”-16 x 4 1/2”

HX-MS 18-8

Anchor Assembly

(KV06)

Unit Corner

Mullion

Top of

Mullion

Figure 32

Figure 31

Anchor Assembly

(KV05)

Anchor Assembly

(KV06)

Anchor Assembly

(KV05)
