EFCO 2009

Page 22

Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

Unit Corner

Mullion

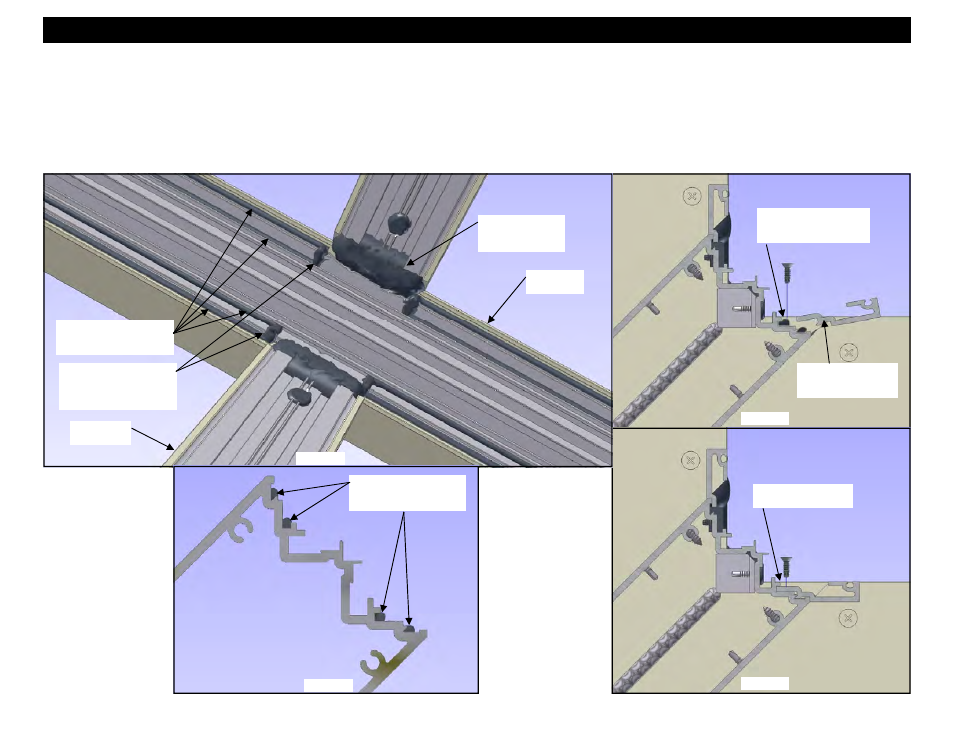

Section 8 - B. Inside 90° Corner Unit Frame Assembly

32. Using an approved solvent or cleaner, clean the sealant contact surfaces of the corner mullion and 17E9 adapter.
33. Apply continuous 1/8” diameter beads of sealant in the adapter reglets for the full height of each D.L.O. at the corner mullion. Seal across the corner mullion

at each end of where the adapters will be placed as shown in Figure 59. Butt seal the ends of the adapters with sealant prior to setting them into the opening.

34. Insert the 17E9 adapters into the reglets at the corner mullion and match drill the corner mullion through the holes provided in the adapter. Use a #33 drill

(.113 diameter.)

35. Attach the adapters with SFC7 (#6—18 x 3/8” PL-FH-SMS 18-8 A).

Figure 59

Intermediate

Horizontal

Sealed ends of
horizontal (see
Figure 47 on page

Seal across the corner

mullion at the horizontal

locations at each end of

the adapter as shown.

Apply continuous beads

of sealant in the adapter

reglets as shown.

Apply continuous beads
of sealant in the adapter
reglets as shown.

Figure 60

Figure 61

Figure 62

Insert adapters into the
reglets in the corner
mullion and match drill.

Attach adapters with
SFC7 fasteners.

Butt seal each end of
the adapters prior to
setting into opening.
