EFCO 2009

Page 18

Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

Section 8 - B. Inside 90° Corner Unit Frame Assembly

Intermediate

Horizontal

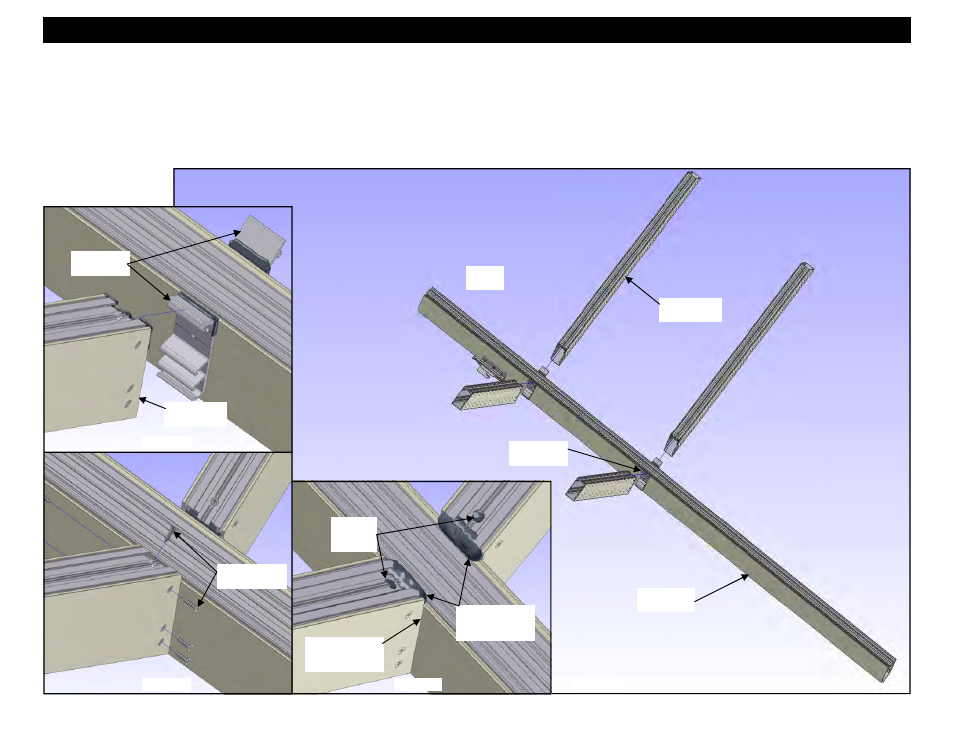

Figure 44

KV12 Shear

Blocks

STDO Shear
Block Screws

Remove excess

sealant from

horizontals.

13. Insert the horizontal onto the shear block and attach with (7) STD0 (1/4”-10 x 1” PL-FH-SMS 18-8 AB) fasteners per shear block. Note: The number and

locations of fasteners may vary. See Figures 44, 45, and 46

14. Seal the end of the horizontals where they project above the corner mullion as shown in Figure 47.
15. Remove all excess sealant from areas that will be exposed to the interior. See Figure 47.
16. Remove excess sealant from gasket reglets and areas where the isolator clips and adapters will later be inserted.
17. Cap seal the fastener at the face of the horizontals as shown in Figure 47.

Figure 45

Figure 46

Figure 47

Cap seal

fastener

heads.

Intermediate

Horizontal

KV12 Shear

Block

Unit Corner

Mullion

Top of

Mullion

Seal the ends of

horizontals to

the vertical.
