Series 8700 / 8800 Unitized Curtain Wall Installation Instructions - Volume 3

7. Apply shear blocks (KV12) for the intermediate horizontals to the unit corner mullion with (4) SM00 (1/4"-10 X 3/4 SL-HW-SMS ZC A) at each intermediate

horizontal location.

8. Attach a 1” x 1” alum. Angle caulk stop x 1” long to each end of the corner mullion with (1) STK4 fastener (#8-18 x 3/4” PL-FH-SMS 410 TEK 2).

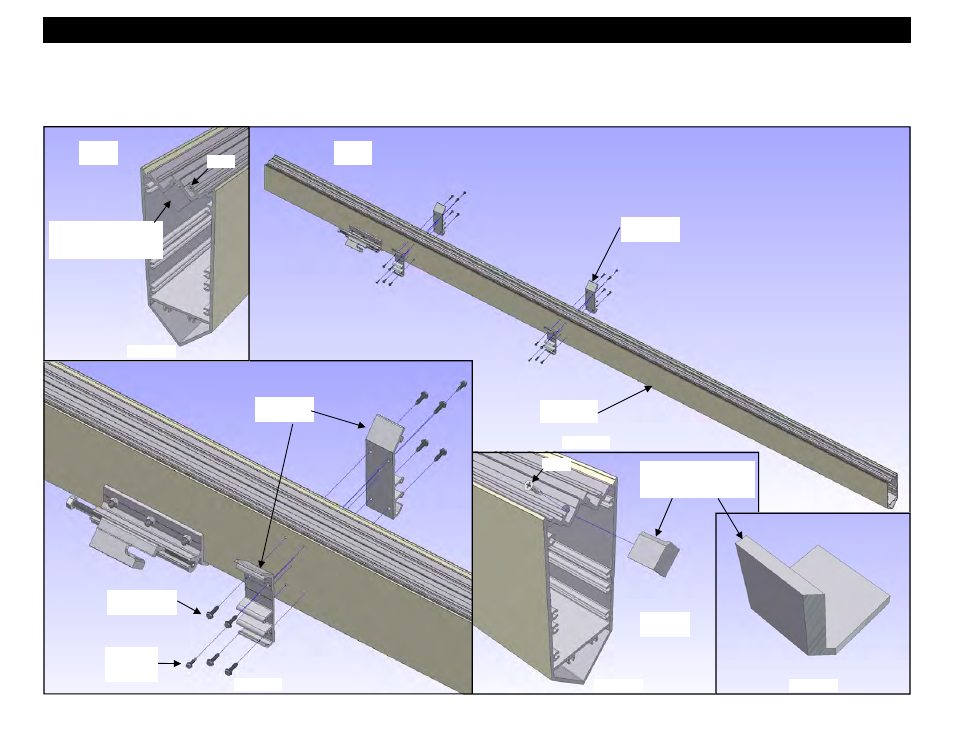

Section 8 - Inside 90° Corner Unit Frame Assembly : A. Mullion Subassembly

KV12 Shear
Block

Unit Corner

Mullion

Top of

Mullion

Figure 35

KV12 Shear

Blocks

SMOO Shear

Block Screws

STK3

Alignment

Screw

Figure 33

Figure 34

Figure 36

Figure 37

Top of

Mullion

Bottom of

Mullion

1” x 1” Alum. Angle x 1”

long attached to corner

mullion with (1) STK4

1” x 1” Alum. Angle x 1”

long attached to corner

mullion with (1) STK4

STK4

STK4
