EFCO 2009

Page 34

Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

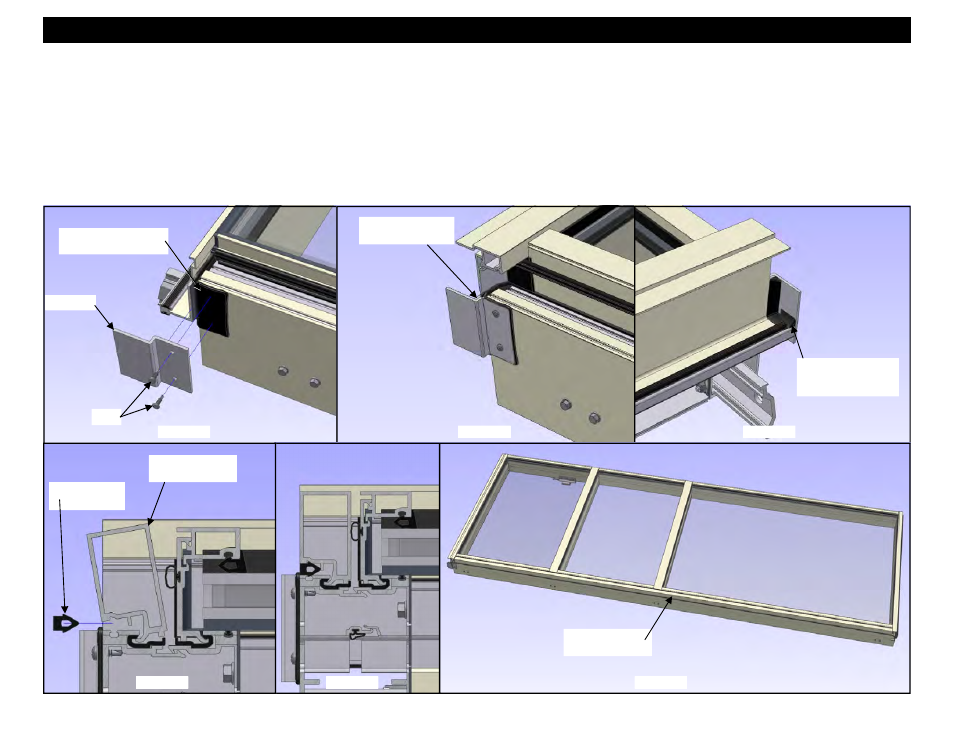

Section 6 - Captured Unit Glazing: E. Jamb Mullion Installation

5. Clean the end dam of all oils and contaminants and apply a bed of sealant to the jamb corresponding to where the end dam will be applied.
6. Before the sealant begins to cure or skin over from steps 1 and 2, apply the gutter end dam flush with the underside and notched face of the gutter with (2)

STT6 screws.

7. Apply a heavy bead of sealant where the top of the gutter and the inside of the end dam meet (See figure 104). Tool all of the sealant around the end dam

smooth.

8. Insert L142 isolator into the jamb mullion and roll on the 17H5 jamb mullion cover (See Figures 105 and 106). Center 17A9 between the gutter and the stack

sill glazing adapter with equal spacing on each end.

9. Drive in WVD1 wedge gasket between 17H5 and the jamb mullion (See Figures 105 and 106).

Figure 102

Figure 103

Figure 104

Figure 107

Figure 106

Figure 105

Tool sealant smooth,
blending it into the
adjacent surfaces.

Apply the end dam

flush with notch.

Apply a bed of sealant

for the end dam

End Dam

STT6

17H5 Jamb

Mullion Cover

WVD1 Wedge

Gasket

17H5 Jamb

Mullion Cover
