Series 8700 / 8800 Unitized Curtain Wall Assembly Instructions - Volume 2

Section 5 - SSG Unit Glazing: E. Jamb Mullion Installation

Figure 39

Figure 40

Figure 42

Figure 41

Figure 43

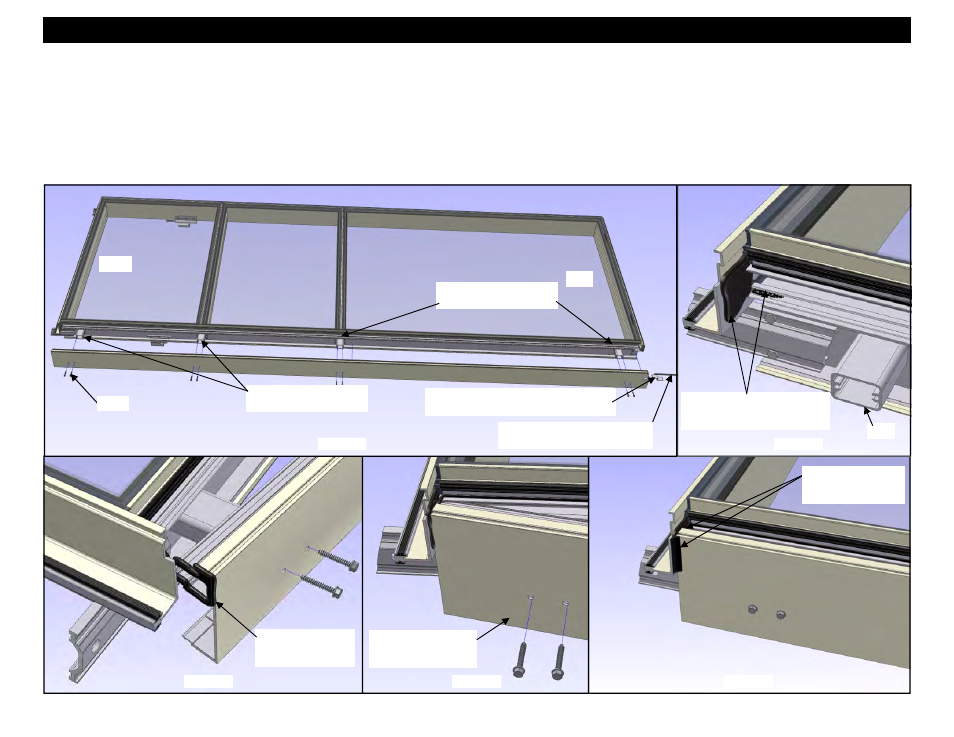

1. Clean the sealant contact surfaces on the underside of the gutter (Figure 40) and the top of the jamb (Figure 41) using an approved solvent or

cleaner. Apply a heavy bed of sealant to the underside of the gutter and onto the mullion stack leg of the assembled mullion as shown in Figure 40.

2. Apply a heavy bead of sealant to the jamb as shown in Figure 41.
3. Tilting the jamb at an angle as shown in Figures 41 and 42, mate the jamb and unit mullions beginning at the gutter end and rotating the jamb into place as

shown. Use clamps to snap together the jamb to the unit mullion. Light tapping with a glazing hammer will aid in snapping the mullions.

4. Secure the jamb mullion to the unit with SFQ5 fasteners into the 8806 spacers. Tool the sealant smooth as shown in Figure 43.

Apply a heavy bed of sealant
on the underside of the gutter
and onto the mullion stack leg.

8806 Spacer
(See Volume 1, Page 31).

SFQ5

8806 Spacer

(See Volume 1, Page 31).

Apply the “Z” clip to the vertical mullion

(See Volume 1, Pages 29 and 30.

Slide WC21 gasket into the jamb

mullion (See Volume 1, Page 26.

Tool sealant smooth,
blending it into the
adjacent surfaces.

Apply a heavy bead
of sealant to the end
of the jamb.

Insert the top of the

mullion first, mating it

with the unit mullion

SILL

HEAD

8806
